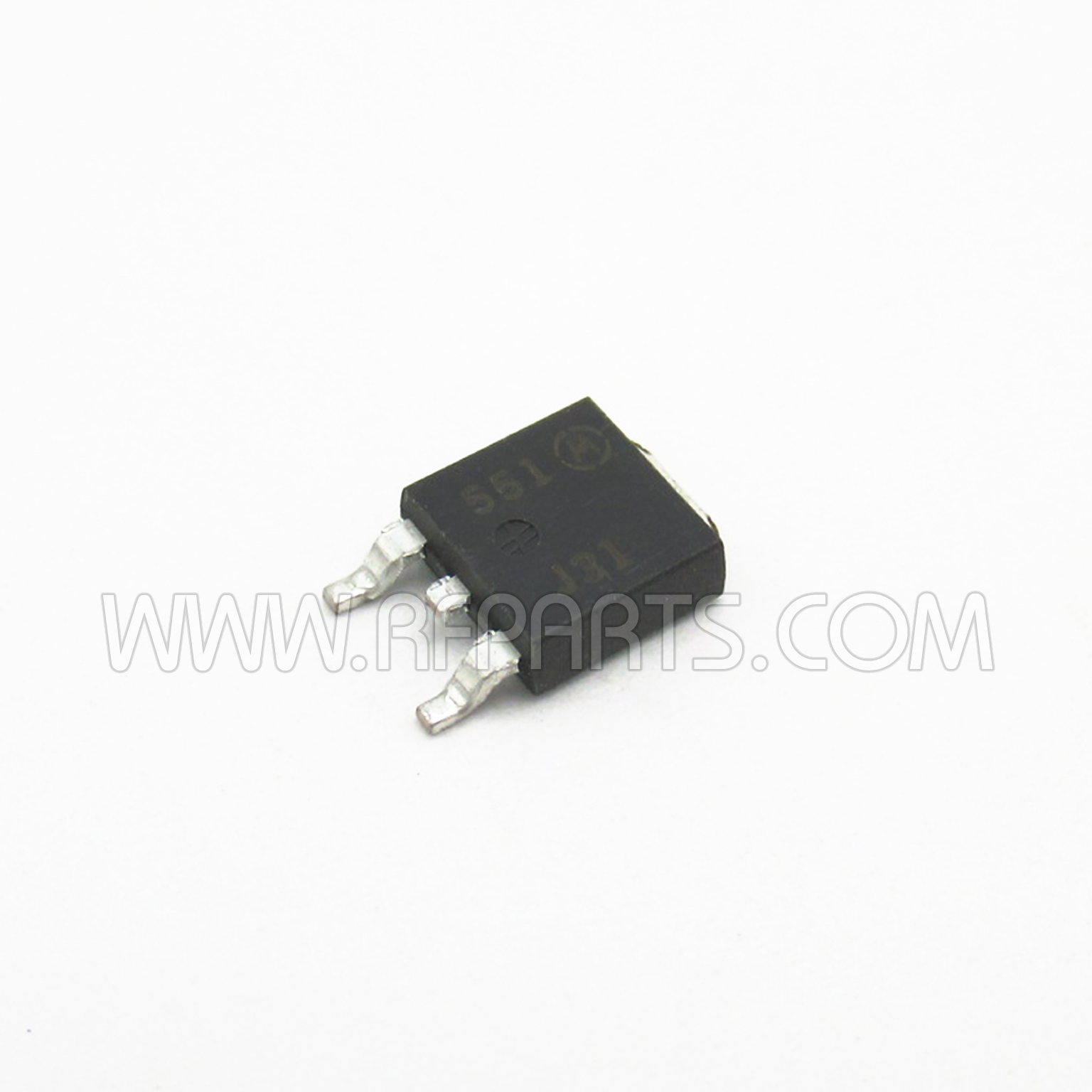

MJD31 Motorola Complementary Power Transistor 15W (NOS)
In Stock
$1.90
Designed for general purpose amplifier and low speed switching applications.
- Electrically Similar to Popular TIP31 and TIP32 Series
- Maximum Collector Power Dissipation (Pc): 15 W
- Maximum Collector-Base Voltage |Vcb|: 40 V
No longer available for export
MFR: Motorola
SKU: MJD31
Details
MJD31 Motorola Complementary Power Transistor 15W (NOS)
Designed for general purpose amplifier and low speed switching applications.
- Lead Formed for Surface Mount Applications in Plastic Sleeves (No Suffix)
- Straight Lead Version in Plastic Sleeves (“–1” Suffix)
- Lead Formed Version in 16 mm Tape and Reel (“T4” Suffix)
- Electrically Similar to Popular TIP31 and TIP32 Series
- Maximum Collector Power Dissipation (Pc): 15 W
- Maximum Collector-Base Voltage |Vcb|: 40 V
- Maximum Collector-Emitter Voltage |Vce|: 40 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 3 A
- Max. Operating Junction Temperature (Tj): 150 °C
- Transition Frequency (ft): 3 MHz
- Forward Current Transfer Ratio (hFE), MIN: 25
- Package: TO251
No longer available for export
MFR: Motorola
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Motorola |
