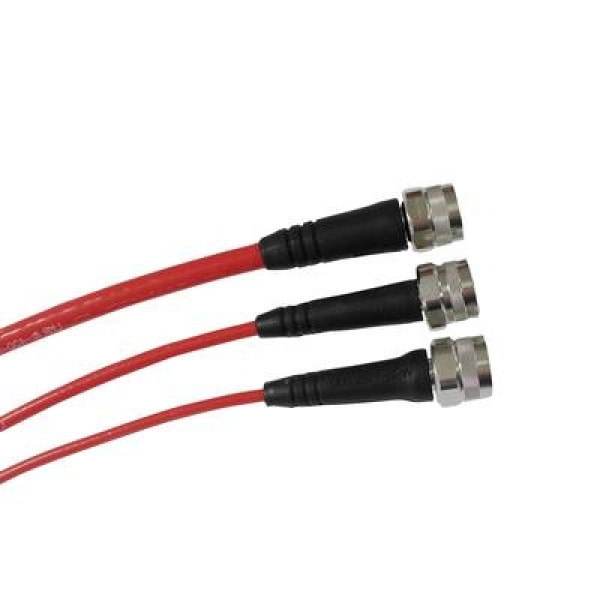

LMR®400-LLPX 3/8" Low Loss Plenum Red Jacket Coaxial Cable
In Stock
3/8" Low Loss Plenum Coax, Red Jacket
Minimum order 5 feet
MFR: Times Microwave Systems
SKU: LMR400-LLPX
(Special Order Only) allow 1-2 days for delivery)
LMR® is a registered trademark of Times Microwave Systems.
Details
LMR®400-LLPX 3/8" Low Loss Plenum Coax, Red Jacket
Minimum order 5 feet
Times Microwave Systems introduces an improved series of plenum cables, LMR-LLPX to replace the LMR-LLPL series. The new plenum rated LMR-LLPX series cables have a red fluoropolymer jacket and will provide the same attenuation as the orange PVC jacketed LMR-LLPL cables. The LMR-LLPX series cables accept all standard Times Microwave plenum connectors and can be prepped with the easy to use CST strip tools. The LMRLLPX series is offered in sizes 195 to 1200.
Features and Benefits
- Extended temperature range (-40°C to 125°C)
- Higher power handling
- Higher Oxygen Index jacket for improved plenum flame and smoke performance
- Lower coefficient of friction for easier installations
- Better cut-through and abrasion resistance
- Advanced chemical resistance and overall UV resistance
| General Specifications | |
|---|---|
| Impedance | 50 ohm |
| Weight | 0.021 lb/ft |
| Capacitance | 26.7 pF/ft |
| Tensile Strength | 40 lb |
| Electrical Specifications | |
| Velocity of Propagation | 76% |
| Dielectric | Low density PTFE |
| Bending Moment | 0.1 ft-lb |
| Outer Conductor | Aluminum Tape |
| Jacket | Orange FRPVC |
| Construction Specifications | |
| Inner Conductor | Solid BC |
| Overall Braid | Tinned Copper |
| Mechanical Specifications | |
| Band Radius: installation | 0.5 in |
| Bend Radius: Repeated | 2.0 in |
| Flat Plat Crush | 10 lb/in |
| Dielectric Constant | 1.73 NA |
| Time Delay | 1.34 nS/ft |
(Special Order Only) allow 1-2 days for delivery
MFR: Times MIcrowave Systems
LMR® is a registered trademark of Times Microwave Systems.
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Times Microwave |
