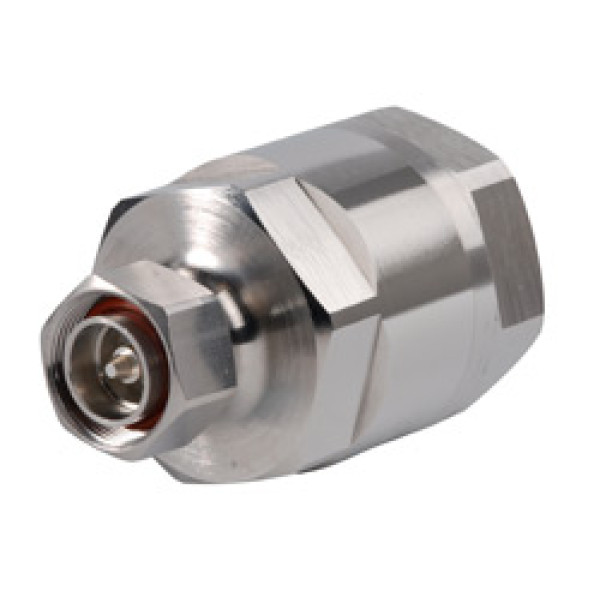

L7TDM-PS 7-16 DIN Male Positive Stop™ for 1-5/8" Heliax LDF7-50A cable, Andrew
In Stock
$179.95
L7TDM-PS 7-16 DIN Male Positive Stop™ for 1-5/8" Heliax LDF7-50A cable, MFR: Andrew
Details
L7TDM-PS 7-16 DIN Male Positive Stop™ for 1-5/8" Heliax LDF7-50A cable
MFR: Andrew
NOTE: Limited Quantity Available. This connector is no longer produced. New Old Stock.
| General Specifications | |
| Interface | 7-16 DIN Male |
| Body Style | Straight |
| Brand | HELIAX® | Positive Stop™ |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 2500 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -120 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 1415.00 V |
| dc Test Voltage | 4000 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.80 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 3.0 kW @ 900 MHz |
| Peak Power, maximum | 40.00 kW |
Insertion Loss, typical  |
0.05 dB |
| Shielding Effectiveness | -130 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Ring-flare |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Connector Retention Tensile Force | 2224 N | 500 lbf |
| Connector Retention Torque | 13.56 N-m | 120.00 in lb |
| Insertion Force | 200.17 N | 45.00 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 24.86 N-m | 220.00 in lb |
| Coupling Nut Retention Force | 1000.85 N | 225.00 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Dimensions | |
| Nominal Size | 1-5/8 in |
| Diameter | 62.61 mm | 2.47 in |
| Length | 97.99 mm | 3.86 in |
| Weight | 774.00 g | 1.71 lb |
| Environmental Specifications | |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Depth |
1 m |
| Immersion Test Mating | Unmated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Water Jetting Test Mating | Unmated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | MIL-STD-202F, Method 204D, Test Condition B |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 45–1000 MHz | 1.02 | 39.00 |
| 1010–2200 MHz | 1.03 | 38.00 |
| 2210–2500 MHz | 1.04 | 34.00 |
