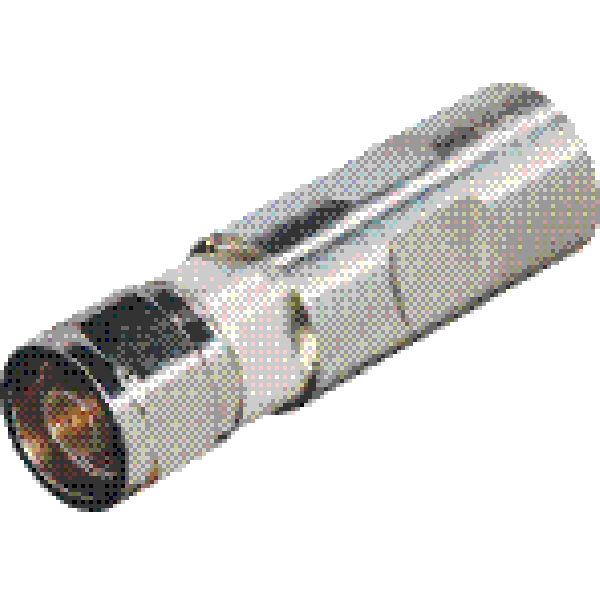

L4PNM-RC Andrew RingFlare™ Type N Male Connector for 1/2 in LDF4-50A Cable

In Stock

$27.91

L4PNM-RC Andrew RingFlare™ Type N Male Connector for 1/2 in LDF4-50A cable (NOS)

New Old Stock * No longer available for export
MFR: Andrew
SKU: L4PNM-RC

Details

L4PNM-RC Andrew RingFlare™ Type N Male Connector for 1/2 in LDF4-50A Cable

General Specifications
Interface	N Male
Body Style	Straight
Brand	HELIAX® \| RingFlare™
Mounting Angle	Straight

Electrical Specifications
Connector Impedance	50 ohm
Operating Frequency Band	0 – 8800 MHz
Cable Impedance	50 ohm
3rd Order IMD, typical	-120 dBm @ 910 MHz
3rd Order IMD Test Method	Two +43 dBm carriers
RF Operating Voltage, maximum (vrms)	707.00 V
dc Test Voltage	2000 V
Outer Contact Resistance, maximum	0.30 mOhm
Inner Contact Resistance, maximum	2.00 mOhm
Insulation Resistance, minimum	5000 MOhm
Average Power	0.6 kW @ 900 MHz
Peak Power, maximum	10.00 kW
Insertion Loss, typical	0.05 dB
Shielding Effectiveness	-130 dB

Mechanical Specifications
Outer Contact Attachment Method	Ring-flare
Inner Contact Attachment Method	Captivated
Outer Contact Plating	Trimetal
Inner Contact Plating	Gold
Attachment Durability	25 cycles
Interface Durability	500 cycles
Interface Durability Method	IEC 61169-16:9.5
Connector Retention Tensile Force	890 N \| 200 lbf
Connector Retention Torque	5.42 N-m \| 48.00 in lb
Insertion Force	66.72 N \| 15.00 lbf
Insertion Force Method	MIL-C-39012C-3.12, 4.6.9
Pressurizable	No
Coupling Nut Proof Torque	19.91 N-m \| 176.25 in lb
Coupling Nut Retention Force	444.82 N \| 100.00 lbf
Coupling Nut Retention Force Method	MIL-C-39012C-3.25, 4.6.22

Dimensions
Nominal Size	1/2 in
Diameter	22.00 mm \| 0.87 in
Length	76.00 mm \| 2.99 in
Weight	242.00 g \| 0.53 lb
