L4PNF Andrew/CommScope Type-N Female Connector LDF4-50A
In Stock
$27.91

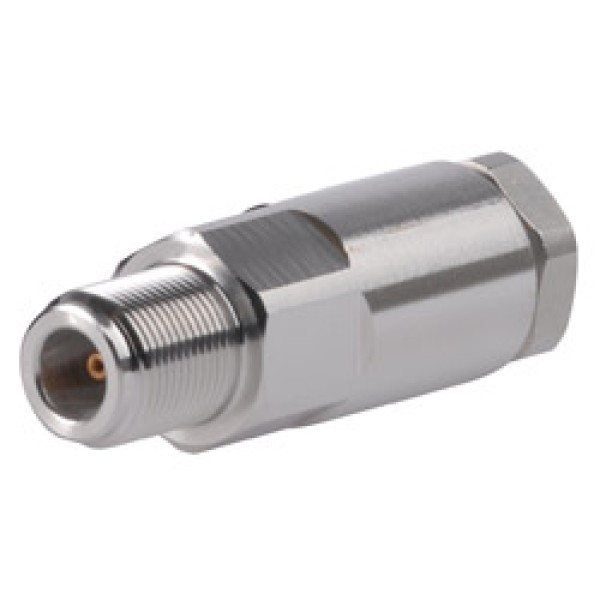

L4PNF Type N Female for 1/2 in LDF4-50A cable (Ring Flare)
MFR: Andrew/CommScope
SKU: L4PNF
Details
L4PNF Type N Female for 1/2 in LDF4-50A cable (Ring Flare)
MFR: Andrew
Limited Quantity Available. Obsolete (Replaced by L4TNF-PSA)
| General Specifications | |
| Interface | N Female |
| Body Style | Straight |
| Brand | HELIAX® |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 8800 MHz |
| Cable Impedance | 50 ohm |
| RF Operating Voltage, maximum (vrms) | 707.00 V |
| dc Test Voltage | 2000 V |
| Outer Contact Resistance, maximum | 0.30 mOhm |
| Inner Contact Resistance, maximum | 2.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 0.6 kW @ 900 MHz |
| Peak Power, maximum | 10.00 kW |
Insertion Loss, typical  |
0.05 dB |
| Shielding Effectiveness | -110 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Self-flare |
| Inner Contact Attachment Method | Solder |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Gold |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Connector Retention Tensile Force | 890 N | 200 lbf |
| Connector Retention Torque | 5.42 N-m | 48.00 in lb |
| Pressurizable | No |
| Dimensions | |
| Nominal Size | 1/2 in |
| Diameter | 22.86 mm | 0.90 in |
| Length | 66.04 mm | 2.60 in |
| Weight | 68.00 g | 0.15 lb |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Immersion Depth |
1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Mechanical Shock Test Method | MIL-STD-202, Method 213, Test Condition I |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | MIL-STD-202F, Method 204D, Test Condition B |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 45–880 MHz | 1.04 | 35.00 |
| 880–1800 MHz | 1.08 | 28.00 |
| 1800–5300 MHz | 1.12 | 25.00 |
| 5300–6200 MHz | 1.15 | 23.00 |
| 6200–7000 MHz | 1.22 | 20.00 |
| 7000–7900 MHz | 1.33 | 17.00 |
| 7900–8800 MHz | 1.5 | 14.00 |
