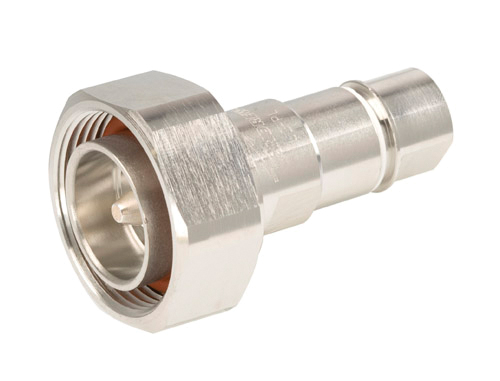

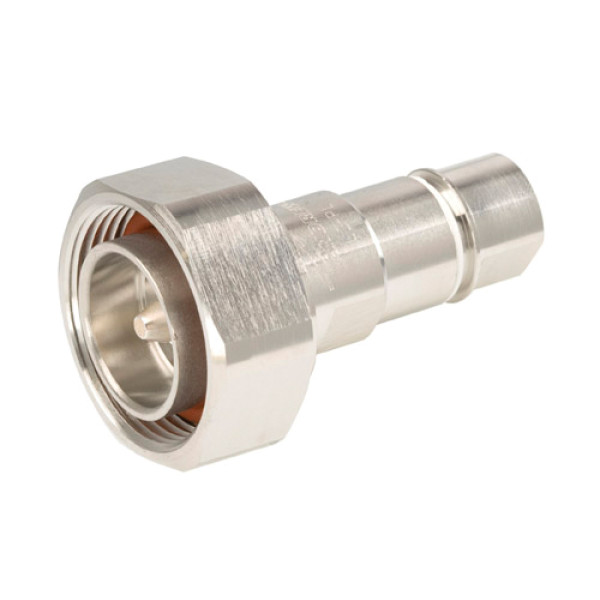

L2TDM-PL Andrew 7/16 DIN Male for LDF2-50 Cable
In Stock
$24.91
L2TDM-PL 7-16 DIN Male Positive Lock for 3/8 in LDF2-50 cable
MFR: Andrew
SKU: L2TDM-PL
Details
L2TDM-PL 7-16 DIN Male Positive Lock for 3/8 in LDF2-50 cable,
MFR: Andrew
| General Specifications | |
| Interface | 7-16 DIN Male |
| Body Style | Straight |
| Brand | HELIAX® |
| Mounting Angle | Straight |
| |
|
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 10000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -107 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 894.00 V |
| dc Test Voltage | 2500 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.40 mOhm |
| Insulation Resistance, minimum | 10000 MOhm |
| Average Power | 0.7 kW @ 900 MHz |
| Peak Power, maximum | 15.60 kW |
Insertion Loss, typical  |
0.05 dB |
| Shielding Effectiveness | -110 dB |
| |
|
| Outline Drawing | |
 Click on image below to enlarge. |
|
| |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Ring-flare |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Connector Retention Tensile Force | 670 N | 151 lbf |
| Connector Retention Torque | 2.70 N-m | 1.99 ft lb |
| Insertion Force | 200.00 N | 44.96 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 35.00 N-m | 25.81 ft lb |
| Coupling Nut Retention Force | 1000.00 N | 224.81 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| |
|
| Dimensions | |
| Nominal Size | 3/8 in |
| Diameter | 34.60 mm | 1.36 in |
| Height | 34.60 mm | 1.36 in |
| Length | 51.20 mm | 2.02 in |
| Weight | 102.12 g | 0.23 lb |
| Width | 34.60 mm | 1.36 in |
