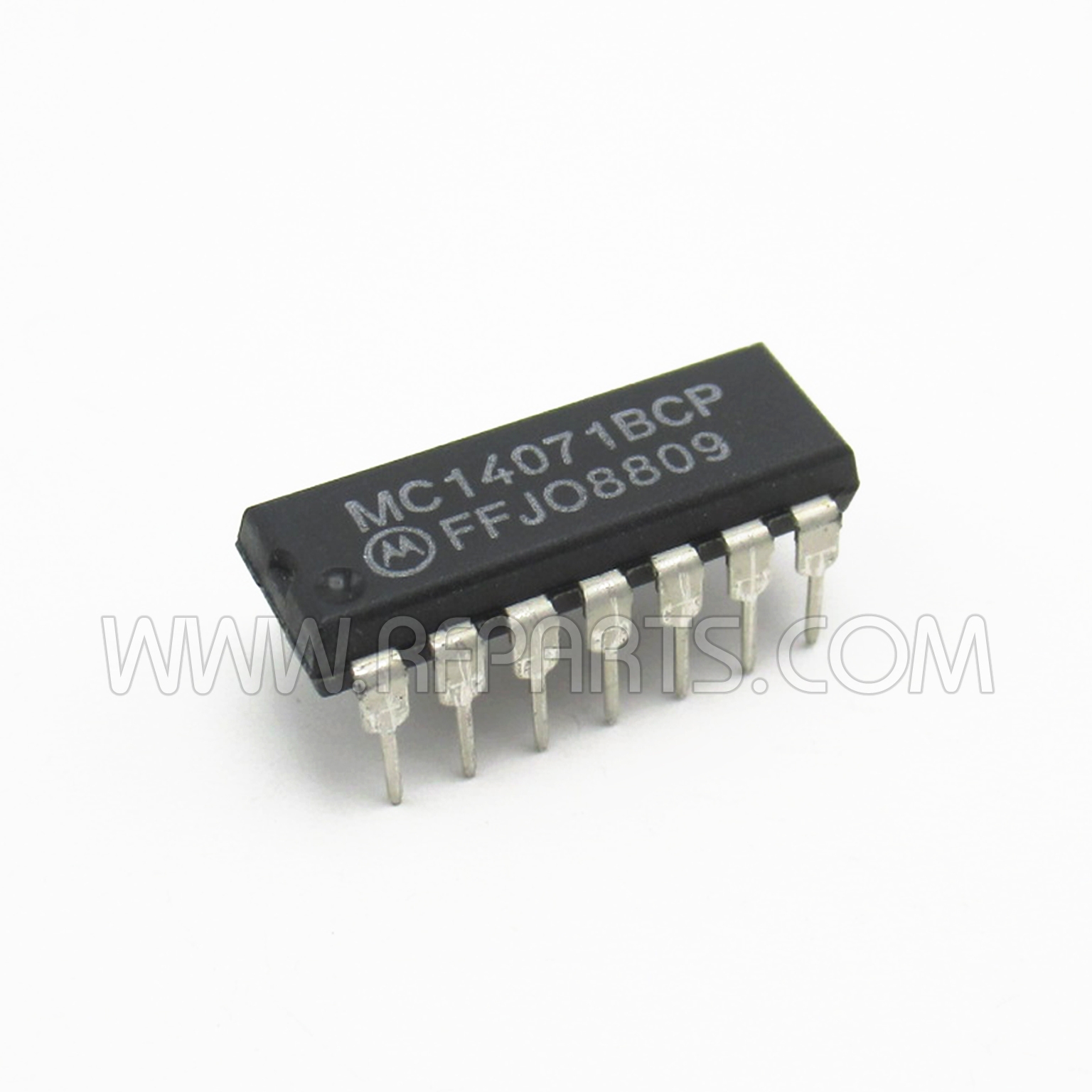

MC14071BCP Motorola B-Suffix Series CMOS Gates (NOS)
Out of stock
$0.91
The B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired.
New Old Stock * No longer available for export
MFR: Motorola
SKU: MC14071BCP
Details
MC14071BCP Motorola B-Suffix Series CMOS Gates (NOS)
The B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired.
- Logic Function: OR
- Number of Gates: 4 Gate
- Logic Family: MC140
- Number of Input Lines: 2 Input
- Package / Case: PDIP-14
- Number of Output Lines: 1 Output
- Low Level Output Current: 4.2 mA
- High Level Output Current: - 4.2 mA
- Propagation Delay Time: 300 ns
- Supply Voltage - Min: 3 V
- Supply Voltage - Max: 18 V
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Packaging: Tube
- Function: OR
- Height: 3.68 mm
- Length: 19.56 mm
- Logic Type: 2-Input OR
- Operating Supply Voltage: 3.3 V, 5 V, 9 V, 12 V, 15 V
- Product: Single-Function Gates
- Product Type: Logic Gates
- Quiescent Current: 1.5 nA
- Subcategory: Logic ICs
- Width: 6.6 mm
New Old Stock * No longer available for export
MFR: Motorola
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Motorola |
