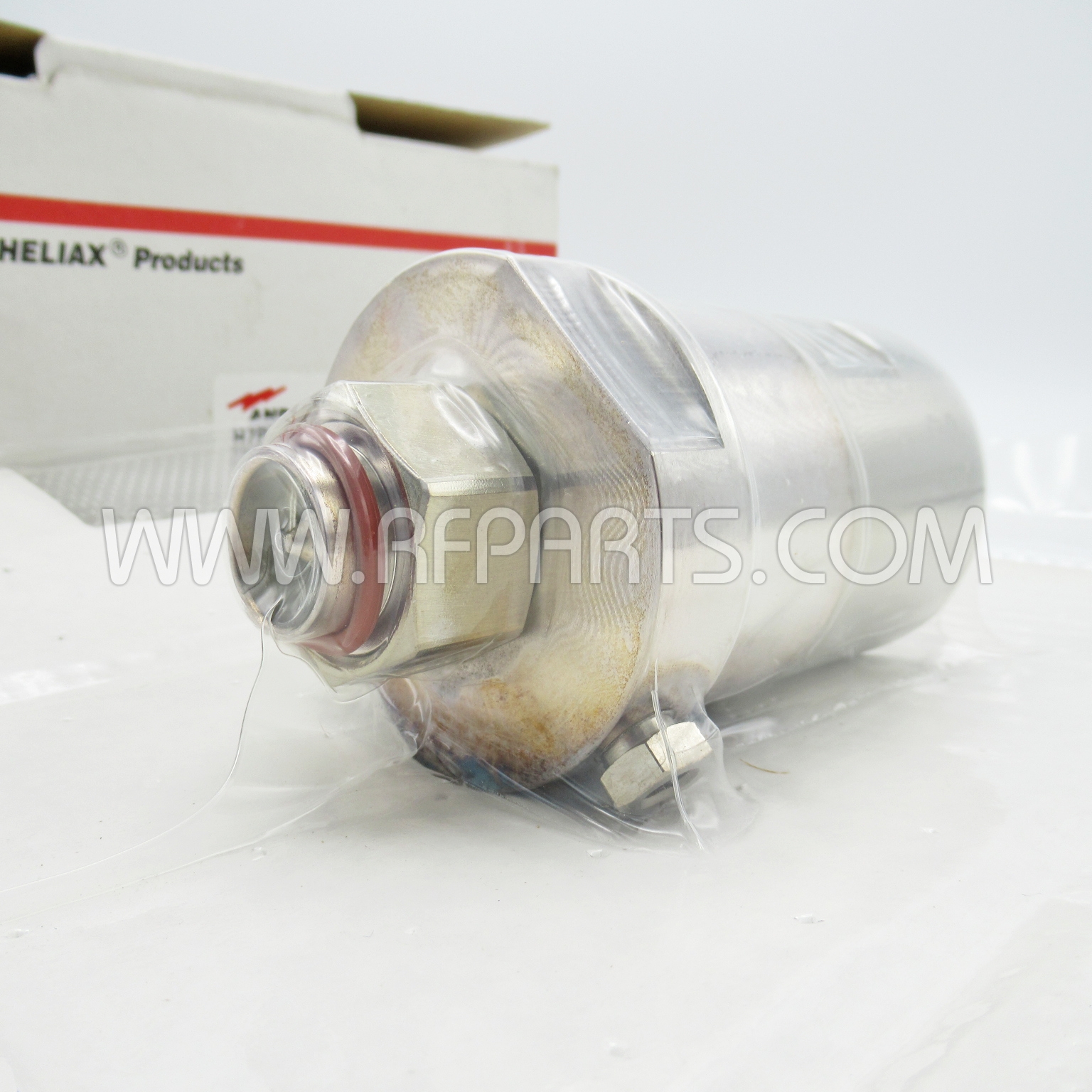

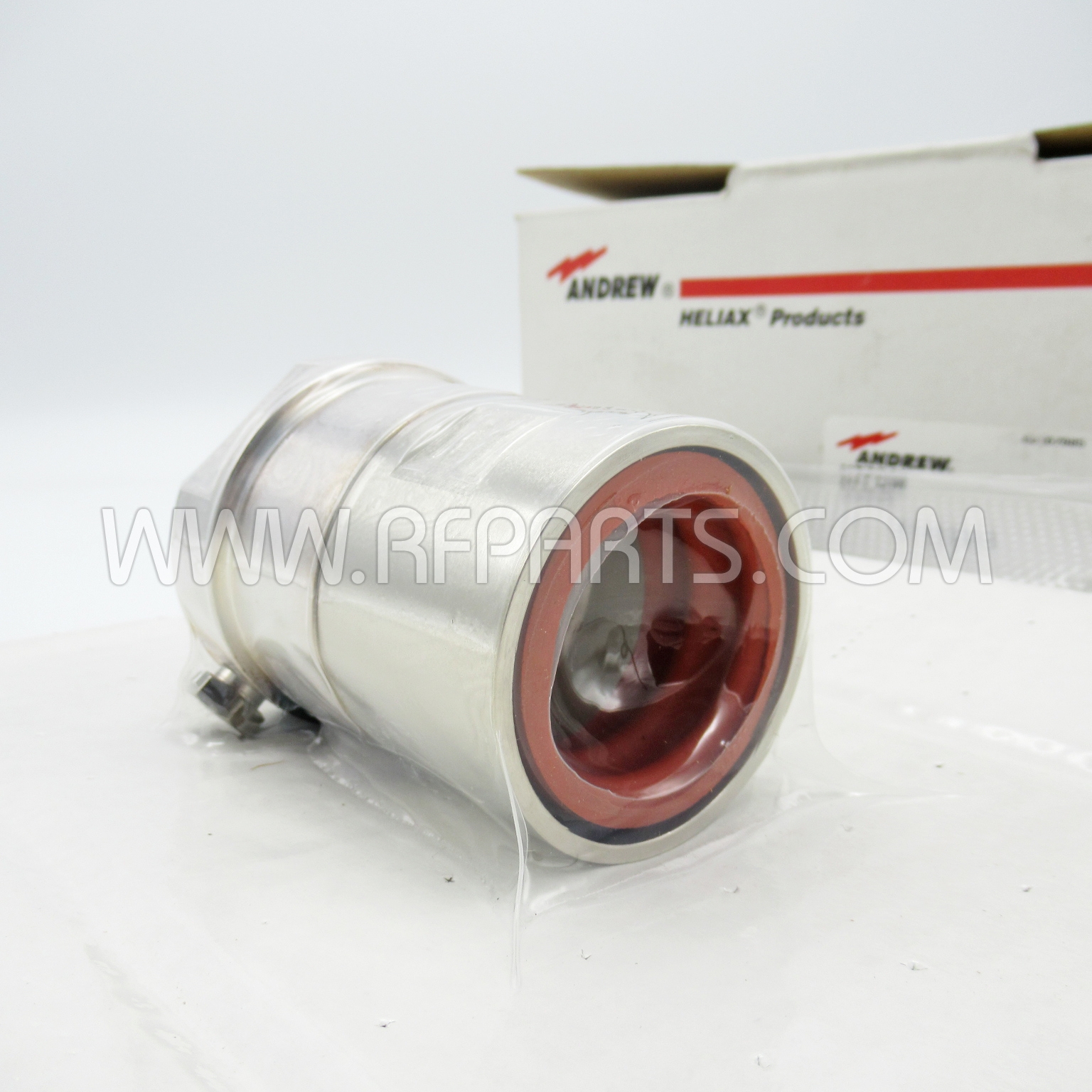

H7PDM Andrew Connector 7/16 DIN Male for HJ7-50 (NOS / NIB)
In Stock
H7PDM Andrew Connector 7-16 DIN Male with Gas Barrier for 1-5/8 in HJ7-50A Air Dielectric Cable (NOS / NIB)
New Old Stock / New In Box * No longer available for export
MFR: Andrew
SKU: H7PDM
Details
H7PDM Andrew Connector 7-16 DIN Male with Gas Barrier for 1-5/8 in HJ7-50A Air Dielectric Cable (NOS / NIB)
New Old Stock / New In Box * No longer available for export
Product Classification
Product Type: Air coaxial connector
Product Brand: HELIAX®
General Specifications
Body Style: Straight
Cable Family: HJ7-50A
Gas Barrier: Yes
Inner Contact Attachment Method: Thread-in stub
Inner Contact Plating: Silver
Interface: 7-16 DIN Male
Mounting Angle: Straight
Outer Contact Attachment Method: Tab-flare
Outer Contact Plating: Silver
Dimensions
Length: 4.47"

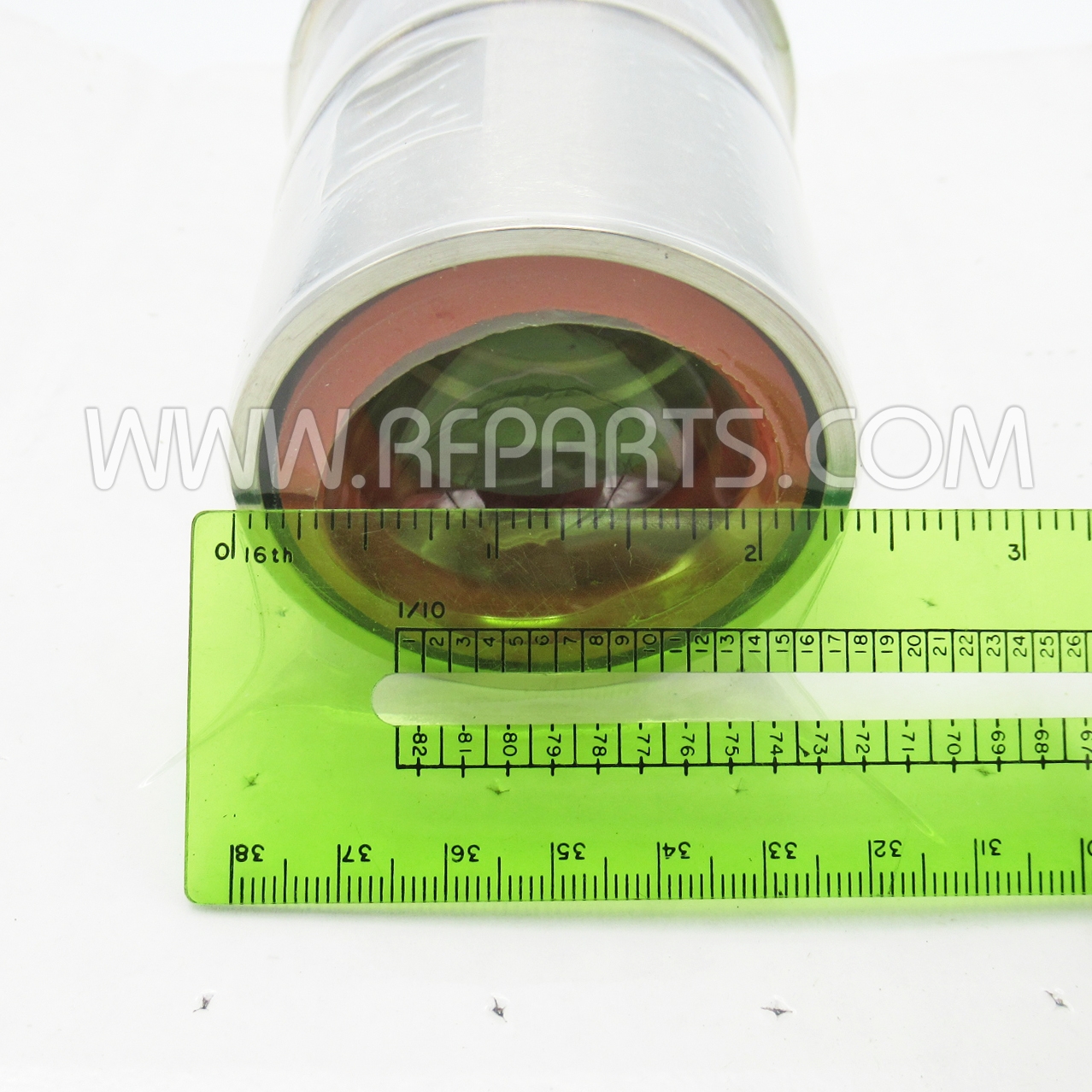

Diameter: 2.67"
Nominal Size: 1-5/8"
Electrical Specifications
Insertion Loss, typical: 0.05 dB
Average Power at Frequency: 3.0 kW @ 900 MHz
MFR: Andrew
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Andrew |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Andrew |
