SGL4-15B4 Andrew Sureground Grounding Kit for LDF4-50 Cable
In Stock
$28.91
- 60 inches
- 2 Hole Field Attached Lug
MFR: Andrew
SKU: SGL4-15B4
Details
SGL4-15B4 Andrew Sureground® Grounding Kit for LDF4-50 Cable
2 Hole Field Attached Lug
| Dimensions | |
| Nominal Size | 1/2 in |
| Bonding Conductor Length | 60.0 in (5 feet) |
| Cable Jacketing Removal Length, maximum | 59.1 mm | 2.3 in |
| Cable Jacketing Removal Length, minimum | 55.9 mm | 2.2 in |
| Compatible Diameter, maximum | 16.510 mm | 0.650 in |
| Compatible Diameter, minimum | 15.494 mm | 0.610 in |
| Electrical Specifications | |
| Current Handling | Tested to withstand 100,000 amps peak current surge |
| Current Handling Test Method | MIL-STD-1757 |
Grounding, Bonding and Shielding Test Method  |
MIL-STD-188-124A |
| Lightning Protection Test Method |
IEC 1024-1 |
| General Specifications | |
| Cable Type | Corrugated |
| Grounding Kit Type | SureGround™ Grounding Kits |
| Brand | SureGround™ |
| Color | Black |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Bonding Conductor Jacketing Material | PE |
| Grounding Strap Material | Copper |

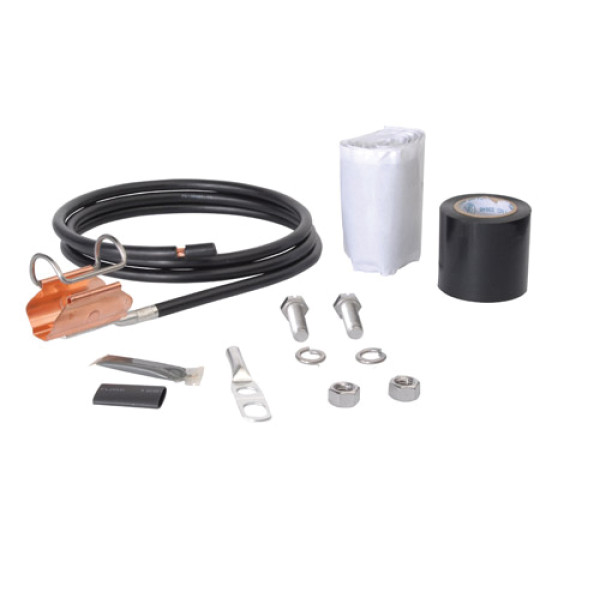

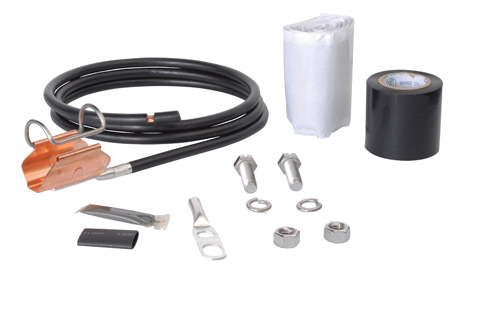

| Includes | Grounding kit | Hardware | Lug | One roll of 2 in PVC tape | One roll of 24 in butyl rubber tape |
| Locking Bail Material | Stainless steel |
| Lug Attachment | Factory attached |
| Lug Type | Two-hole lug |
| Package Quantity | 1 |
| Rivet Material | Copper |
| Weatherproofing Method | Butyl and electric tape |
