SG12-12B2U Andrew/CommScope Sure-Ground Grounding Kit for 1/2" LDF4-50A
In Stock
$26.90
SureGround® Grounding Kit for 1/2" Heliax coaxial cable, LDF4-50, FSJ4-50, HL4RP-50
MFR: Andrew/CommScope
SKU: SG12-12B2U
Details

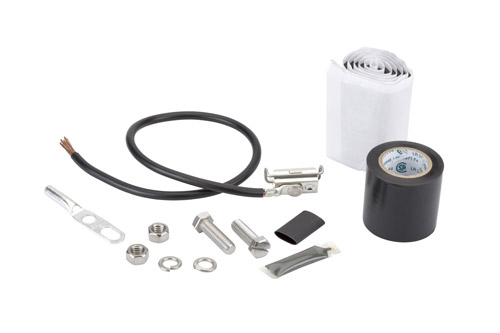

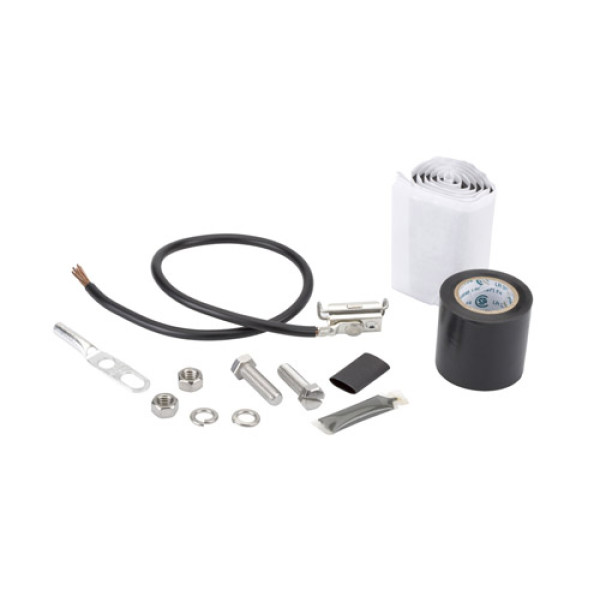

SG12-12B2U SureGround® Grounding Kit for 1/2 in coaxial cable LDF4-50, 1/2" Heliax Cable
MFR: Andrew/Commscope
The Sureground™ Grounding Kit is a one-piece factory assembled ground strap which includes a two-part tape weatherproofing system. The self-locking "Snap and lock" installation is ideal for tight cable bundles or crowded towers. Exclusive universal grounding lug can be fitted to a one- or two- hole earthing attachment point.
| Dimensions | |
| Nominal Size | 1/2 in |
| Bonding Conductor Length | 1219.2 mm | 48 in |
| Cable Jacketing Removal Length, maximum | 38.1 mm | 1 1/2 in |
| Cable Jacketing Removal Length, minimum | 38.1 mm | 1 1/2 in |
| Compatible Diameter, maximum | 16.510 mm | 0.650 in |
| Compatible Diameter, minimum | 15.494 mm | 0.610 in |
| Electrical Specifications | |
| Current Handling | Tested to withstand 100,000 amps peak current surge |
| Current Handling Test Method | MIL-STD-1757 |
Grounding, Bonding and Shielding Test Method  |
MIL-STD-188-124A |
| Lightning Protection Test Method |
IEC 1024-1 |
| General Specifications | |
| Cable Type | Corrugated | Smoothwall |
| Grounding Kit Type | SureGround™ Grounding Kits |
| Brand | SureGround™ |
| Color | Black |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Bonding Conductor Jacketing Material | PE |
| Grounding Strap Material | Tinned copper |
| Includes | Grounding kit | Hardware | Lug | One roll of 2 in PVC tape | One roll of 24 in butyl rubber tape |
| Locking Bail Material | Stainless steel |
| Lug Attachment | Field attached |
| Lug Type | Two-hole lug |
| Package Quantity | 1 |
| Rivet Material | Tinned copper |
| Weatherproofing Method | Butyl and electric tape |
| Mechanical Specifications | |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Thread Size | 3/8 in |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Packed Dimensions | |
| Height | 447.0 mm | 17.6 in |
| Length | 177.8 mm | 7.0 in |
| Shipping Weight | 0.59 kg | 1.30 lb |
| Width | 395.2 mm | 15.6 in |
