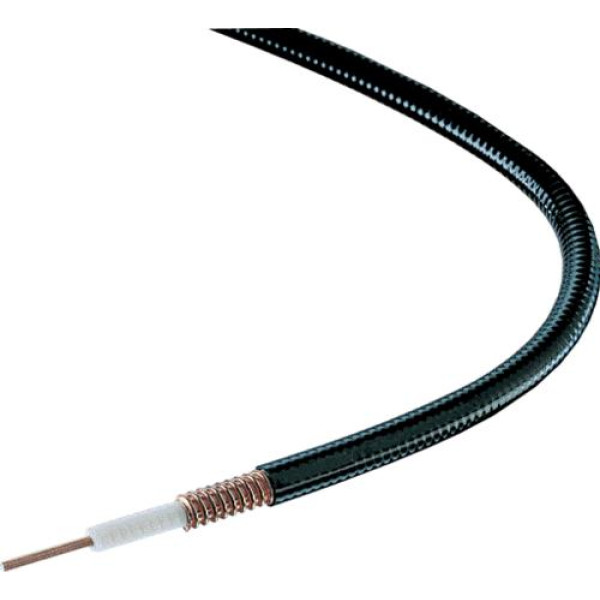

FSJ2-50 CommScope® / Andrew HELIAX® 3/8" Super Flexible Foam Coaxial Cable

FSJ2-50 CommScope® / Andrew HELIAX® 3/8" Super Flexible Foam Coaxial Cable

Sold by the foot - Minimum Order 5 Feet

Construction Materials
Jacket Material: PE
Outer Conductor Material: Corrugated copper
Dielectric Material: Foam PE
Flexibility: Super Flexible
Inner Conductor Material: Copperclad Aluminum Wire
Jacket Color: Black

Dimensions
Nominal Size: 3/8 in
Cable Weight: 0.08 lb/ft | 0.12 kg/m
Diameter Over Dielectric 7.112 mm | 0.280 in
Diameter Over Jacket 10.668 mm | 0.420 in
Inner Conductor OD: 2.7940 mm | 0.1100 in
Outer Conductor OD: 9.652 mm | 0.380 in

Electrical Specifications
Cable Impedance: 50 ohm ±1 ohm
Capacitance: 24.3 pF/ft | 79.7 pF/m
dc Resistance, Inner Conductor 1.290 ohms/kft | 4.232 ohms/km
dc Resistance, Outer Conductor 1.520 ohms/kft | 4.987 ohms/km
dc Test Voltage: 2300 V
Inductance: 0.200 μH/m | 0.061 μH/ft
Insulation Resistance: 100000 Mohms•km
Jacket Spark Test Voltage (rms): 4000 V
Operating Frequency Band: 1 – 13400 MHz
Peak Power: 13.2 kW
Pulse Reflection:1%
Velocity: 83%

All HELIAX coaxial cables are jacketed for direct burial or
for corrosive environmental conditions. Standard jacketing
material is weather-resistant polyethylene suitable for use
in extreme climates.
