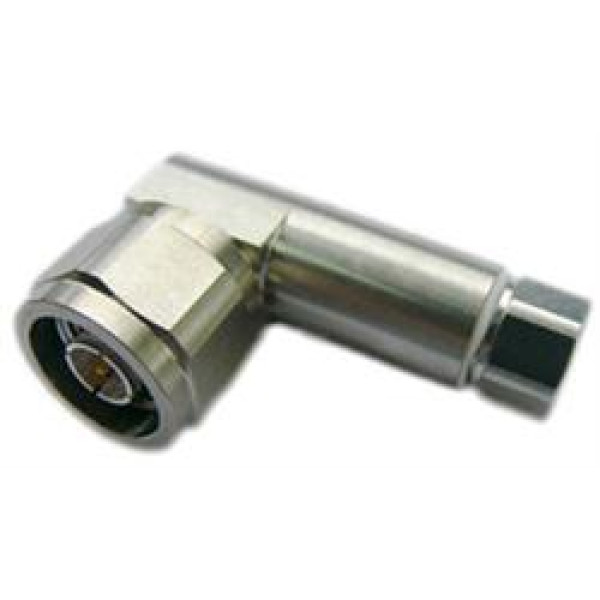

F1TNR-HC Right Angle Type-N Male Connector for FSJ1-50A Cable
MFR: Andrew / Commscope
| General Specifications | |
| Interface | N Male |
| Body Style | Right angle |
| Brand | HELIAX® |
| Mounting Angle | Right angle |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 6000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -112 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 565.00 V |
| dc Test Voltage | 1600 V |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| Inner Contact Resistance, maximum | 1.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 0.4 kW @ 900 MHz |
| Peak Power, maximum | 6.40 kW |
| Shielding Effectiveness | -110 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Self-clamping |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Gold |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Connector Retention Tensile Force | 450 N | 101 lbf |
| Connector Retention Torque | 1.40 N-m | 1.03 ft lb |
| Insertion Force | 124.55 N | 28.00 lbf |
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 1.70 N-m | 1.25 ft lb |
| Coupling Nut Proof Torque Method | IEC 61169-16:9.3.11 |
| Coupling Nut Retention Force | 445.00 N | 100.04 lbf |
| Coupling Nut Retention Force Method | IEC 61169-16:9.3.11 |
| Dimensions | |
| Nominal Size | 1/4 in |
| Diameter | 22.35 mm | 0.88 in |
| Height | 20.62 mm | 0.81 in |
| Length | 51.70 mm | 2.04 in |
| Weight | 78.65 g | 0.17 lb |
| Width | 32.90 mm | 1.30 in |
| Environmental Specifications | |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
Immersion Depth  |
1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Corrosion Test Method | IEC 60068-2-11 |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 824–960 MHz | 1.08 | 28.3 |
| 1710–1880 MHz | 1.12 | 24.94 |
| 1850–1990 MHz | 1.12 | 24.94 |
| 1910–2200 MHz | 1.14 | 23.69 |
| 2200–2700 MHz | 1.16 | 22.61 |
| 3000–5000 MHz | 1.18 | 21.66 |
| 5000–6000 MHz | 1.25 | 19.08 |
