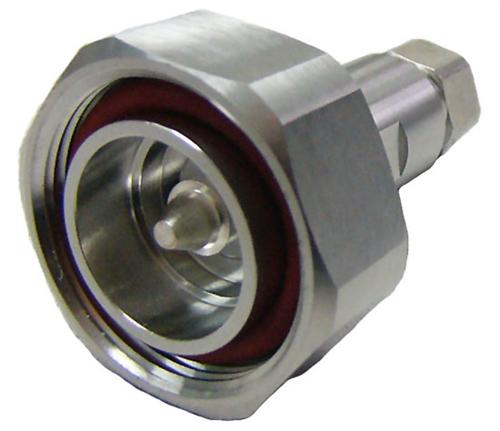

F1TDM-C 7/16 DIN Male Connector, FSJ1-50, Andrew
In Stock
$28.95
F1TDM-C 7/16 DIN Male Connector for 1/4 in FSJ1-50A cable (Good to 6 GHz), MFR: Andrew / Commscope
Details
Connector, 7-16 DIN Male for 1/4 in FSJ1-50A cable (Good to 6 GHz)
MFR: Andrew / Commscope
| General Specifications | |
| Interface | 7-16 DIN Male |
| Body Style | Straight |
| Brand | HELIAX® |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 6000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -112 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 565.00 V |
| dc Test Voltage | 1600 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.40 mOhm |
| Insulation Resistance, minimum | 10000 MOhm |
| Peak Power, maximum | 6.40 kW |
| Shielding Effectiveness | -110 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Andrew / Commscope |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Commscope |
