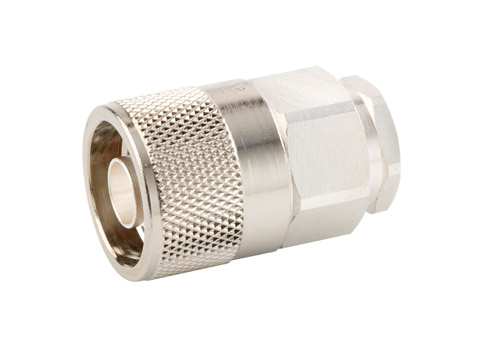

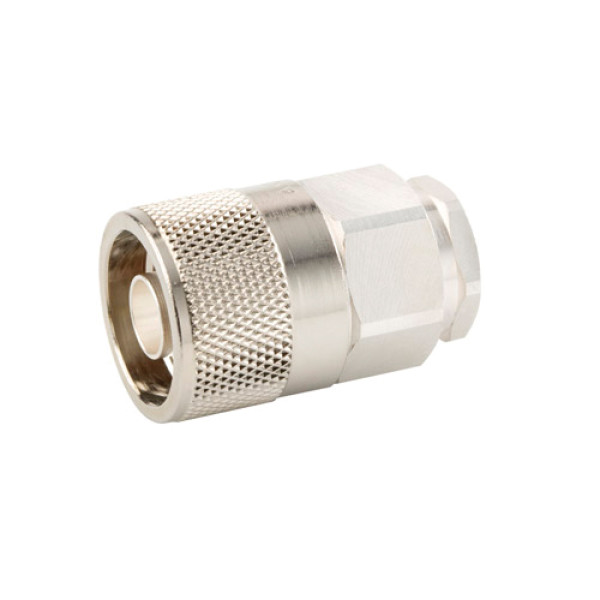

F1PNM-HF Andrew Type-N Male Connector for FSJ1-50 Cable (Good to 18 GHz)

F1PNM-HF Andrew Type-N Male Connector for FSJ1-50 Cable (Good to 18 GHz)

Electrical Specifications

• Connector Impedance: 50 ohm
• Operating Frequency Band: 0 – 18000 MHz
• Cable Impedance: 50 ohm
• RF Operating Voltage, maximum (vrms): 565.00 V
• dc Test Voltage: 1600 V
• Outer Contact Resistance, maximum: 0.25 mOhm
• Inner Contact Resistance, maximum: 1.00 mOhm
• Insulation Resistance, minimum: 5000 MOhm
• Average Power: 0.4 kW @ 900 MHz
• Peak Power, maximum: 6.40 kW
• Shielding Effectiveness: -110 d

Mechanical Specifications

• Outer Contact Attachment Method: Tab-flare
• Inner Contact Attachment Method: Solder
• Outer Contact Plating: Silver
• Inner Contact Plating: Gold
• Interface Durability: 500 cycles
• Interface Durability Method: IEC 61169-4:17
• Connector Retention Tensile Force: 450 N | 101 lbf
• Connector Retention Torque: 1.40 N-m | 1.03 ft lb
• Insertion Force: 124.55 N | 28.00 lbf
• Insertion Force Method: IEC 61169-16:9.3.5
• Pressurizable: No
• Coupling Nut Proof Torque: 1.70 N-m | 1.25 ft lb
• Coupling Nut Proof Torque Method: IEC 61169-16:9.3.11
• Coupling Nut Retention Force: 445.00 N | 100.04 lbf
• Coupling Nut Retention Force Method: IEC 61169-16:9.3.11

Dimensions

• Nominal Size: 1/4 in
• Diameter 20.24 mm | 0.80 in
• Height 20.24 mm | 0.80 in
• Length 33.32 mm | 1.31 in
• Weight 49.18 g | 0.11 lb
• Width 20.24 mm | 0.80 in

MFR: Andrew  / Commscope
