F1MU Andrew Mini-UHF Connector for 1/4" Superflex FSJ1-50
In Stock
$17.91

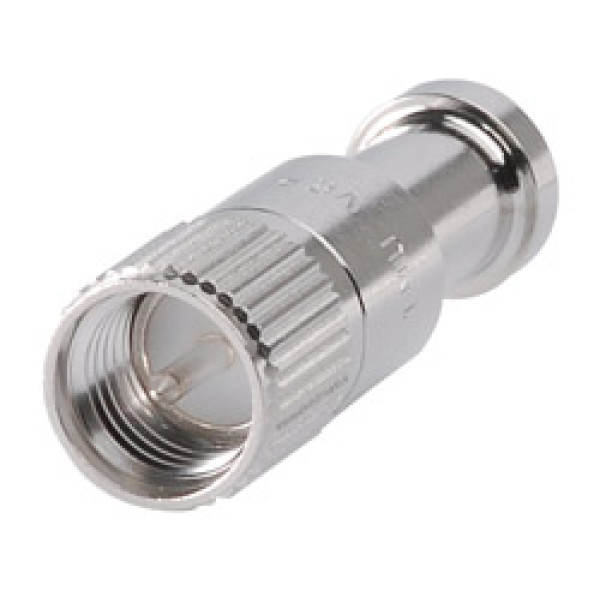

F1MU Andrew Mini-UHF Connector for 1/4" Superflex FSJ1-50
MFR: Andrew / Commscope
SKU: F1MU
Details
F1MU Andrew Mini-UHF Connector for 1/4" Superflex FSJ1-50
MFR: Andrew / Commscope
| General Specifications | |
| Interface | Mini UHF Male |
| Body Style | Straight |
| Brand | HELIAX® |
| Mounting Angle | Straight |
| |
|
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 1000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -112 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 0.4 kW @ 900 MHz |
| |
|
| Outline Drawing | |
 Click on image below to enlarge. |
|
| |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Crimp |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Connector Retention Tensile Force | 450 N | 101 lbf |
| Connector Retention Torque | 1.40 N-m | 1.03 ft lb |
| Pressurizable | No |
| |
|
| Dimensions | |
| Nominal Size | 1/4 in |
| Diameter | 11.68 mm | 0.46 in |
| Height | 11.68 mm | 0.46 in |
| Length | 37.71 mm | 1.48 in |
| Weight | 13.60 g | 0.03 lb |
| Width | 11.68 mm | 0.46 in |
| |
|
| Environmental Specifications | |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Corrosion Test Method | IEC 60068-2-11 |
| |
|
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Andrew / Commscope |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | ANDREW / COMMSCOPE |
