8897 Bird 2500 Watt Oil-Cooled RF Termination with BA-88 Series Blower (Pull)
Made in the USAIn Stock
Connector: Quick Connect 7/16 DIN Female
Power: 2500 Watts
Ohms: 50
Voltage: 115 VAC
Dimentions: 22-3/4" x 7-3/4" x 17-1/4" (577.85mm x 196.85mm x 438.15 mm)
Weight: 53.59lb (24.31kg)
Used * No longer available for export
MFR: Bird Electronics
SKU: 8897-BA88-P
Details
8897 Bird 2500 Watt Oil-Cooled RF Termination with BA-88 Series Blower (Pull)

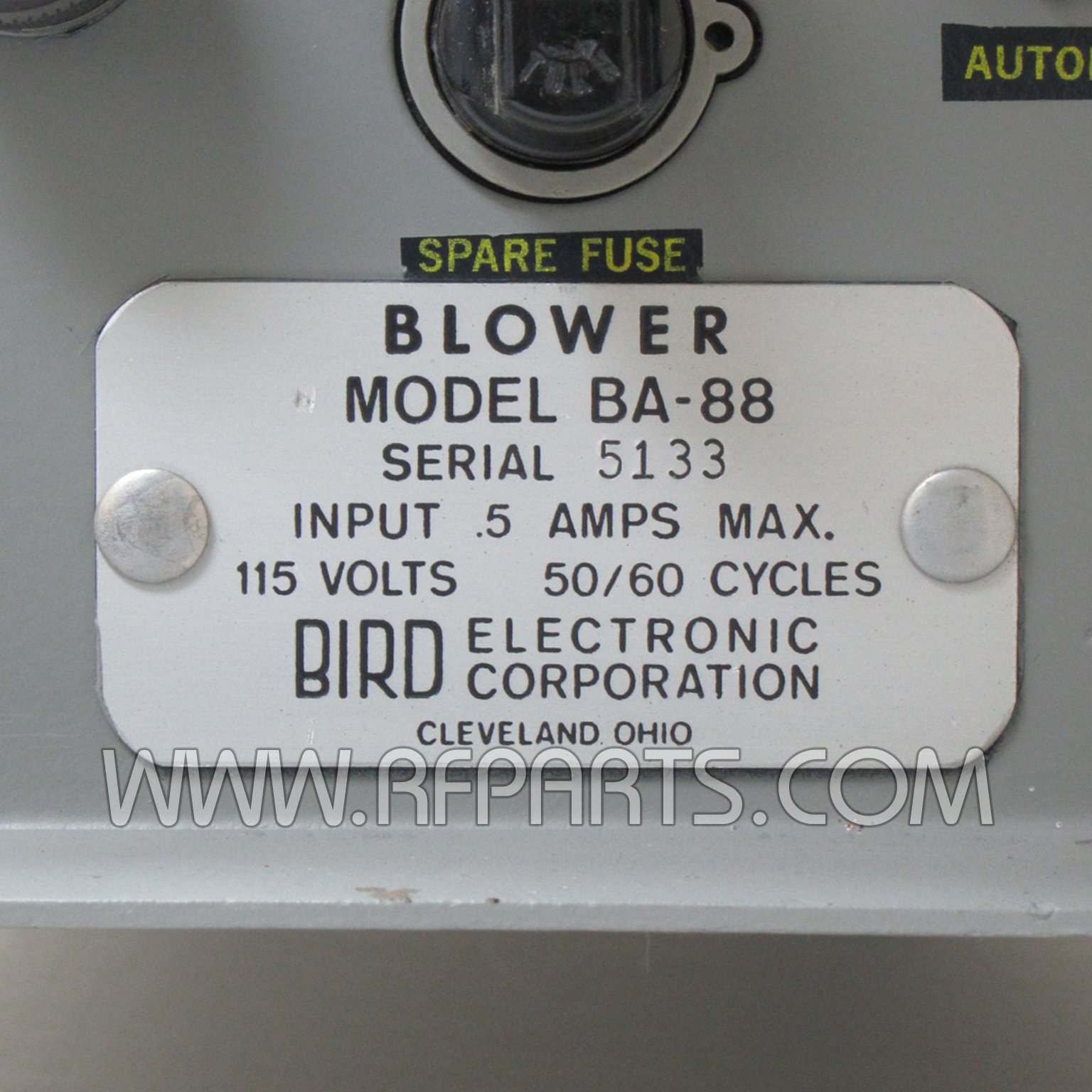

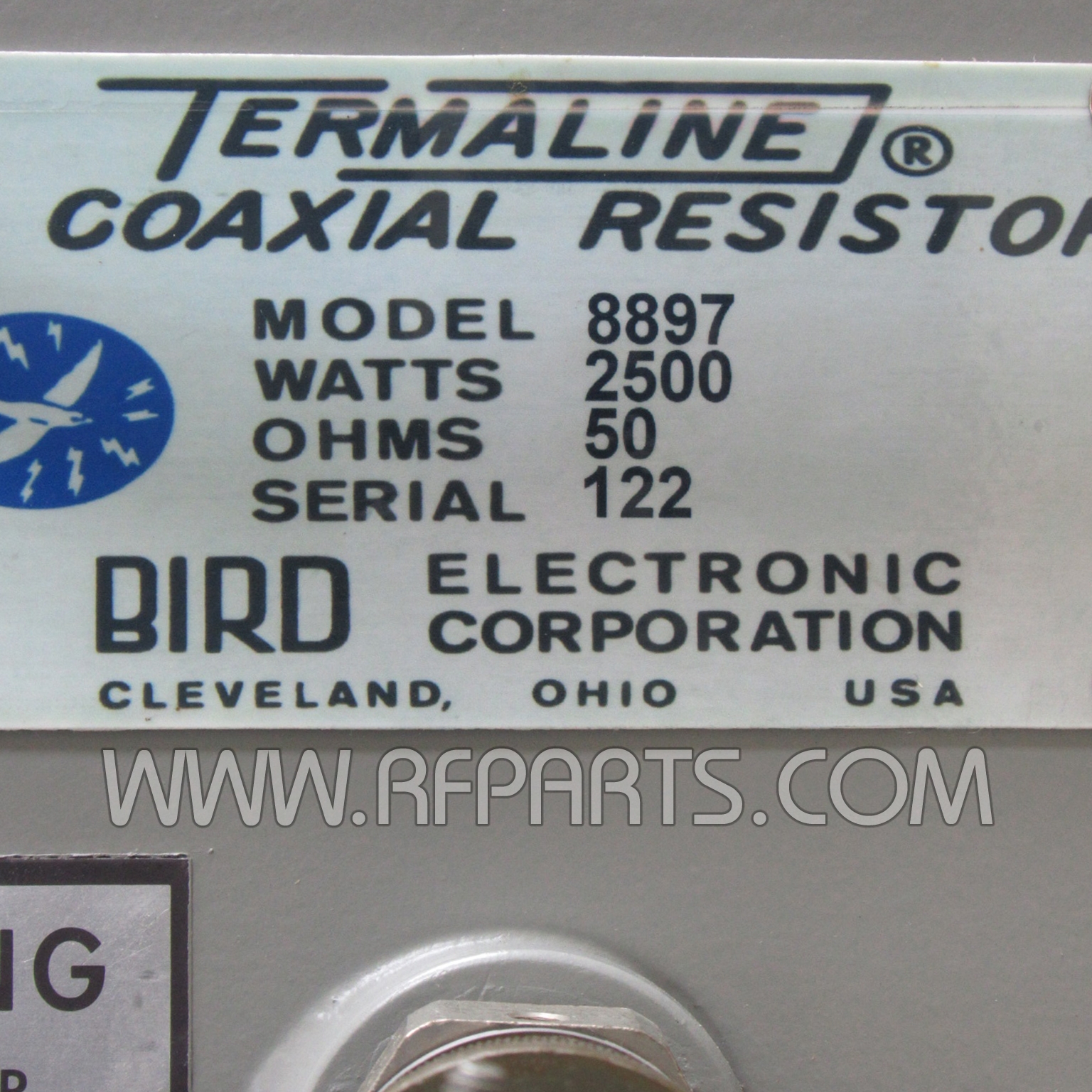

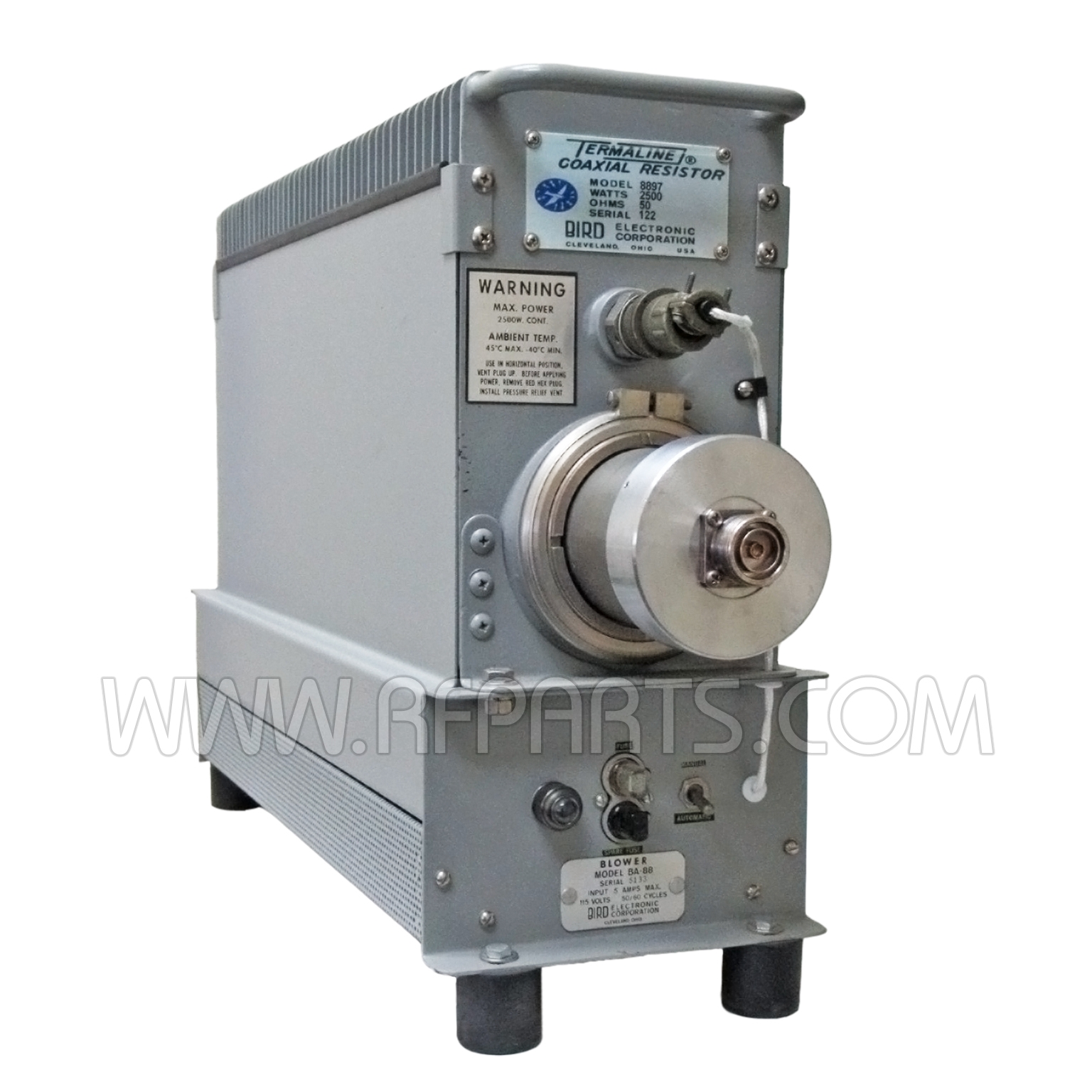

Bird 8897 RF Load is a self-contained high-power 50 ohm coaxial transmission line termination requiring 115 volts for operating the blower unit which provides forced-air cooling for power between 1250 and 2500 watts. It provides accurate, dependable, and practically non-reflective termination for testing and adjusting transmitters under non-radiating conditions. The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor.
Connector: Quick Connect 7/16 DIN Female
Dimentions: 22-3/4" x 7-3/4" x 17-1/4" (577.85mm x 196.85mm x 438.15 mm)
Weight: 53.59lb (24.31kg)
Used * No longer available for export
MFR: Bird Electronics
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | BIRD ELECTRONICS |
