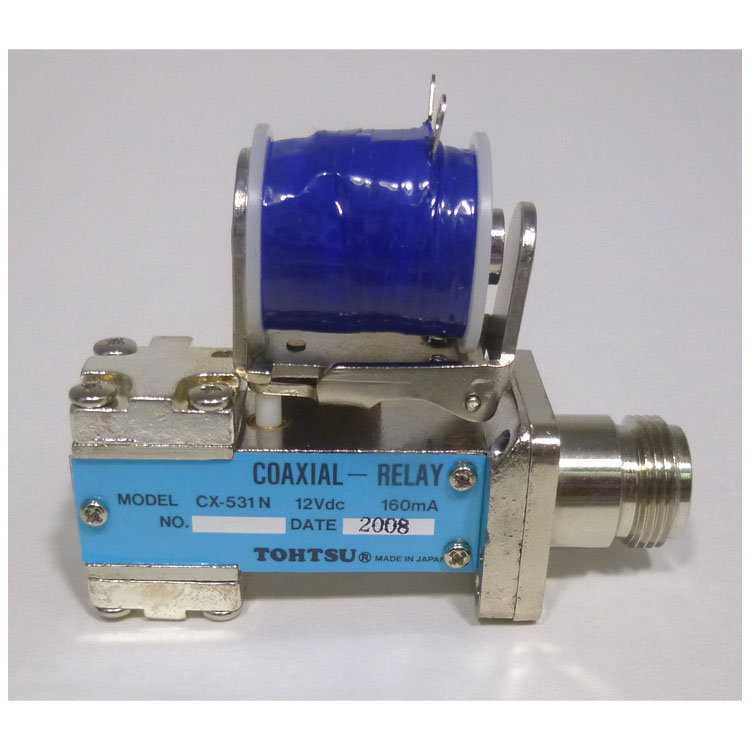

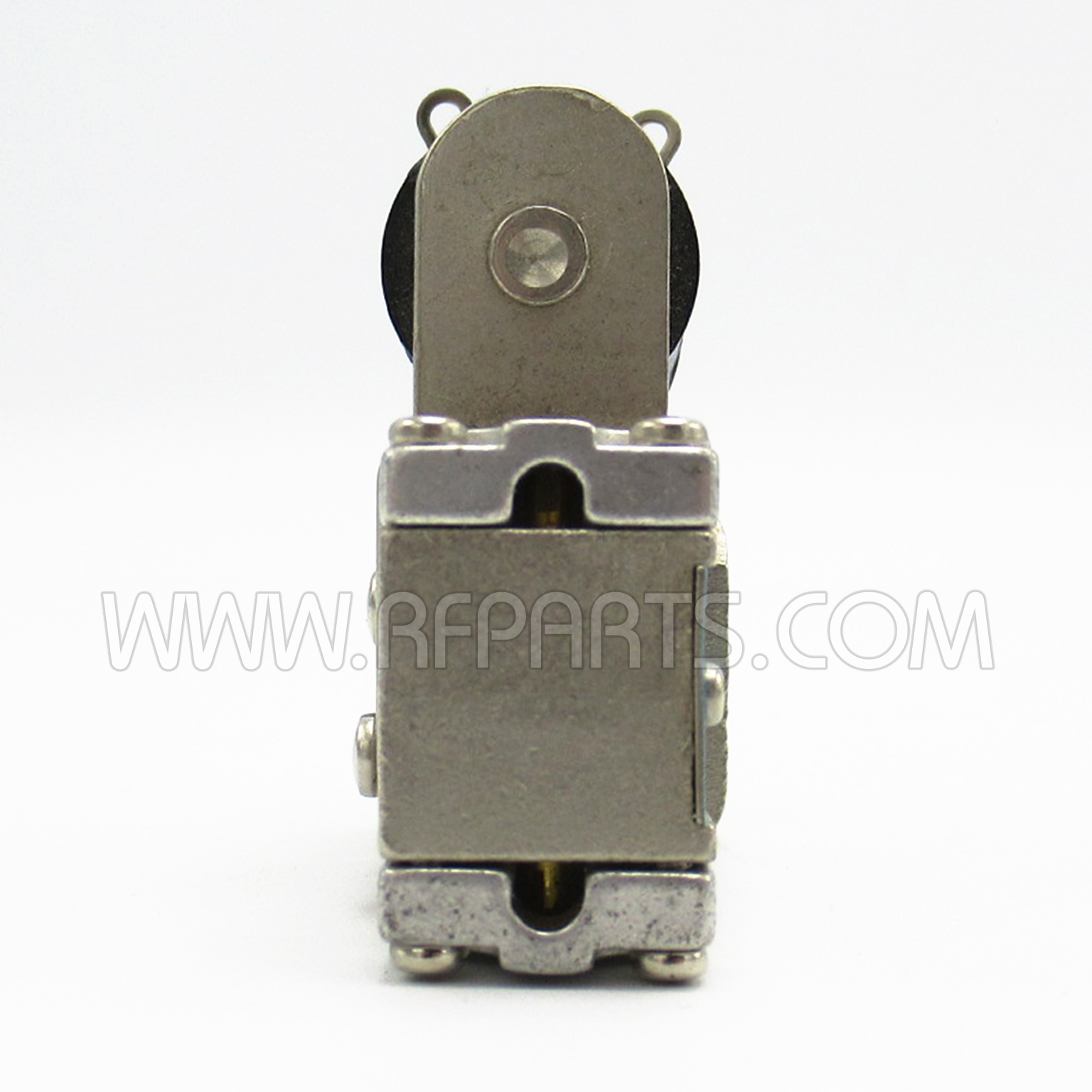

CX531N Tohtsu Coax Relay SPDT 12v Type-N Female

In Stock

$84.91

COAXIAL RELAY, SPDT, 12v

Used in Beko Amplifiers

CONN: TYPE-N FEMALE

MFR: TOHTSU

SKU: CX531N

Made in Japan

Details

CX531N COAXIAL RELAY, SPDT, 12v

Used in Beko Amplifiers

CONN: TYPE-N FEMALE

MFR: TOHTSU

Made in Japan

VOLTAGE

MECHANICAL

Contact Arrangement:	SPDT
Operational Temperature:	-50°C to 70 °C
Weighting:	Approx. 200gs.
Mounting:	Two Screws

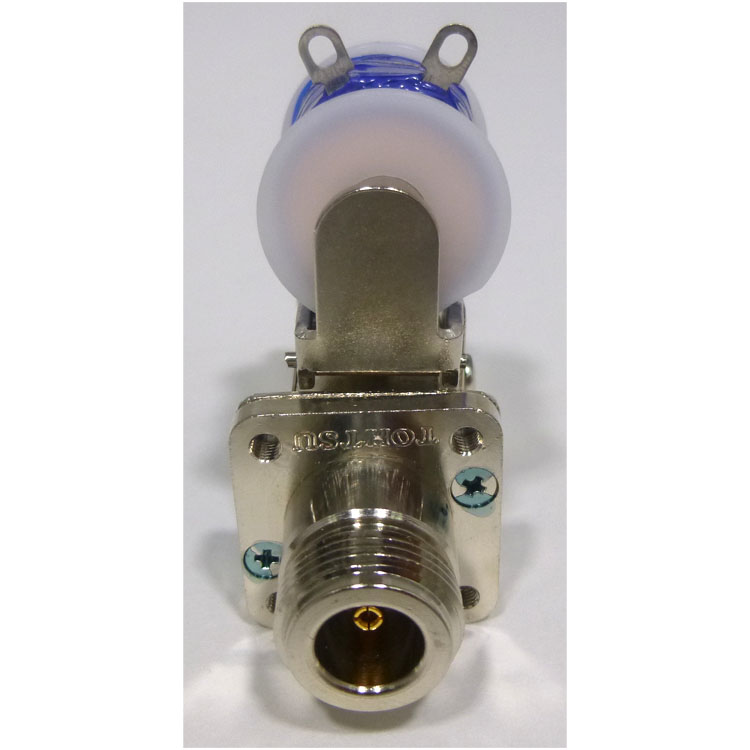

Cable Connections:	1 N Type Female Connector; Directly connect cables

ELECTRICAL CHARACTERISTICS

Frequency (MHz)	VSWR (Max)	Isolation -dB[min]	Ins. Loss -dB[max]	Input (W)
50	1.01	65	0.15	200
150	1.02	65	0.15	200
500	1.03	40	0.2	150
1000	1.05	20	0.25	100
1500	1.2	15	0.3	100

SWITCHING TIME

COIL CHARACTERISTICS

SCHEMATIC

DIMENSIONS

TYPICAL OPERATING CURVES
