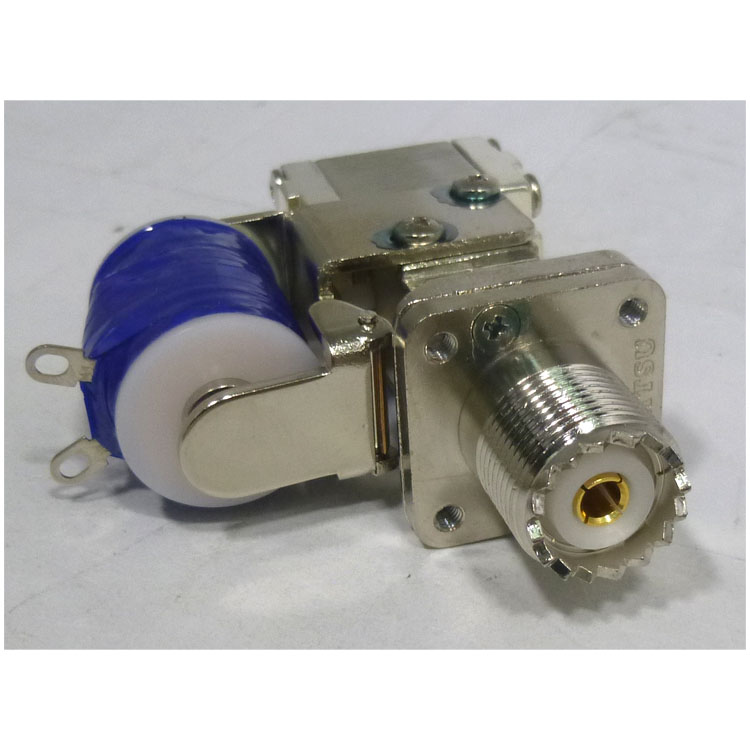

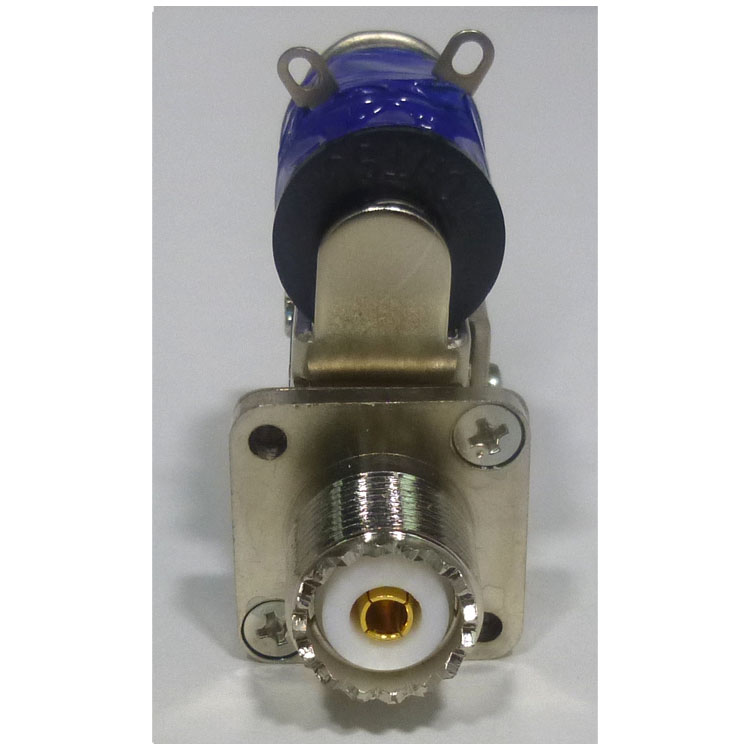

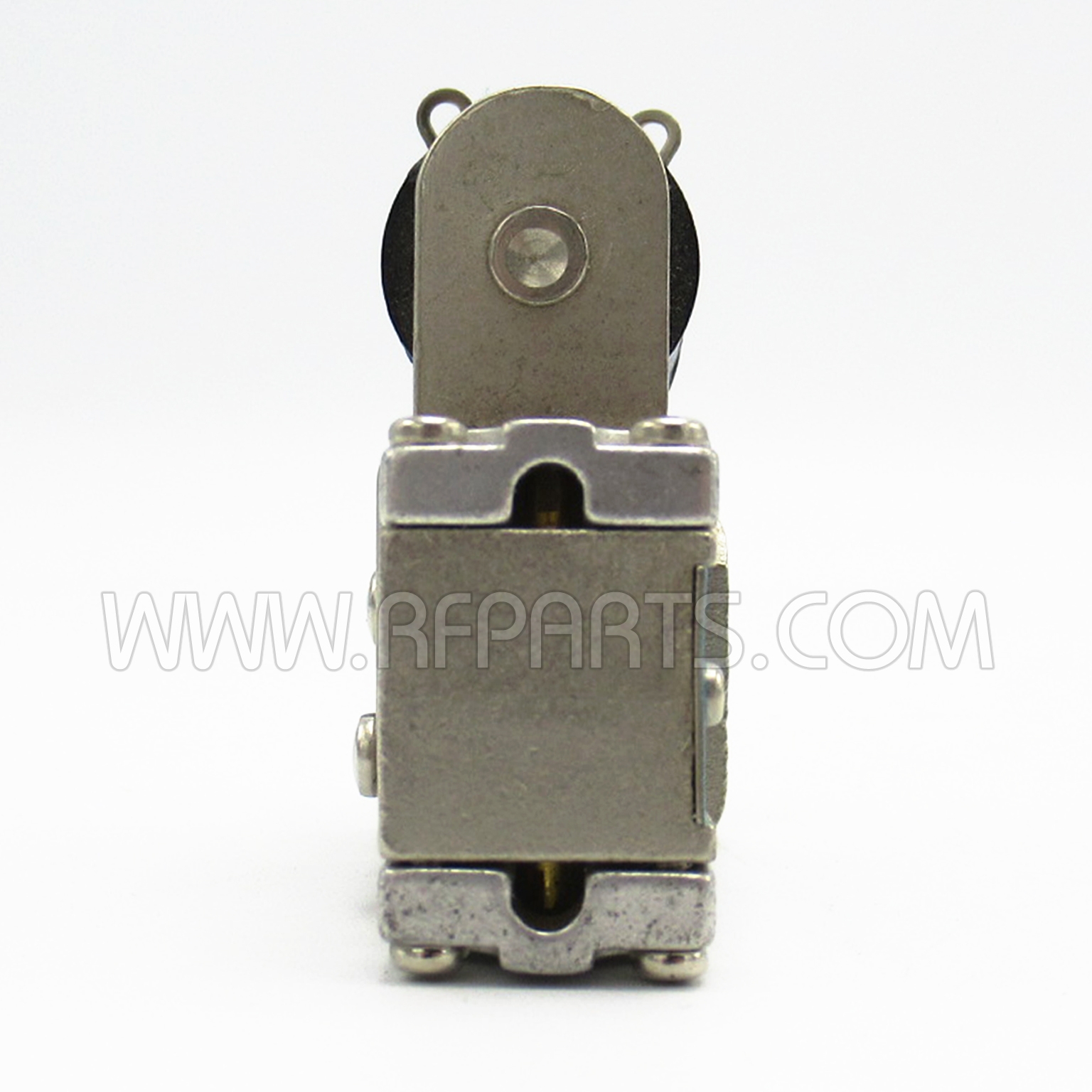

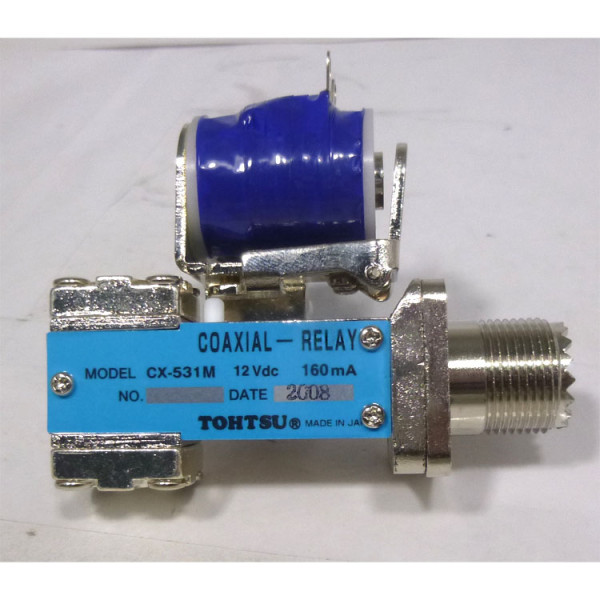

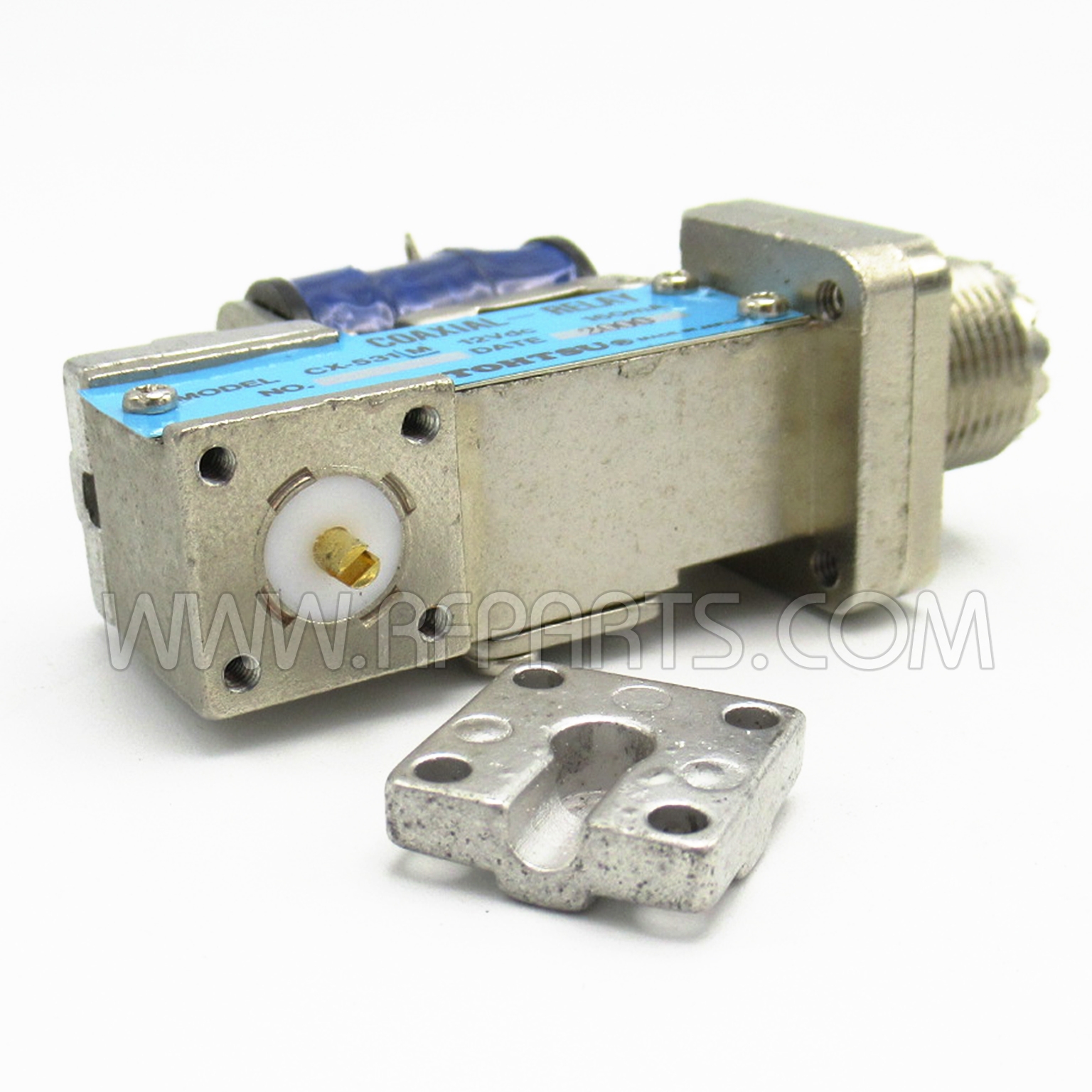

CX531M Tohtsu Coax Relay SPDT 12vdc with UHF Connector

In Stock

$84.91


  • Used in Beko Amplifiers, HLV1950

  • Connector: UHF FEMALE


MFR: Tohtsu
Made in Japan
SKU: CX531M

Add to Wishlist Add to Compare

Be the first to review this product

Details

CX531M Tohtsu Coax Relay SPDT 12vdc with UHF Connector

  • Used in Beko Amplifiers, HLV1950
  • Connector: UHF FEMALE

MFR: Tohtsu
Made in Japan

VOLTAGE
Pull in: 9.0Vdc-16.5Vdc(12Vdc Nominal)
Drop out: 1.5Vdc Min.
Current: 160mA@12Vdc 20°C
Coil Resistance 75 Ohms. 10% 20°C

MECHANICAL
Contact Arrangement: SPDT
Operational Temperature: -50°C to 70 °C
Weighting: Approx. 20gs.
Mounting: Two Screws
Cable Connections: 1 M (UHF) Type female connector; Directly connect cables.

ELECTRICAL CHARACTERISTICS
Frequency (MHz)VSWR (Max)Isolation -dB[min]Ins. Loss -dB[max]Input (W)
50
1.01
65
0.15
200
150
1.02
65
0.15
200
500
1.05
40
0.2
150
SWITCHING TIME
Pull in: 20ms typical
Drop out: 15ms typical
Life Expectancy: 1,000,000 Operation Min.

COIL CHARACTERISTICS
Nominal Voltage: 12Vdc/24Vdc
Voltage Range: 9Vdc-15.0Vdc/
18Vdc-25.5Vdc
Coil Resistance Ohms: 75/300
Mounting: -

SCHEMATIC
DIMENSIONS

TYPICAL OPERATING CURVES

Additional Information

Featured Product No
Made in the USA No
GTIN No
ISBN No
NATO Stock Number No
Manufacturer Part Number No
Manufacturer No
Condition New
NOS No
Call For Price No
Manufacturer Name TOHTSU
