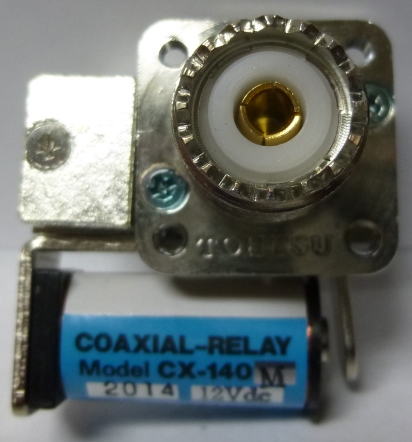

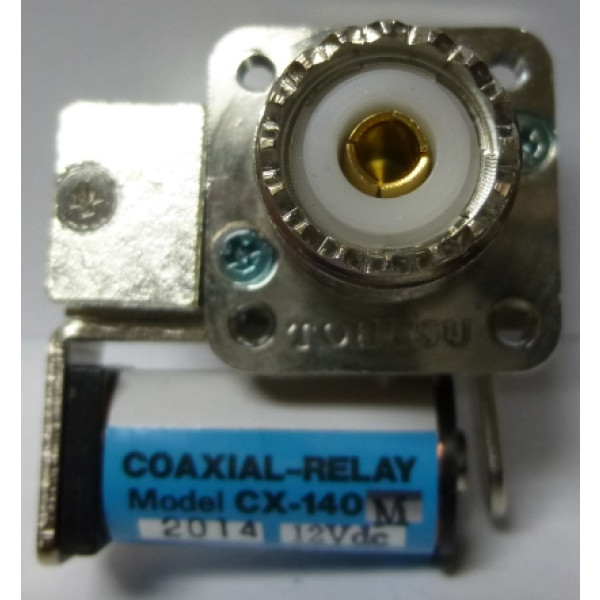

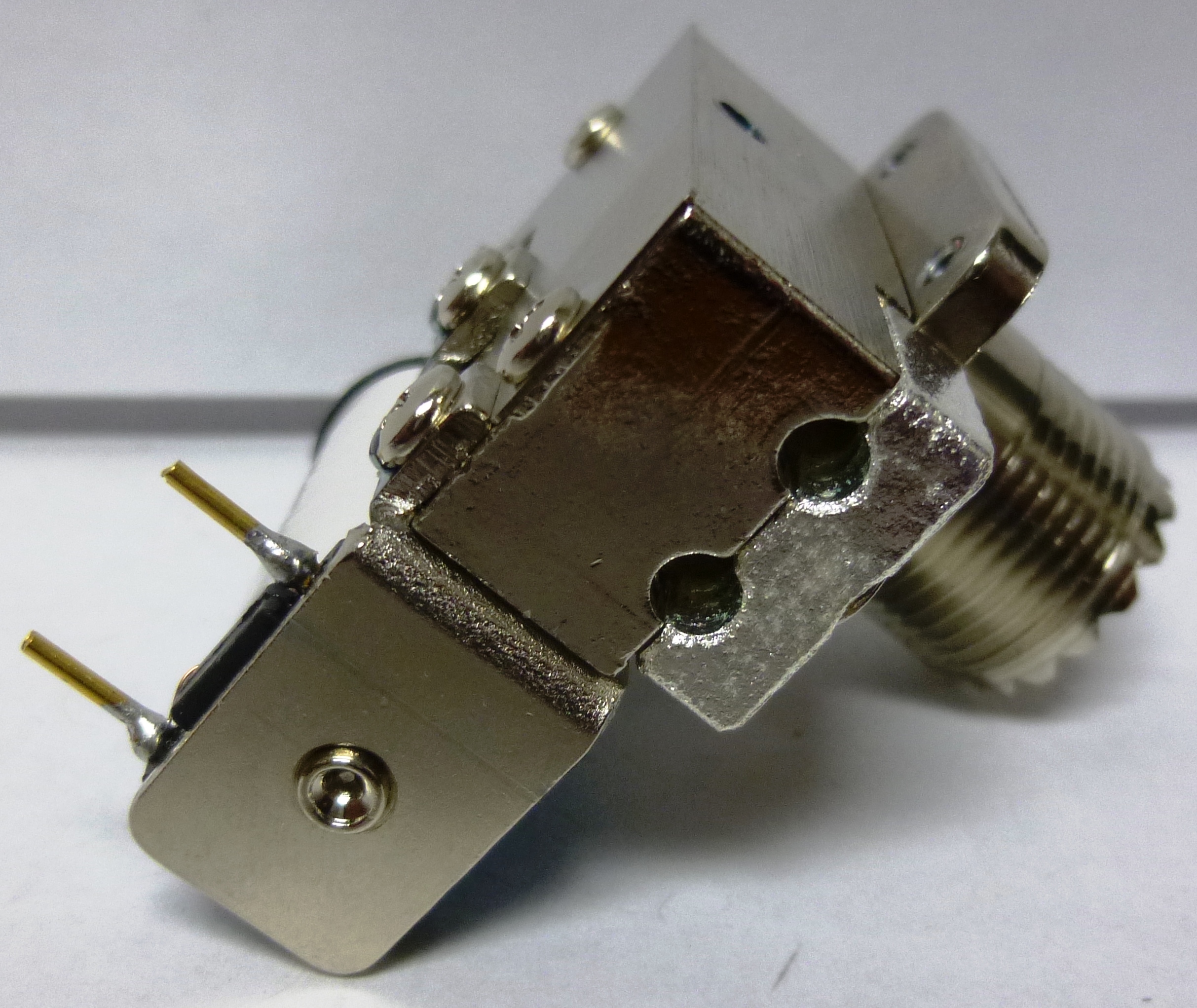

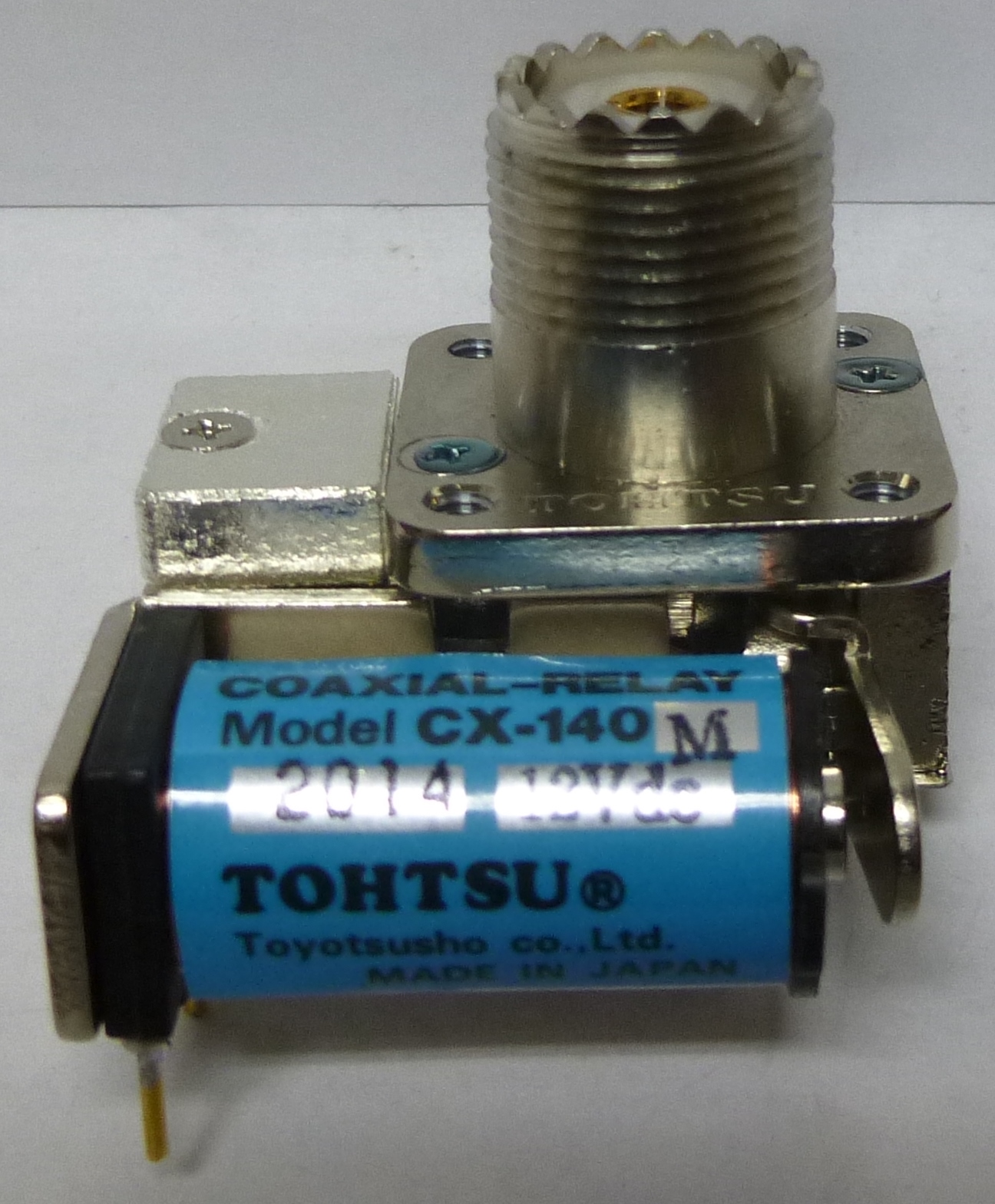

CX140M Tohtsu SPDT UHF Female 12V Coax Relay
In Stock
$49.91
- RF Impedence: 50 Ohms
- Pull in: 10 Vdc - 14 Vdc (12 Vdc Nominal)
- Contact arrangement: SPDT
- Operational temperature: -25 to +50 degrees C.
- Mounting: Four screws
- Cable connections: UHF Female, Directly connect cables
MFR: Tohtsu
SKU: CX140M
Details
CX140M Tohtsu SPDT UHF Female 12V Coax Relay
RF Impedence: 50 Ohms
Voltage
Pull in: 10 Vdc - 14 Vdc (12 Vdc Nominal)
Drop out: 3.0 Vdc minimum
Current: 80 mA at 12 Vdc at 20 degrees C
Coil resistance: 150 Ohms +/-10% at 20 degrees C.
Switching Time
Pull in: 15 ms typical
Drop out: 10 ms typical
Life Expectancy: 1,000,000. Operation min.
Mechanical
Contact arrangement: SPDT
Operational temperature: -25 to +50 degrees C.
Weight: 95 grams
Mounting: Four screws
Cable connections: UHF Female, Directly connect cables
MFR: Tohtsu
You may also be interested in the following product(s)
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Tohtsu |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | TOHTSU |
