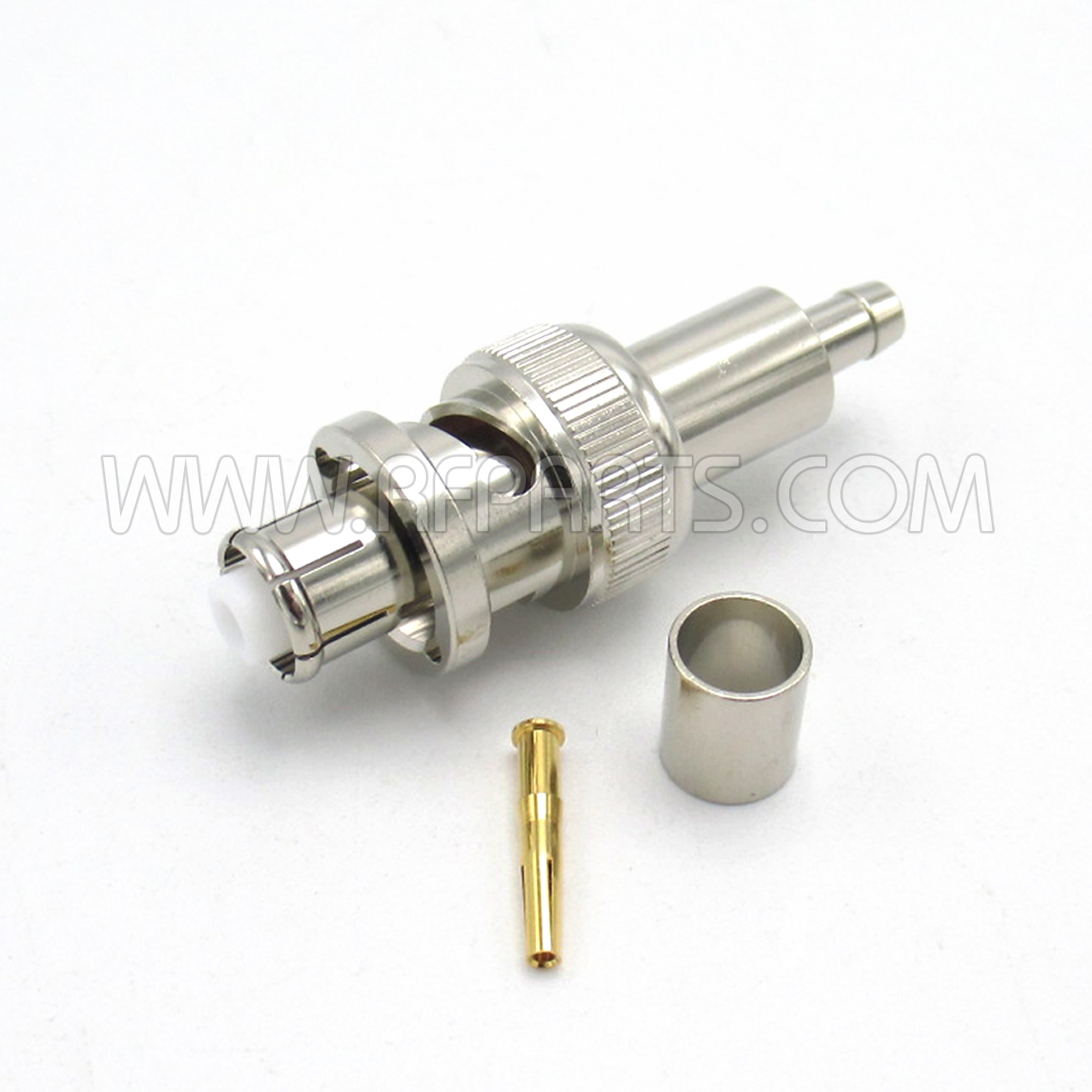

SHVP-58/U TYC SHV Male Connector for RG58/U Cable - Cable Group C
In Stock
$12.91
- Cable Group: RG-58, 58A
- Body: Nickel plated Brass
- Center Contact: Gold plated Phosphor Bronze
- RoHS2 Complient
MFR: To-Conne Company, LTD.
Made in Taiwan
SKU: TYC3800
Details
SHVP-58/U TYC SHV Male Connector for RG58/U Cable - Cable Group C
SHV straight plug compatible with RG-58/U and RG-58A/U cables. Both the center contact and body are crimp type. Crimping tool TA-34 is required for mounting. There is no specification for characteristic impedance, and this connector is compatible with high voltages up to 3.5kV. Although it is a bayonet lock system, it is not compatible with BNC type or MHV connectors.
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Clamp
- Mounting Type: Free Hanging (In-Line)
- Cable Group: RG-58, 58A
- Fastening Type: Bayonet Lock
- Number of Ports: 1
- Housing Color: Silver
- Body: Nickel plated Brass
- Center Contact: Gold plated Phosphor Bronze
- Dielectric: Teflon
- Voltage Rating: 3500 V
- RoHS2 Complient
MFR: To-Conne Company, LTD.
Made in Taiwan
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | To-Conne Company, LTD. |
