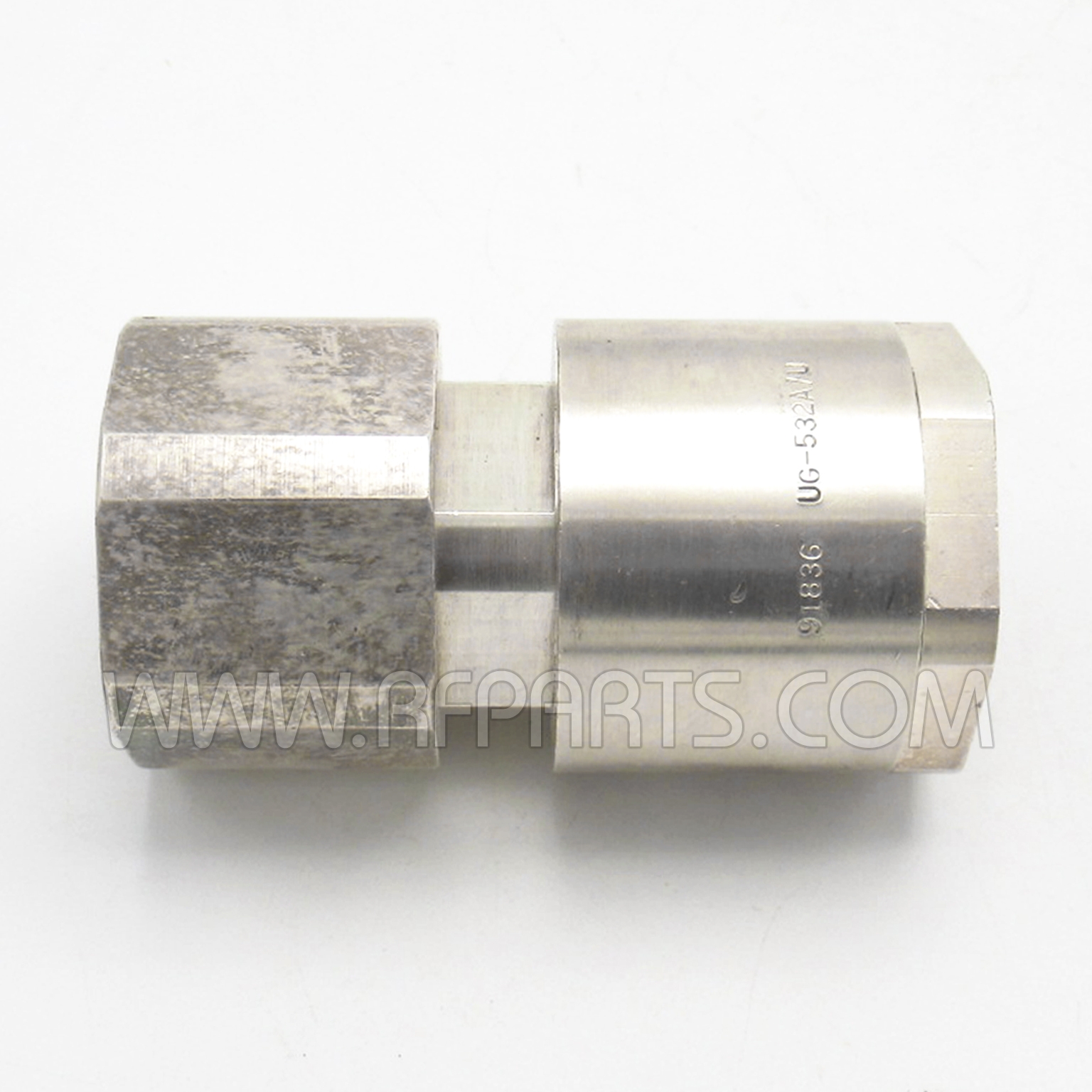

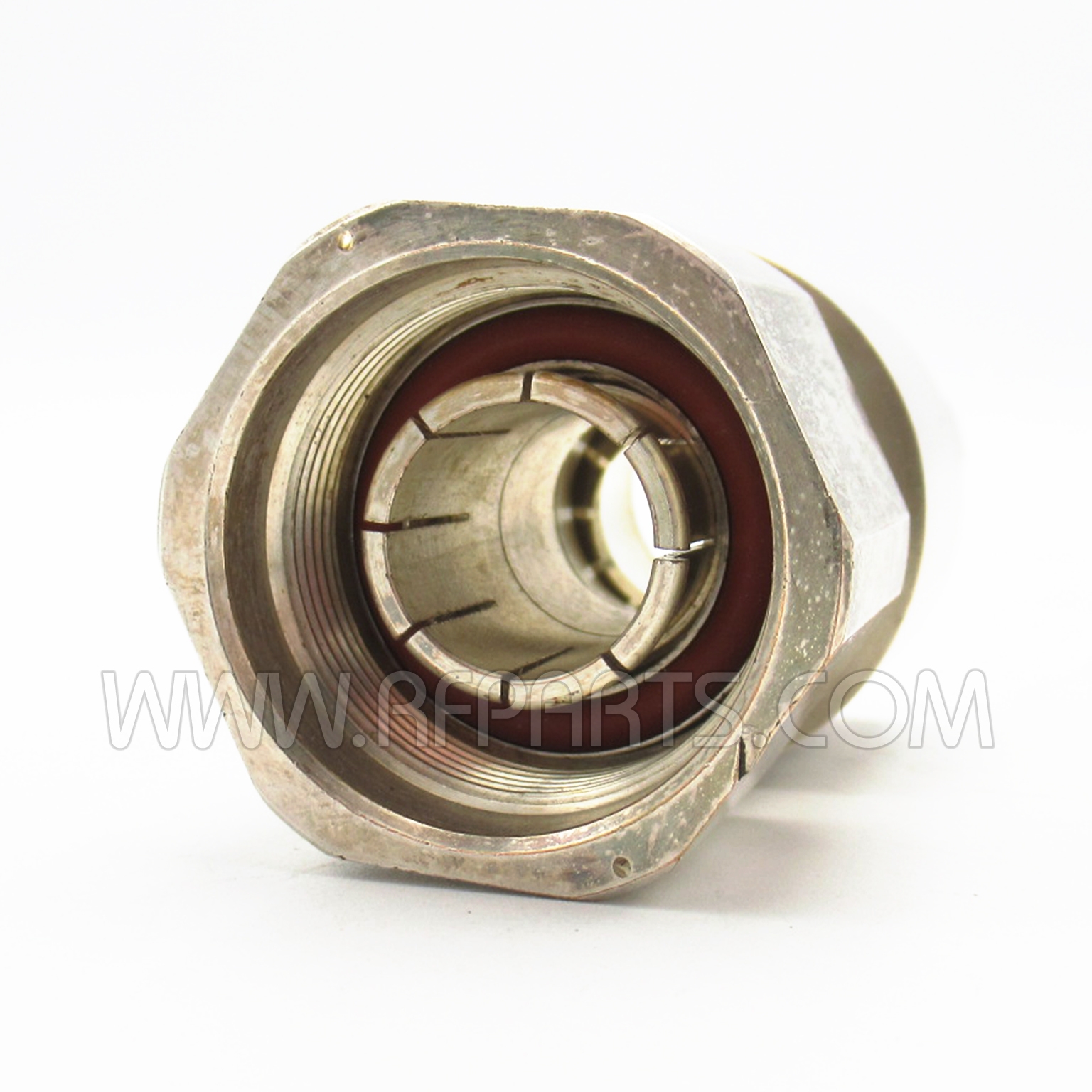

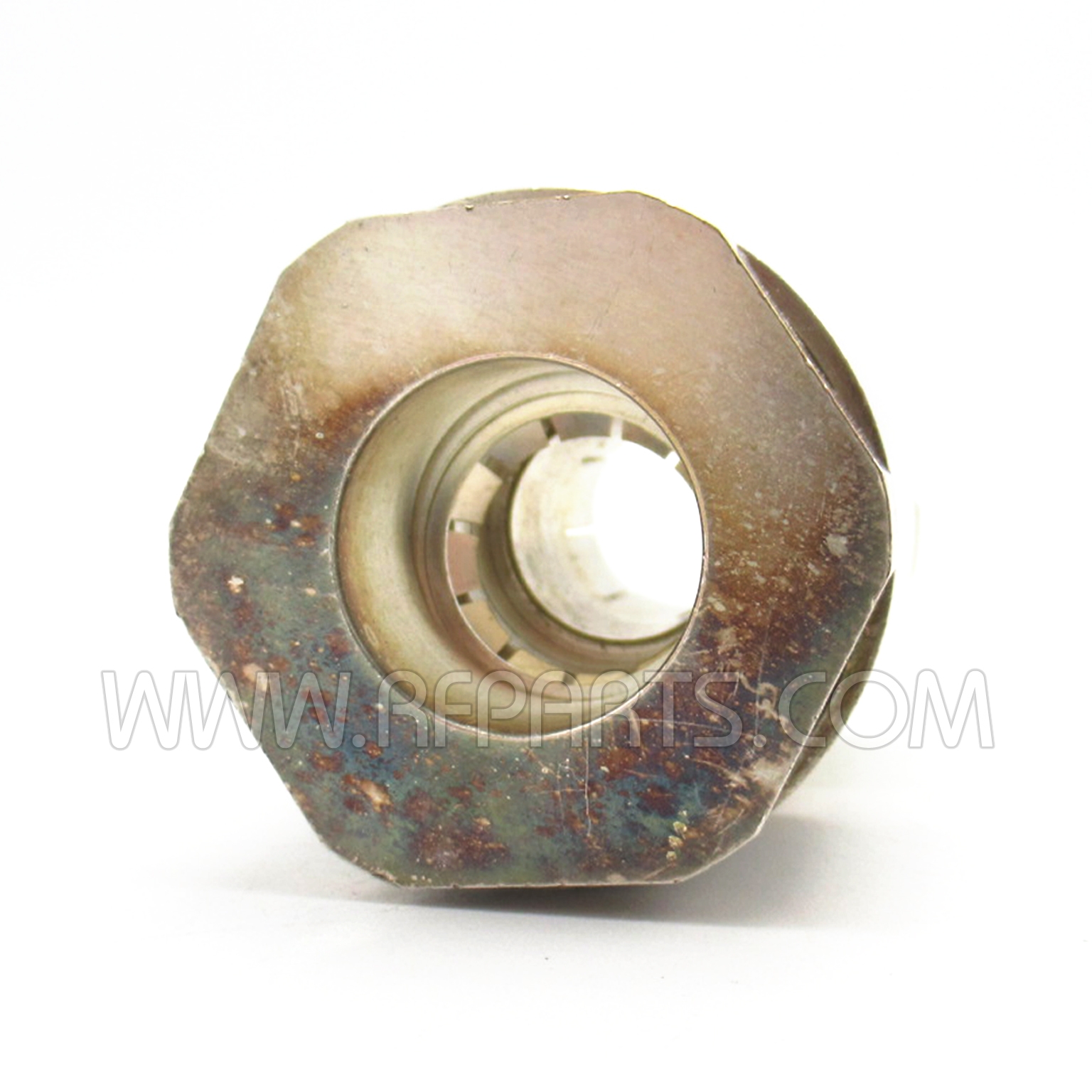

UG532A/U Winchester LC Male Connector Plug for Cable Group 1C RG118A, RG228A (Pull)

UG532A/U Winchester LC Male Connector Plug  for Cable Group 1C RG118A, RG228A (Pull)

• Thread Class: 2b
• Thread Direction: Right-Hand
• Iii Body Style: Straight Shape, Internal Coupling
• Overall Length: 3.094 Inches Nominal
• Overall Diameter: 1.656 Inches Nominal
• Cable Entrance Diameter: 0.750 Inches Maximum
• Mating End Quantity: 1
• Contact Position Arrangement Style: LC Single Mating End
• Contact Removability: Nonremovable Single Mating End Single Contact Grouping
• Shell Type: Solid
• Connector Locking Method: Internally Threaded Coupling Nut
• Connector Cable Strain Relief Method: Compression Nut
• Radio Frequency Type Contact Characteristic Impedance In Ohms: 50.0
• Thread Quantity Per Inch: 18
• Nominal Thread Size: 1.250 Inches
• Terminal Location: Back Single Mating End
• Contact Material: Copper Alloy
• Contact Surface Treatment: Silver
• Insert Material: Plastic
• Contact Surface Treatment Document And Classification: Qq-S-365 Fed Spec Single Treatment Response
• Terminal Type: Crimp
• Shell Material: Copper Alloy
• Shell Surface Treatment: Silver
• Shell Surface Treatment Document And Classification: Qq-S-365 Fed Spec Single Treatment Response
• Included Contact Quantity: 1 Single Mating End
• Precious Material And Location: Contact And Shell Surfaces Silver
• Precious Material And Weight: 0.105 Silver Grains, Troy
• Precious Material: Silver

Used * No longer available for export
MFR: Winchester Interconnect Corporation
