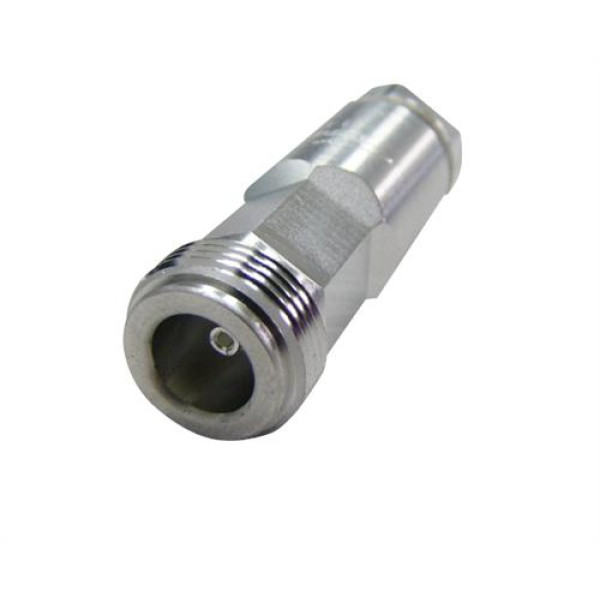

L1TNF-PL Andrew Type-N Female Connector LDF1-50
In Stock
$22.91
L1TNF-PL Andrew Type-N Female Connector LDF1-50
MFR: Andrew
SKU: L1TNF-PL
Details
L1TNF-PL Andrew Type-N Female Connector LDF1-50
MFR: Andrew
| Product Classification | |
| Brand | HELIAX® |
| Product Type | Wireless and radiating connector |
| |
|
| General Specifications | |
| Interface | N Female |
| Body Style | Straight |
| Mounting Angle | Straight |
| |
|
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 12000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -107 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 707.00 V |
| dc Test Voltage | 2200 V |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| Inner Contact Resistance, maximum | 1.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 0.6 kW @ 900 MHz |
| Peak Power, maximum | 10.00 kW |
Insertion Loss, typical  |
0.05 dB |
| Shielding Effectiveness | -110 dB |
| |
|
| Outline Drawing | |
 Click on image below to enlarge.  |
|
| |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Self-flare |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Connector Retention Tensile Force | 450 N | 101 lbf |
| Insertion Force | 28.00 N | 6.29 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 1.70 N-m | 1.25 ft lb |
| |
|
| Dimensions | |
| Nominal Size | 1/4 in |
| Diameter | 16.00 mm | 0.63 in |
| Height | 16.00 mm | 0.63 in |
| Length | 46.76 mm | 1.84 in |
| Weight | 44.92 g | 0.10 lb |
| Width | 16.00 mm | 0.63 in |
| |
|
| Environmental Specifications | |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Immersion Depth |
1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Corrosion Test Method | IEC 60068-2-11 |
| |
|
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
