L1TDM-PL Andrew/CommScope 7/16 DIN Male Connector LDF1-50
In Stock
$21.95

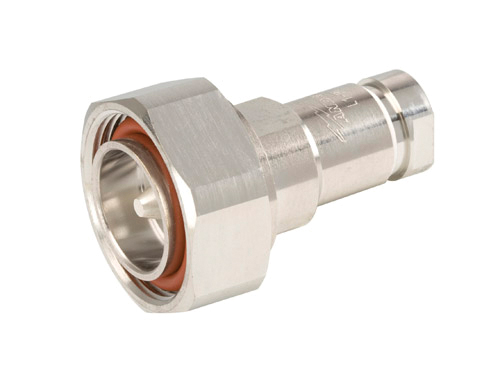

7-16 DIN Male Positive Lock for 1/4 in LDF1-50 cable
MFR: Andrew/CommScope
SKU: L1TDM-PL
Details
L1TDM-PL 7-16 DIN Male Positive Lock for 1/4 in LDF1-50 cable
MFR: Andrew / Commscope
| General Specifications | |
| Interface | 7-16 DIN Male |
| Body Style | Straight |
| Brand | HELIAX® |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 8000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -107 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 778.00 V |
| dc Test Voltage | 2200 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.40 mOhm |
| Insulation Resistance, minimum | 10000 MOhm |
| Average Power | 0.6 kW @ 900 MHz |
| Peak Power, maximum | 12.10 kW |
Insertion Loss, typical  |
0.05 dB |
| Shielding Effectiveness | -110 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Self-flare |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Connector Retention Tensile Force | 450 N | 101 lbf |
| Connector Retention Torque | 1.40 N-m | 1.03 ft lb |
| Insertion Force | 200.00 N | 44.96 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 50.00 N-m | 36.88 ft lb |
| Coupling Nut Retention Force | 1000.00 N | 224.81 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Dimensions | |
| Nominal Size | 1/4 in |
| Diameter | 34.60 mm | 1.36 in |
| Height | 34.60 mm | 1.36 in |
| Length | 46.05 mm | 1.81 in |
| Weight | 109.66 g | 0.24 lb |
| Width | 34.60 mm | 1.36 in |
| Environmental Specifications | |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Immersion Depth |
1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Corrosion Test Method | IEC 60068-2-11 |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–960 MHz | 1.05 | 32.00 |
| 960–2200 MHz | 1.08 | 28.80 |
| 2200–2700 MHz | 1.08 | 28.20 |
| 2700–4000 MHz | 1.08 | 28.00 |
| 4000–6000 MHz | 1.25 | 19.00 |
| 6000–8000 MHz | 1.43 | 15.00 |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Andrew / Commscope |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | TALLEY INC. |
