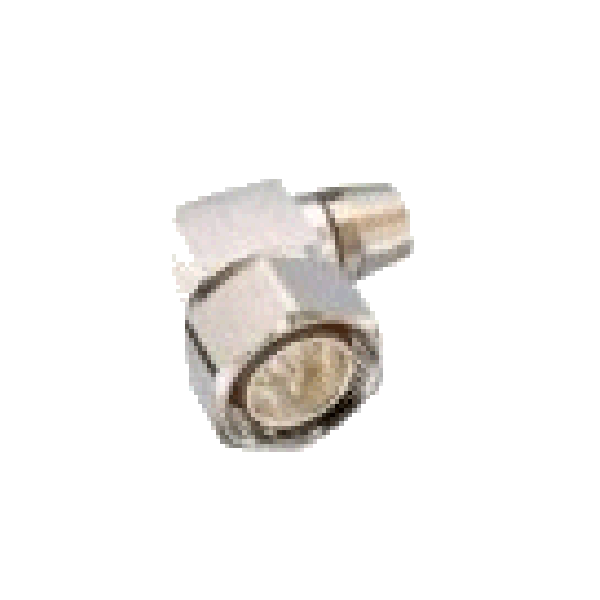

F4PDR-RC 7-16 DIN Male Right Angle for 1/2 in FSJ4-50B cable, MFR: Andrew
Details
F4PDR-RC 7-16 DIN Male Right Angle for 1/2 in FSJ4-50B cable
MFR: Andrew
Limited Quantity Available. The Replacement is F4DR-C.
| General Specifications | |
| Interface | 7-16 DIN Male |
| Body Style | Right angle |
| Brand | HELIAX® |
| Mounting Angle | Right angle |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 5200 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -120 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 884.00 V |
| dc Test Voltage | 2500 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.80 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 1.0 kW @ 900 MHz |
| Peak Power, maximum | 15.60 kW |
Insertion Loss, typical  |
0.05 dB |
| Shielding Effectiveness | -110 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Crush-flare |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Gold |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Connector Retention Tensile Force | 890 N | 200 lbf |
| Connector Retention Torque | 5.42 N-m | 48.00 in lb |
| Insertion Force | 200.17 N | 45.00 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 24.86 N-m | 220.00 in lb |
| Coupling Nut Retention Force | 1000.85 N | 225.00 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Dimensions | |
| Nominal Size | 1/2 in |
| Diameter | 40.34 mm | 1.59 in |
| Length | 60.96 mm | 2.40 in |
| Right Angle Length | 45.72 mm | 1.80 in |
| Weight | 207.36 g | 0.46 lb |
| Width | 31.75 mm | 1.25 in |
| Environmental Specifications | |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Depth |
1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
| Thermal Shock Test Method | MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | IEC 60068-2-6 |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 50–1000 MHz | 1.04 | 33.00 |
| 1000–1900 MHz | 1.04 | 33.00 |
| 1900–2200 MHz | 1.07 | 29.00 |
| 2000–2700 MHz | 1.10 | 26.00 |
| 2700–3600 MHz | 1.13 | 24.00 |
| 3600–5000 MHz | 1.25 | 19.00 |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | No |
| Condition | New |
| NOS | N/A |
| Call For Price | N/A |
| Manufacturer Name | ANDREW |
