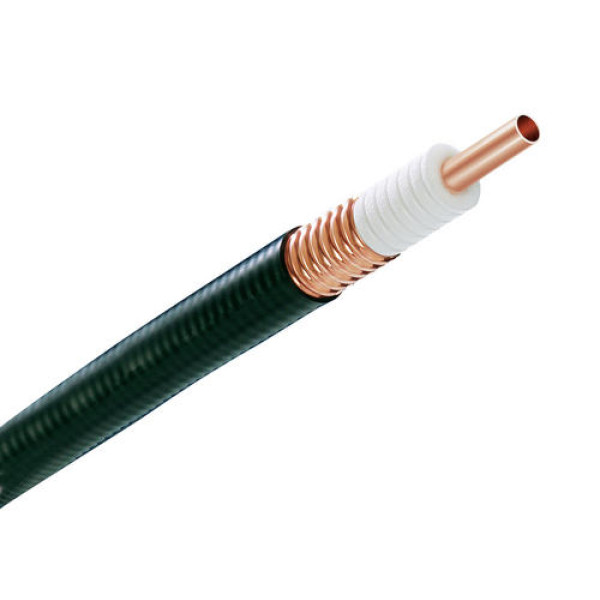

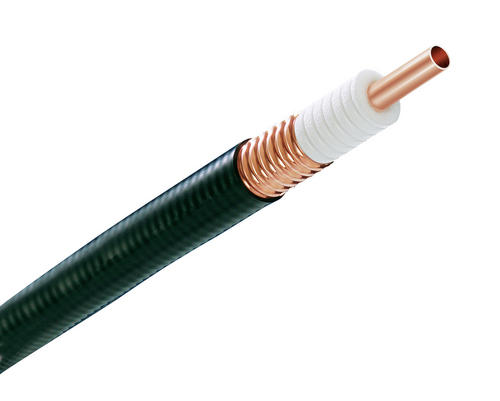

AVA7RK-50 - 1-5/8" Fire Retardant Heliax Coax Cable

SPECIAL ORDER ITEM.  PLEASE ALLOW 4-6 WEEKS DELIVERY.  Orders less than 1000 feet, there is a $395 service charge

AVA7RK-50, HELIAX® Andrew Virtual Air™ Coaxial Cable, corrugated copper, 1-5/8 in, Black nonhalogenated, Fire retardant polyolefin jacket

Minimum order is 5 feet

Construction Materials

• Jacket Material Nonhalogenated,
• fire retardant polyolefin
• Outer Conductor Material Corrugated copper
• Dielectric Material Foam PE
• Flexibility Standard
• Inner Conductor Material Corrugated copper tube
• Jacket Color Black

Dimensions

• Nominal Size 1-5/8 in
• Cable Weight 0.77 lb/ft | 1.20 kg/m
• Diameter Over Dielectric 44.450 mm | 1.750 in
• Diameter Over Jacket 51.054 mm | 2.010 in
• Inner Conductor OD 18.1610 mm | 0.7150 in
• Outer Conductor OD 46.355 mm | 1.825 in

Electrical Specifications

• Cable Impedance 50 ohm ±1 ohm
• Capacitance 22.0 pF/ft | 72.2 pF/m
• dc Resistance, Inner Conductor 0.410 ohms/kft | 1.435 ohms/km
• dc Resistance, Outer Conductor 0.160 ohms/kft | 0.525 ohms/km
• dc Test Voltage 15000 V
• Inductance 0.187 μH/m | 0.057 μH/ft
• Insulation Resistance 100000 Mohms•km
• Jacket Spark Test Voltage (rms) 8000 V
• Operating Frequency Band 1 – 2700 MHz
• Peak Power 302.0 kW
• Pulse Reflection 0.5%
• Velocity 92%

Environmental Specifications

• Installation Temperature 25
• °C to +60 °C (13
• °F to +140 °F)
• Operating Temperature 30
• °C to +80 °C (22
• °F to +176 °F)
• Storage Temperature 30
• °C to +80 °C (22
• °F to +176 °F)
