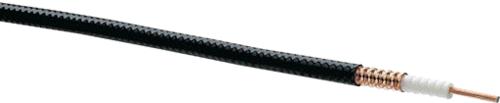

LDF2RK-50 - 3/8" Fire Retardant Heliax Coax

 LDF2RK-50, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 3/8 in, black, nonhalogenated, fire retardant polyolefin jacket

Sold by the foot * Minimum order 10 feet
MFR: Andrew / Commscope

NOTE: THIS IS SPECIAL ORDER CABLE.  --- NORMAL DELIVERY IS 8 WEEKS.

Construction Materials

• Jacket Material Nonhalogenated,
• fire retardant polyolefin
• Outer Conductor Material Corrugated copper
• Dielectric Material Foam PE
• Flexibility Standard
• Inner Conductor Material Copperclad
• aluminum wire
• Jacket Color Black

Dimensions

• Nominal Size 3/8 in
• Cable Weight 0.08 lb/ft | 0.12 kg/m
• Diameter Over Dielectric 8.636 mm | 0.340 in
• Diameter Over Jacket 11.176 mm | 0.440 in
• Inner Conductor OD 3.0480 mm | 0.1200 in
• Outer Conductor OD 9.652 mm | 0.380 in

Electrical Specifications

• Cable Impedance 50 ohm ±1 ohm
• Capacitance 23.0 pF/ft | 75.0 pF/m
• dc Resistance, Inner Conductor 1.060 ohms/kft | 3.478 ohms/km
• dc Resistance, Outer Conductor 0.870 ohms/kft | 2.854 ohms/km
• dc Test Voltage 4000 V
• Inductance 0.190 μH/m | 0.058 μH/ft
• Insulation Resistance 100000 Mohms•km
• Jacket Spark Test Voltage (rms) 6000 V
• Operating Frequency Band 1 – 13000 MHz
• Peak Power 16.6 kW
• Pulse Reflection 0.5%
• Velocity 88%

Environmental Specifications

• Installation Temperature 25
• °C to +60 °C (13
• °F to +140 °F)
• Operating Temperature 30
• °C to +80 °C (22
• °F to +176 °F)
• Storage Temperature 30
• °C to +80 °C (22
• °F to +176 °F)
