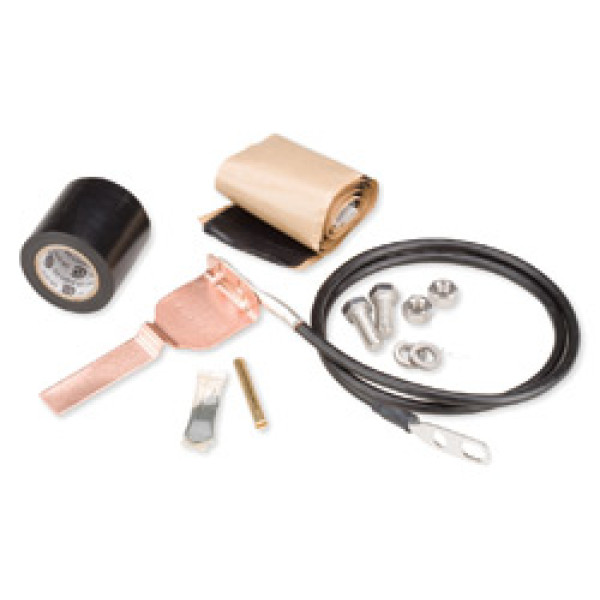

241088-4 Andrew Standard Grounding Kit for 1-5/8" Corrugated Coaxial Cable and Elliptical Waveguide 52 and 63
In Stock
General Specifications
Cable Type: Corrugated | Elliptical waveguide
Grounding Kit Type: Standard Grounding Kits
Ordering Note: CommScope® non-standard product
Color: Black
Bonding Conductor Material: Copper
Bonding Conductor Wire Size: 6 gauge
Bonding Conductor Jacketing Material: PVC
Grounding Strap Material: Copper
Includes: Grounding kit | Hardware | Lug | One roll of 2 in PVC tape | One roll of 24 in butyl rubber tape
Lug Attachment: Factory attached
Lug Type: Two-hole lug
Package Quantity: 1
Rivet Material: Copper
Weatherproofing Method: Butyl and electric tape
MFR: Andrew / Commscope
SKU: 241088-4
Details
241088-4 Andrew Standard Grounding Kit for 1-5/8" Corrugated Coaxial Cable and Elliptical Waveguide 52 and 63
MFR: Andrew/Commscope
| Dimensions | |
| Nominal Size | 1-5/8 in |
| Waveguide Size | WR137 | WG14 | R70 | WR159 | WG13 | R58 |
| Bonding Conductor Length | 609.6 mm | 24 in |
| Cable Jacketing Removal Length, maximum | 59.1 mm | 2.3 in |
| Cable Jacketing Removal Length, minimum | 55.9 mm | 2.2 in |
| Compatible Diameter, maximum | 50.800 mm | 2.000 in |
| Compatible Diameter, minimum | 49.022 mm | 1.930 in |
| Electrical Specifications | |
| Current Handling | Tested to withstand 100,000 amps peak current surge |
| Current Handling Test Method | MIL-STD-1757 |
Grounding, Bonding and Shielding Test Method  |
MIL-STD-188-124A |
| Lightning Protection Test Method |
IEC 1024-1 |
| General Specifications | |
| Cable Type | Corrugated | Elliptical waveguide |
| Grounding Kit Type | Standard Grounding Kits |
| Ordering Note | CommScope® non-standard product |
| Color | Black |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Bonding Conductor Jacketing Material | PVC |
| Grounding Strap Material | Copper |
| Includes | Grounding kit | Hardware | Lug | One roll of 2 in PVC tape | One roll of 24 in butyl rubber tape |
| Lug Attachment | Factory attached |
| Lug Type | Two-hole lug |
| Package Quantity | 1 |
| Rivet Material | Copper |
| Weatherproofing Method | Butyl and electric tape |
| Mechanical Specifications | |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Thread Size | 3/8 in |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Packed Dimensions | |
| Height | 304.8 mm | 12.0 in |
| Length | 25.4 mm | 1.0 in |
| Shipping Weight | 0.72 kg | 1.58 lb |
| Width | 279.4 mm | 11.0 in |
