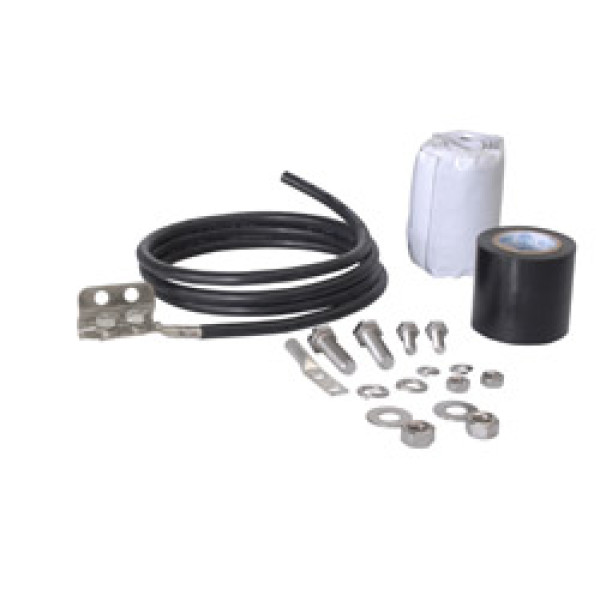

223158-4 Andrew/CommScope Grounding kit w/2 hole lug For 1/4" and 3/8" cables
In Stock
$34.90
Standard Grounding Kit for 1/4 in and 3/8 in corrugated coaxial cable, CNT-400 braided cable, and elliptical waveguide 240 and 380
MFR: Andrew/CommScope
SKU: 223158-4
Details
223158-4 Standard Grounding Kit for 1/4 in and 3/8 in corrugated coaxial cable, CNT-400 braided cable, and elliptical waveguide 240 and 380
MFR: Andrew / Commscope
| Dimensions | |
| Nominal Size | 1/4 in | 3/8 in |
| Waveguide Size | WR28 | WG22 | R320 | WR42 | WG20 | R220 |
| Bonding Conductor Length | 1524.0 mm | 60 in |
| Cable Jacketing Removal Length, maximum | 59.1 mm | 2.3 in |
| Cable Jacketing Removal Length, minimum | 55.9 mm | 2.2 in |
| Compatible Diameter, maximum | 9.652 mm | 0.380 in |
| Compatible Diameter, minimum | 6.223 mm | 0.245 in |
| Electrical Specifications | |
| Current Handling | Tested to withstand 100,000 amps peak current surge |
| Current Handling Test Method | MIL-STD-1757 |
Grounding, Bonding and Shielding Test Method  |
MIL-STD-188-124A |
| Lightning Protection Test Method |
IEC 1024-1 |
| General Specifications | |
| Cable Type | Braided | Corrugated | Elliptical waveguide |
| Grounding Kit Type | Standard Grounding Kits |
| Color | Black |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Bonding Conductor Jacketing Material | PE |
| Grounding Strap Material | Tinned copper |
| Includes | Grounding kit | Hardware | Lug | One roll of 2-1/2 in butyl rubber tape | One roll of 3/4 in PVC tape |
| Lug Attachment | Field attached |
| Lug Type | One-hole lug |
| Package Quantity | 1 |
| Rivet Material | Copper |
| Weatherproofing Method | Butyl and electric tape |
| Mechanical Specifications | |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Thread Size | 3/8 in |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Packed Dimensions | |
| Height | 266.7 mm | 10.5 in |
| Length | 57.2 mm | 2.3 in |
| Shipping Weight | 0.34 kg | 0.75 lb |
| Width | 175.3 mm | 6.9 in |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Andrew / Commscope |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Commscope |
