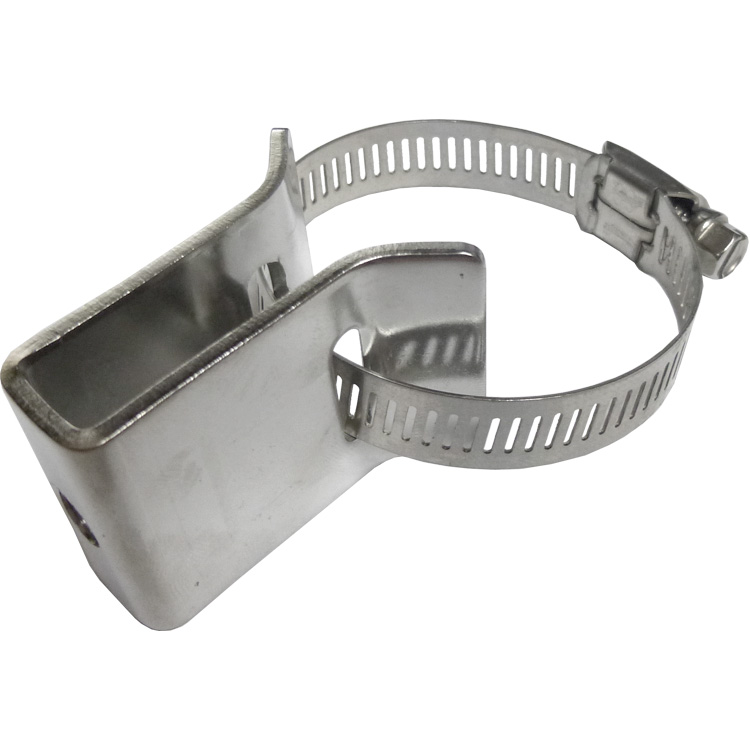

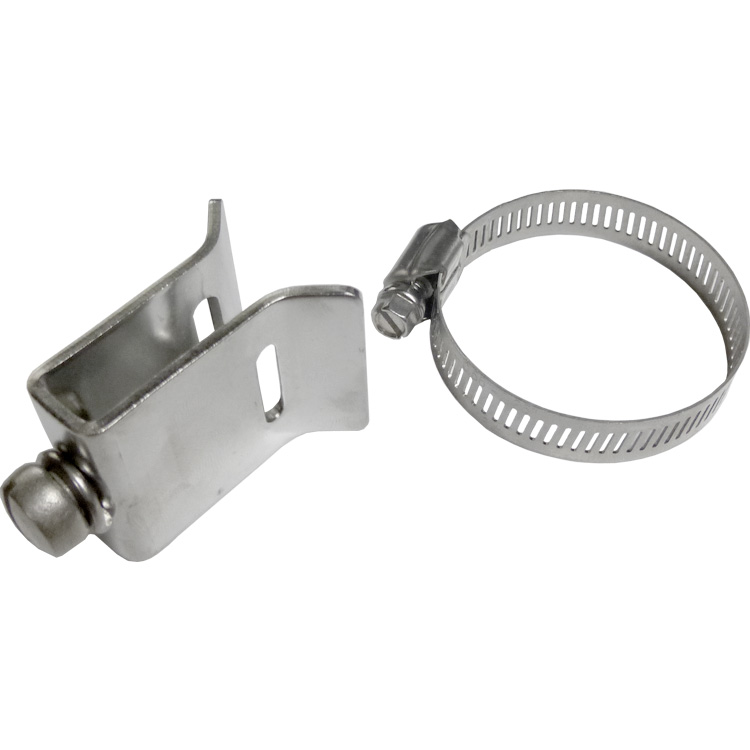

30848-4 Andrew Stand-off Adapter with Clamp (NOS)
In Stock
$58.91
General Specifications
Adapter Type: Stand-off adapter
Includes Clamp
Material Type: Stainless steel

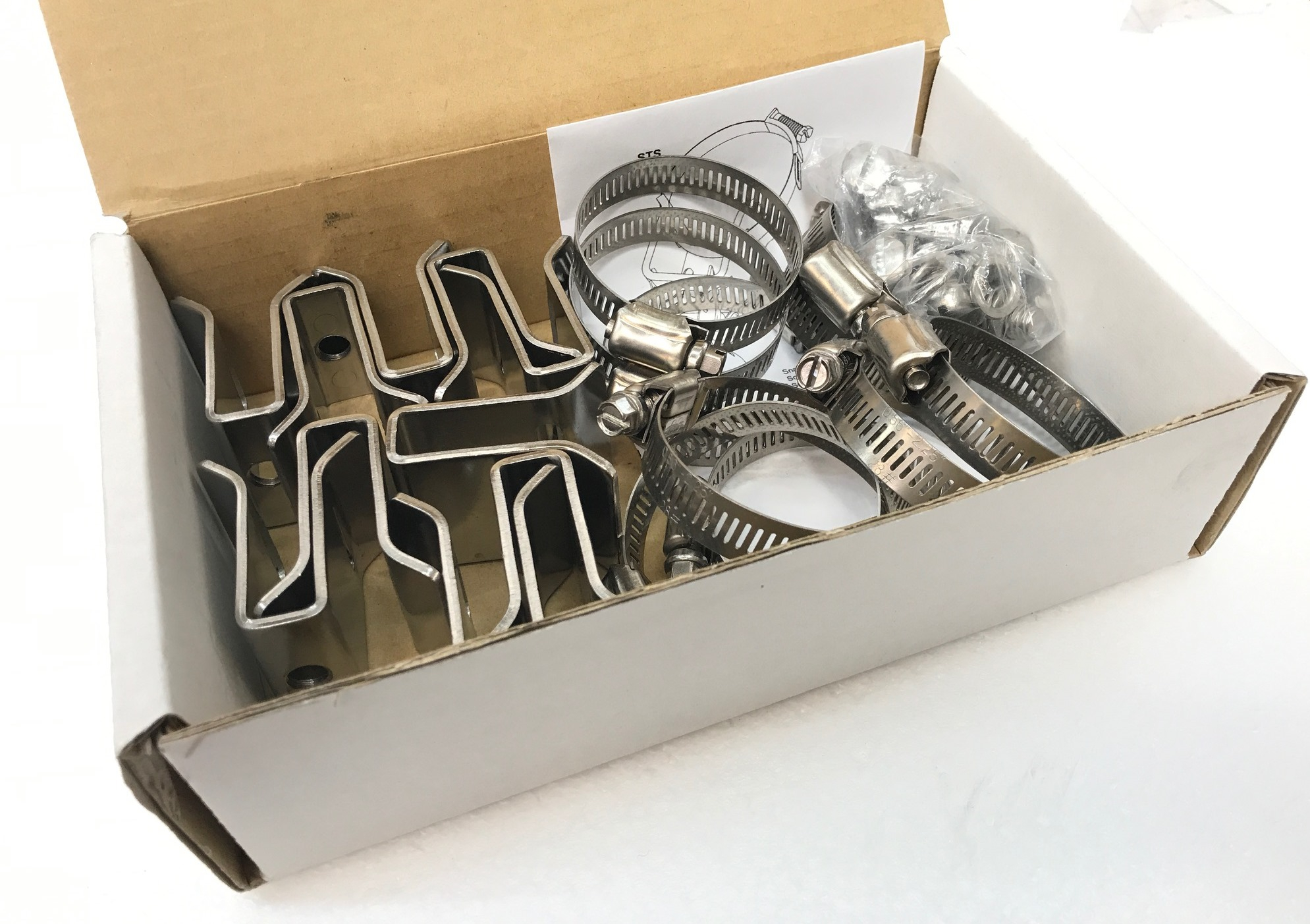

Package Quantity: 10
New Old Stock
MFR: Andrew
SKU: 30848-4
Details
30848-4 Andrew Stand-off Adapter with Clamp (NOS)

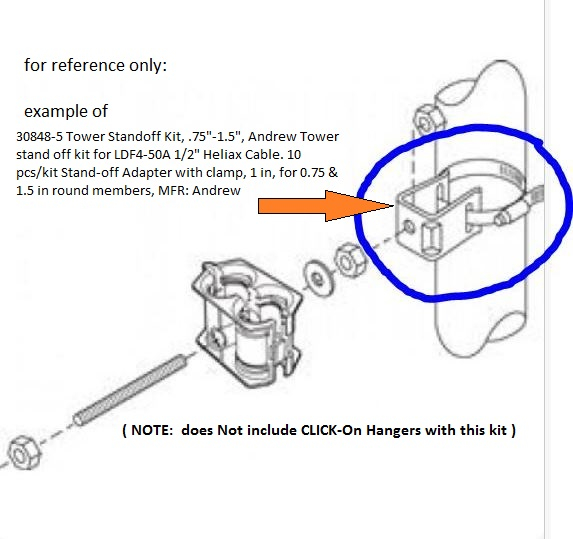

For LDF4-50A 1/2" Heliax Cable.
New Old Stock
MFR: Andrew
| Dimensions | |
| Inside Length | 60.33 mm | 2.38 in |
| Inside Width | 44.45 mm | 1.75 in |
| Outside Length | 38.10 mm | 1.50 in |
| Outside Width | 57.15 mm | 2.25 in |
| General Specifications | |
| Adapter Type | Stand-off adapter |
| Includes | Clamp |
| Material Type | Stainless steel |
| Package Quantity | 10 |
| Mechanical Specifications | |
| Installation Torque, maximum | 13.0 ft lb |
| Installation Torque, minimum | 11.0 ft lb |
| Material Thickness | 2.667 mm | 0.105 in |
| Maximum Loading | Double stack, 1-5/8 in cable |
| Mounting | 3/8 in tapped hole |
| Packed Dimensions | |
| Height | 24.0 cm | 9.4 in |
| Length | 14.0 cm | 5.5 in |
| Shipping Weight | 2.19 kg | 4.82 lb |
| Width | 14.0 cm | 5.5 in |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Andrew |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | ANDREW |
