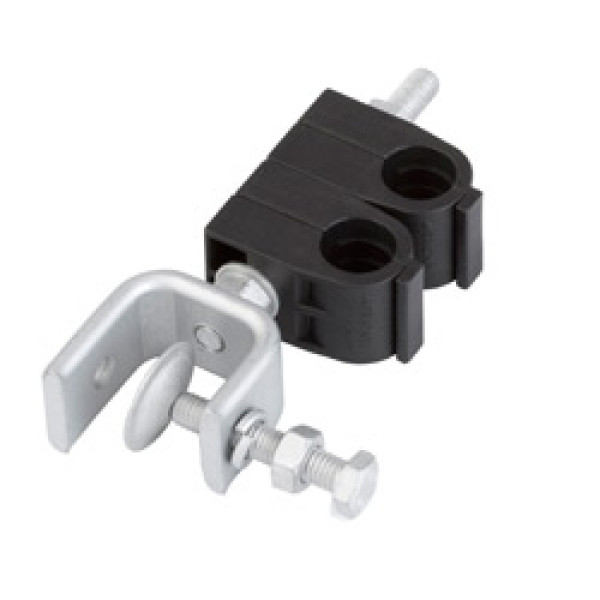

SHK-12-2-P Andrew / CommScope Single Hanger Kit for 1/2 inch Coaxial Cable

In Stock

$7.91

Double stack
Includes hardware and angle adapter
MFR: Andrew / Commscope
NOTE: SPECIAL ORDER. LEAD TIME IS 8 WEEKS ARO

Details

SHK-12-2-P Andrew / CommScope Single Hanger Kit for 1/2 inch Coaxial Cable

MFR: Andrew / Commscope
NOTE: SPECIAL ORDER. LEAD TIME IS 8 WEEKS ARO

Product Classification
Product Type	Hanger kit

Dimensions
Nominal Size	1/2 in
Compatible Diameter, maximum	16.256 mm \| 0.640 in
Compatible Diameter, minimum	15.240 mm \| 0.600 in
Height	52.00 mm \| 2.05 in
Length	46.29 mm \| 1.82 in
Width	25.82 mm \| 1.02 in

Electrical Specifications
DTF Effect	0.1 dB
Return Loss Effect	0.1 dB

Environmental Specifications
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)

General Specifications
Hanger Type	Composite clamp
Brand	ValuSite™
Cables per Hanger	2
Color	Black
Includes	Angle adapter \| Hardware
Material Type	Engineered plastic \| Stainless steel
Maximum Stack Height	2
Ordering Note	CommScope® standard product in Europe, the Middle East, and Africa \| CommScope® standard product in Mexico, Central America, and South America
Package Quantity	1

Mechanical Specifications
Corrosion Resistance, minimum with no degredation	≥500 hours in salt spray chamber
Mounting	M8 hardware
UV Resistance, minimum with no degradation	≥100 hours exposure in accelerated UV life chamber
Vibration Survival	≥4 hours at resonant frequency
Environmental Strength Capability	Double cable weight

Packed Dimensions
Height	30.4 cm \| 12.0 in
Length	2.5 cm \| 1.0 in
Shipping Weight	0.45 kg \| 1.00 lb
Width	27.9 cm \| 11.0 in
