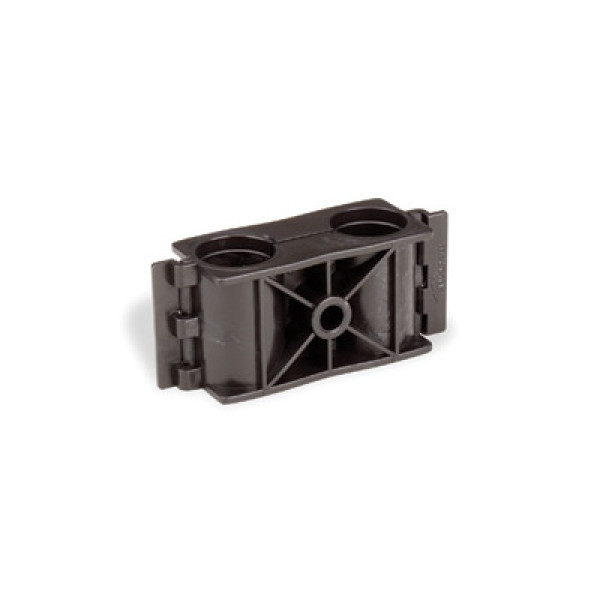

L7CLICK Double Click-on Hanger for 1-5/8 in coaxial cable, 10pcs per box, Andrew
In Stock
$46.95
L7CLICK Double Click-on Hanger for 1-5/8 in coaxial cable, 10pcs per box, Andrew
Details
L7CLICK Double Click-on Hanger for 1-5/8 in coaxial cable, 10pcs per box, Andrew
| Product Classification | |
| Product Type | Hanger kit |
| |
|
| Dimensions | |
| Nominal Size | 1-5/8 in |
| Compatible Diameter, maximum | 50.800 mm | 2.000 in |
| Compatible Diameter, minimum | 49.022 mm | 1.930 in |
| Height | 51.00 mm | 2.01 in |
| Length | 154.80 mm | 6.09 in |
| Width | 79.40 mm | 3.13 in |
| |
|
| Electrical Specifications | |
| DTF Effect | 0.1 dB |
| Return Loss Effect | 0.1 dB |
| |
|
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| |
|
| General Specifications | |
| Hanger Type | Click-on hanger |
| Cables per Hanger | 1 |
| Color | Black |
| Material Type | Engineered plastic |
Maximum Stack Height  |
3 |
| Ordering Note | CommScope® standard product in the United States and Canada |
| Package Quantity | 10 |
| |
|
| Mechanical Specifications | |
| Mounting | 3/8 in (M10) drilled cable ladder |
| UV Resistance, minimum with no degradation | ≥100 hours exposure in accelerated UV life chamber |
| Vibration Survival | ≥4 hours at resonant frequency |
| Environmental Strength Capability | Double cable weight |
| |
|
| Packed Dimensions | |
| Height | 12.9 cm | 5.1 in |
| Length | 5.9 cm | 2.3 in |
| Shipping Weight | 1.60 kg | 3.53 lb |
| Width | 5.5 cm | 2.2 in |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | No |
| Condition | New |
| NOS | N/A |
| Call For Price | N/A |
| Manufacturer Name | Andrew / Commscope |
