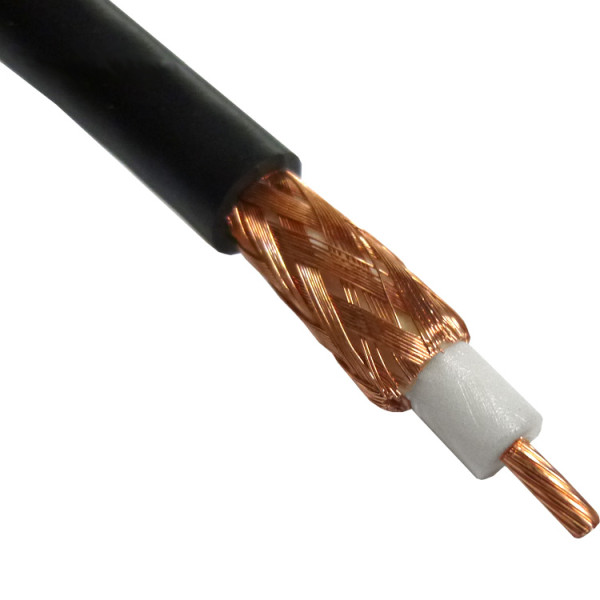

RG8X Belden Flexible Coaxial Cable 0.240 Diameter with Stranded Center Conductor
In Stock
$1.91
Dielectric: Foam Polyethylene
Outer Conductor: 90% Bare Copper Braid
Inner Conductor: Stranded Bare Copper
Min. Bending Radius(in): 2.4"
Overall Diameter(in) .242
Jacket Material: Black PVC
Impedance: 50 Ohm
Cable Type: RG8X
Rohs Compliant
YR41150 (Commercial Version)
MFR: Belden
SKU: RG8X-BEL
Sold by the foot - Minimum Order 5 Feet
NOTE: We have various cut lengths available (End of reels, etc). Please contact our sales staff at 800-RFPARTS (1-800-737-2787) for details.
Details
RG8X Belden Flexible Coaxial Cable 0.240 Diameter with Stranded Center Conductor
Sold by the foot - Minimum Order 5 Feet
| Attenuation (dB)/100 Ft. | |
| 30 MHz | 1.9 |
| 150 MHz | 4.6 |
| 450 MHz | 8.6 |
| 824 MHz | 12.2 |
| 960 MHz | 13.3 |
| 1500 MHz | 16.6 |
| 2000 MHz | 19.2 |
| 2300 MHz | 20.6 |
| 5800 MHz | 32.8 |
| General Characteristics | |
| Max. Frequency | N/A |
| Propagation Velocity | 82% |
| Overall Diameter(in) | .242 |
| Dielectric | Foam Polyethylene |
| Outer Conductor | 90% Bare Copper Braid |
| Inner Conductor | Stranded Bare Copper |
| Min. Bending Radius(in) | 2.4" |
| Warranty | 10 Year |
| Shipping Method | UPS |
| Jacket Material | Black PVC |
| Ship Weight (lbs.) | 20 |
| Impedance | 50 Ohm |
| Cable Type | RG8X Type |
MFR: Belden
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Belden |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Belden |
