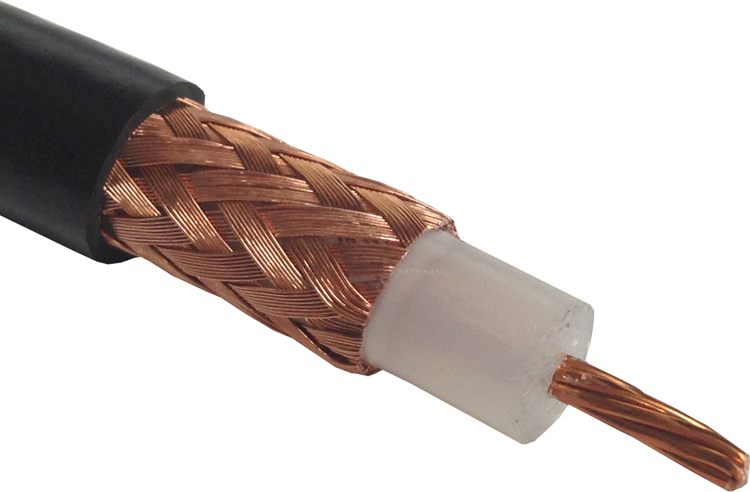

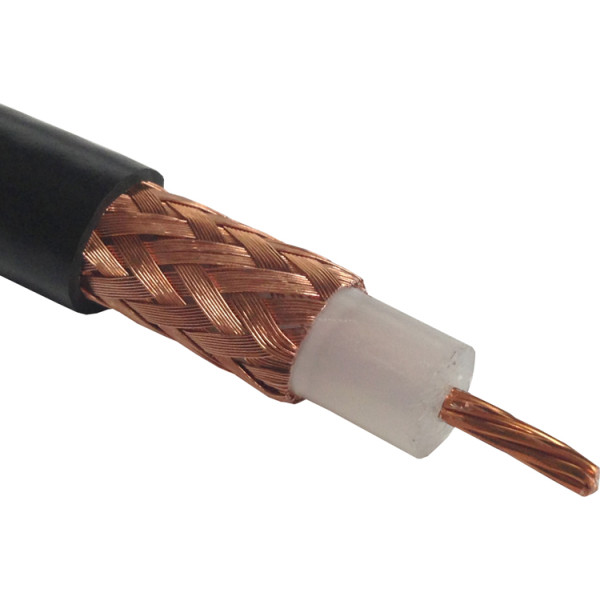

RG213/U Belden Flexible Coaxial Cable 0.405 Diameter with Stranded Center Conductor
Made in the USAIn Stock
$3.90
Cable Type: RG213/U
Dielectric: Solid Polyethylene
Outer Conductor: 90% Bare Copper Braid
Inner Conductor: Stranded Bare Copper
Min. Bending Radius(in): 4.5"
Overall Diameter(in) .405
Jacket Material: Black PVC
Impedance: 50 Ohm
MFR: Belden
SKU: RG213/U
Sold by the foot - Minimum order 5 feet
NOTE: Commercial cable, not Mil-Spec. See 8267 for Mililitary Spec RG213-Mil
Details
RG213/U Belden Flexible Coaxial Cable 0.405 Diameter with Stranded Center Conductor
Sold by the foot - Minimum order 5 feet
Commercial grade, not mil spec. YR41136
MFR: Belden
| Attenuation (dB)/100 Ft. | |
| 30 MHz | 0.98 |
| 150 MHz | 2.3 |
| 450 MHz | 4.7 |
| 824 MHz | 7.2 |
| 960 MHz | 7.8 |
| 1500 MHz | 10.7 |
| 2000 MHz | 13.1 |
| 2300 MHz | 14.5 |
| 5800 MHz | 28 |
| General Characteristics | |
| Max. Frequency | N/A |
| Propagation Velocity | 66% |
| Overall Diameter(in) | .405 |
| Dielectric | Solid Polyethylene |
| Outer Conductor | 90% Bare Copper Braid |
| Inner Conductor | Stranded Bare Copper |
| Min. Bending Radius(in) | 4.5" |
| Warranty | 10 Year |
| Shipping Method | UPS |
| Jacket Material | Black PVC |
| Ship Weight (lbs.) | 50 |
| Impedance | 50 Ohm |
| Cable Type | RG213/U Type |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Belden |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | BELDEN |
