CNT400DB Andrew Direct Burial Coax Cable (NOS)
In Stock
$1.91
Solid Center Conductor
Cable Group I
Sold by the foot - Minimum Order 5 Feet
New Old Stock * No longer available for export
MFR: Andrew/Commscope
SKU: CNT400DB
Details

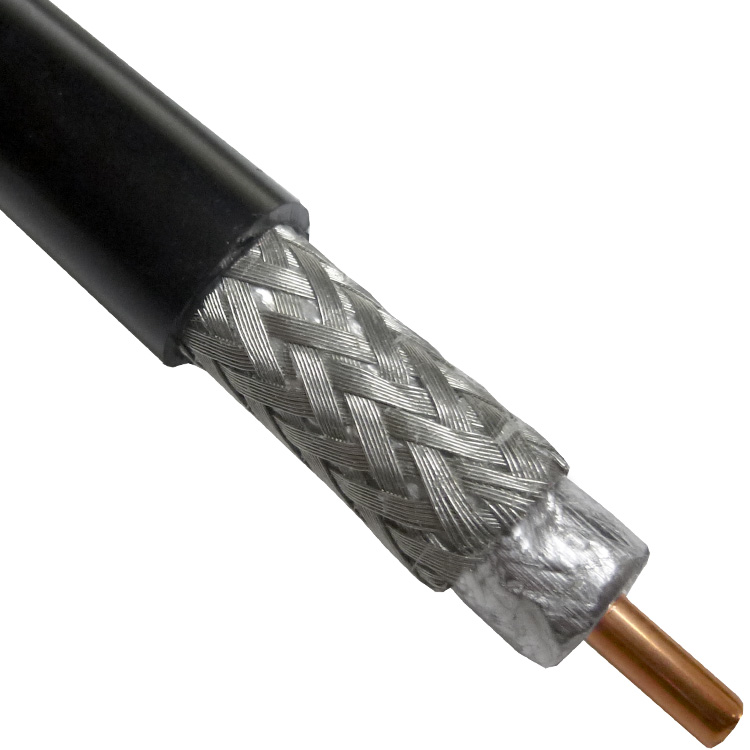

CNT400DB Andrew .405 od Direct Burial Coax Cable (NOS)
Sold by the foot - Minimum Order 5 Feet
New Old Stock - No longer available for export
MFR: Andrew / Commscope
| Construction Materials | |
| Jacket Color | Black |
| Jacket Material | PE |
| Braid Material | Tinned copper |
| Corrosion Protection | Water blocking swellable powder |
| Shield Tape Material | Aluminum |
| Dielectric Material | Foam PE |
| Inner Conductor Material | Copper-clad aluminum wire |
| Dimensions | |
| Cable Weight | 0.07 kg/m |
| Diameter Over Dielectric | 7.240 mm | 0.285 in |
| Diameter Over Jacket | 10.290 mm | 0.405 in |
| Diameter Over Tape | 7.391 mm | 0.291 in |
| Inner Conductor OD | 2.7400 mm | 0.1080 in |
| Nominal Size | 0.400 in |
| Outer Conductor OD | 8.080 mm | 0.318 in |
| Electrical Specifications | |
| Cable Impedance | 50 ohm |
| Capacitance | 78.0 pF/m | 24.0 pF/ft |
| dc Resistance, Inner Conductor | 4.490 ohms/km | 1.370 ohms/kft |
| dc Resistance, Outer Conductor | 5.610 ohms/km | 1.710 ohms/kft |
| dc Test Voltage | 2500 V |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Maximum Frequency | 16.20 GHz |
| Operating Frequency Band | 30 – 6000 MHz |
| Peak Power | 16.0 kW |
| Shielding Effectiveness | >90 dB |
| Velocity | 85% |
| Environmental Specifications | |
| Installation Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| Water Jetting Test Method | GR-421-CORE, Section 4.3.5.1 |
| General Specifications | |
| Cable Type | CNT-400 |
| Braid Coverage | 86% braid |
| Brand | CNT® |
| Packaging Type | Reel |
| Mechanical Specifications | |
| Bending Moment | 0.7 N-m | 0.5 ft lb |
| Flat Plate Crush Strength | 0.7 kg/mm | 40.0 lb/in |
| Minimum Bend Radius, Single Bend | 25.40 mm | 1.00 in |
| Tensile Strength | 73 kg | 160 lb |
Electrical Performance
| Frequency | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
| 30 MHz | 2.49 | 0.76 |
| 50 MHz | 3.18 | 0.97 |
| 150 MHz | 4.92 | 1.50 |
| 220 MHz | 6.23 | 1.90 |
| 450 MHz | 8.86 | 2.70 |
| 900 MHz | 12.80 | 3.90 |
| 1500 MHz | 16.70 | 5.10 |
| 1800 MHz | 18.40 | 5.60 |
| 2000 MHz | 19.40 | 5.90 |
| 2400 MHz | 21.65 | 6.60 |
| 2500 MHz | 22.00 | 6.70 |
| 3000 MHz | 24.60 | 7.50 |
| 4000 MHz | 28.87 | 8.80 |
| 4500 MHz | 30.84 | 9.40 |
| 5000 MHz | 32.81 | 10.00 |
| 5200 MHz | 33.46 | 10.20 |
| 5500 MHz | 34.78 | 10.60 |
| 5800 MHz | 35.76 | 10.90 |
| 6000 MHz | 36.42 | 11.10 |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Andrew / Commscope |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | TALLEY INC. |
