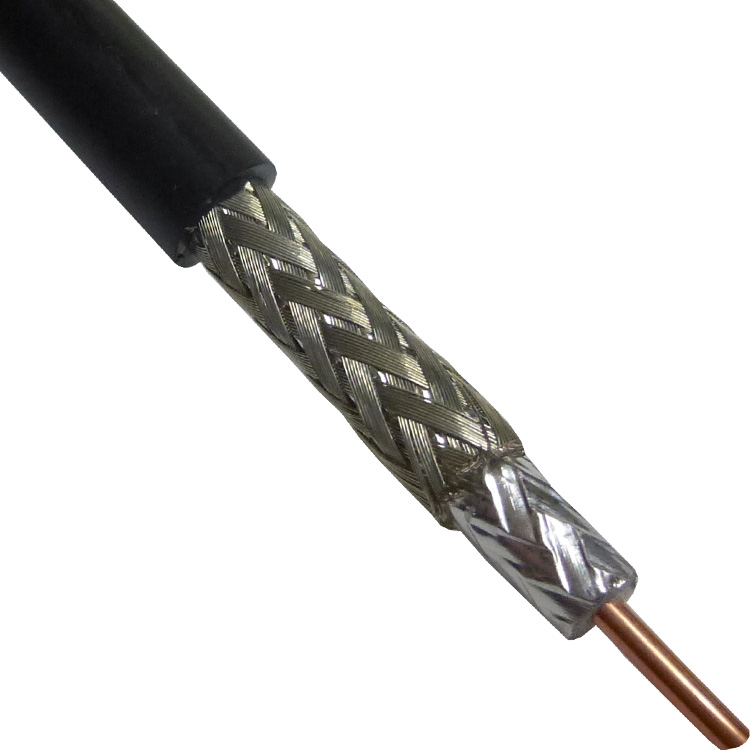

CNT240 Andrew 0.240 Diameter Solid Center Conductor Coax Cable (NOS)
In Stock
$0.91
Black Jacket
0.240 diameter
Cable Group X
Sold by the foot - Minimum Order 5 Feet
New Old Stock * no longer available for export
MFR: Andrew / Commscope
SKU: CNT240
Details
CNT240 Solid Center Conductor Coax Cable with Black Jacket (NOS)
Sold by the foot - Minimum Order 5 Feet
New Old Stock * No longer available for export
MFR: Andrew / Commscope
| Product Type | Braided coaxial cable |
| Product Brand | CNT® |
| Product Series | CNT-240 |
General Specifications
| Braid Coverage | 90 % |
| Cable Type | CNT-240 |
| Jacket Color | Black |
Dimensions
| Diameter Over Dielectric | 3.81 mm | 0.15 in |
| Diameter Over Jacket | 6.1 mm | 0.24 in |
| Diameter Over Tape | 3.987 mm | 0.157 in |
| Inner Conductor OD | 1.42 mm | 0.056 in |
| Outer Conductor OD | 4.52 mm | 0.178 in |
| Nominal Size | 0.240 in |
Electrical Specifications
| Cable Impedance | 50 ohm |
| Capacitance | 79.8 pF/m | 24.323 pF/ft |
| dc Resistance, Inner Conductor | 11.1 ohms/km | 3.383 ohms/kft |
| dc Resistance, Outer Conductor | 12.76 ohms/km | 3.889 ohms/kft |
| dc Test Voltage | 2500 V |
| Jacket Spark Test Voltage (rms) | 2500 V |
| Maximum Frequency | 31 GHz |
| Operating Frequency Band | 30 – 6000 MHz |
| Peak Power | 5.6 kW |
| Shielding Effectiveness | 90 dB |
| Velocity | 83 % |
Attenuation
| Frequency | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
| 30.0 MHz | 4.900 | 1.500 |
| 50.0 MHz | 6.200 | 1.900 |
| 150.0 MHz | 10.200 | 3.100 |
| 220.0 MHz | 12.500 | 3.800 |
| 450.0 MHz | 17.400 | 5.300 |
| 900.0 MHz | 24.900 | 7.600 |
| 1800.0 MHz | 35.750 | 10.900 |
| 2500.0 MHz | 42.310 | 12.900 |
| 3000.0 MHz | 46.480 | 14.170 |
| 4000.0 MHz | 53.920 | 16.440 |
| 4500.0 MHz | 57.300 | 17.470 |
| 5000.0 MHz | 60.510 | 18.450 |
| 5200.0 MHz | 61.760 | 18.830 |
| 5500.0 MHz | 63.600 | 19.390 |
| 5800.0 MHz | 66.900 | 20.400 |
| 6000.0 MHz | 73.820 | 22.500 |
Material Specifications
| Braid Material | Tinned copper |
| Dielectric Material | Foam PE |
| Jacket Material | Non-halogenated PE |
| Inner Conductor Material | Copper |
| Shield Tape Material | Aluminum |
Mechanical Specifications
| Minimum Bend Radius, Single Bend | 19.05 mm | 0.75 in |
| Tensile Strength | 36 kg | 79.366 lb |
| Bending Moment | 0.3 N-m | 2.655 in lb |
| Flat Plate Crush Strength | 0.4 kg/mm | 22.399 lb/in |
Environmental Specifications
| Installation temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Andrew / Commscope |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Commscope |
