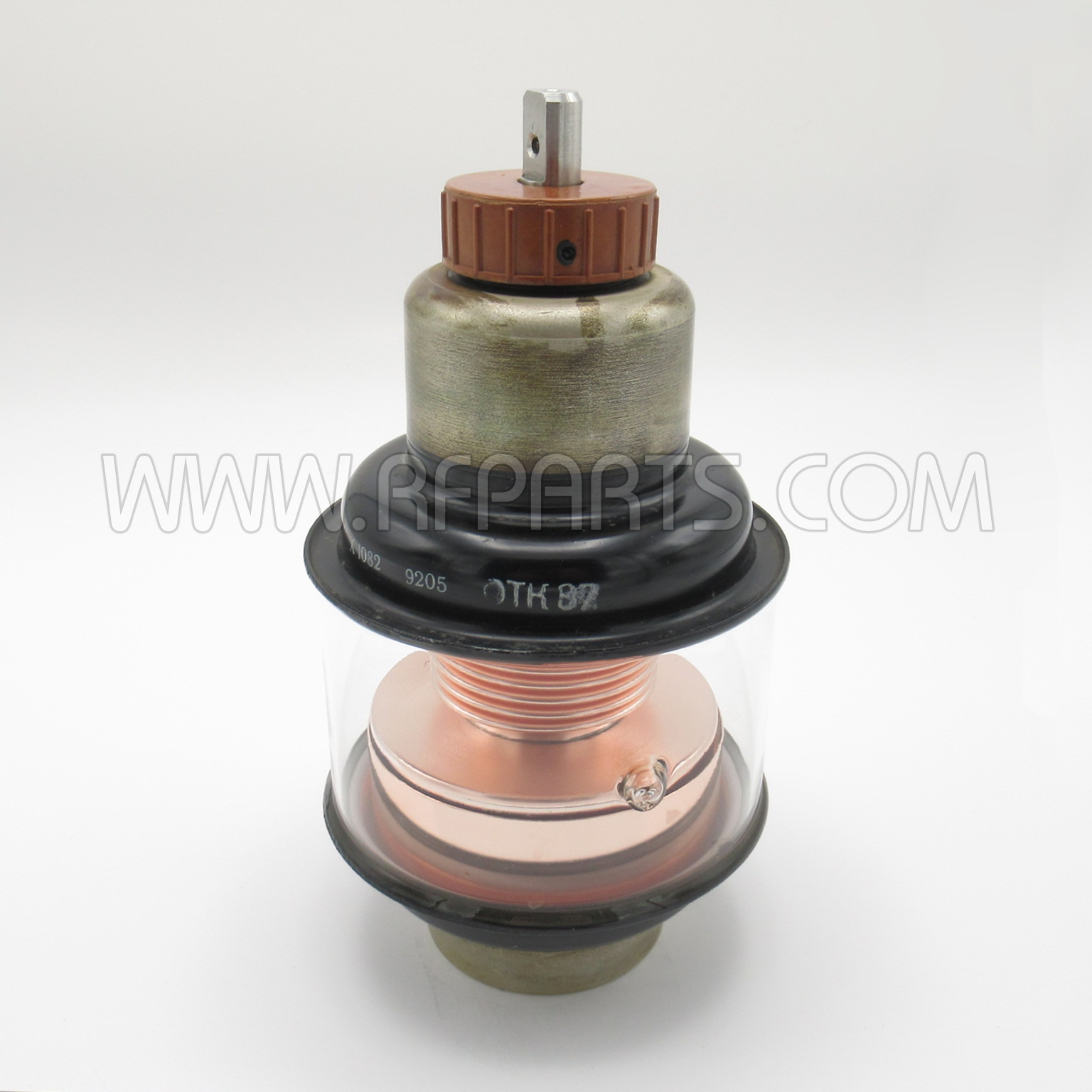

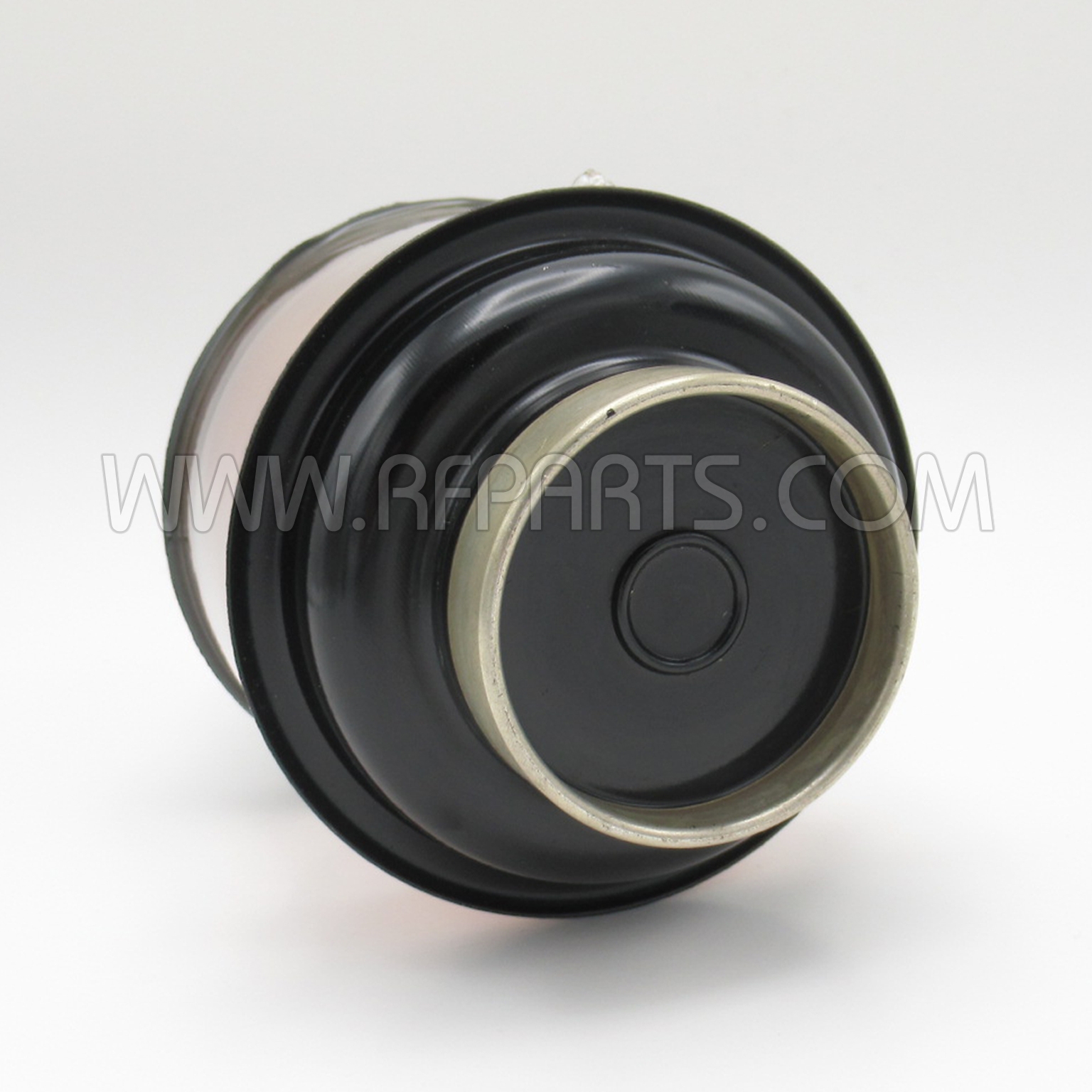

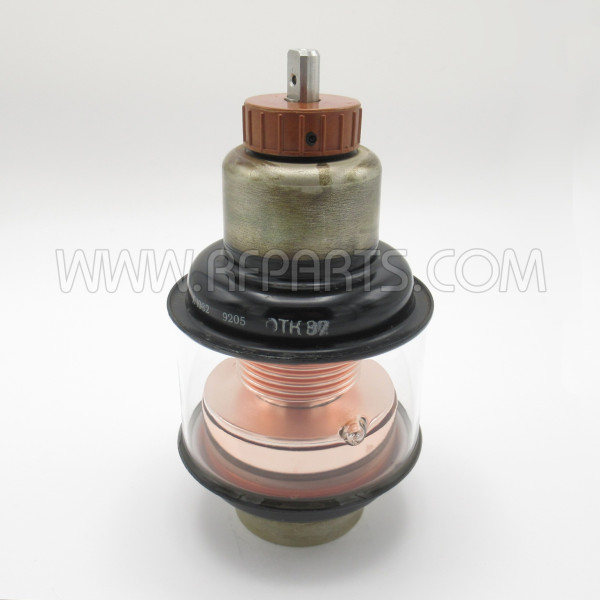

KPI-8 Polaron Vacuum Variable Capacitor 15-750pf 5kV (Pull)
In Stock
The glass-metal sheath is designed for operation in DC, AC circuits and in pulsed modes. Has very exact and stable parameters.
Min. capacity: 15pF
Max. capacity: 750pF
Max. operating voltage: 5kV
Nominal current at 30MHz: 35A
MFR: Polaron
SKU: KPI-8
Details
KPI-8 Polaron Vacuum Variable Capacitor 15-750pf 5kV (Pull)
The glass-metal sheath is designed for operation in DC, AC circuits and in pulsed modes. Has very exact and stable parameters.
Min. capacity: 15pF
Max. capacity: 750pF
Max. operating voltage: 5kV
Nominal current at 30MHz: 35A
Frequency range up to: 30MHz
Diameter: 103.26mm (4.065inch)
Height: 198mm (7.8 inch)
Contact rings: 57.08mm (2. inch)
Tuning shaft diameter: 0.9cm x 20cm (0.36 inch Diameter x 7.87 inch long)
Temperature of work °C : -30 +120 (°F: -22 +248)
MFR: Polaron
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Polaron |
