EL7.5-200S-333 Energy Labs Vacuum Variable Capacitor 10-205pf 7.5kv Peak (Pull)
Made in the USAIn Stock
Capacitance: 10-205 pf
Voltage Rating: 7.5 KV
Current Rating: 57 Amps RMS
Max Length 7.25 in
Max Diameter 3.05 in
Weight 3.75 lbs
Used clean * No longer available for export
MFR: Energy Laboratories Inc.
SKU: EL7.5-200S-333
Details

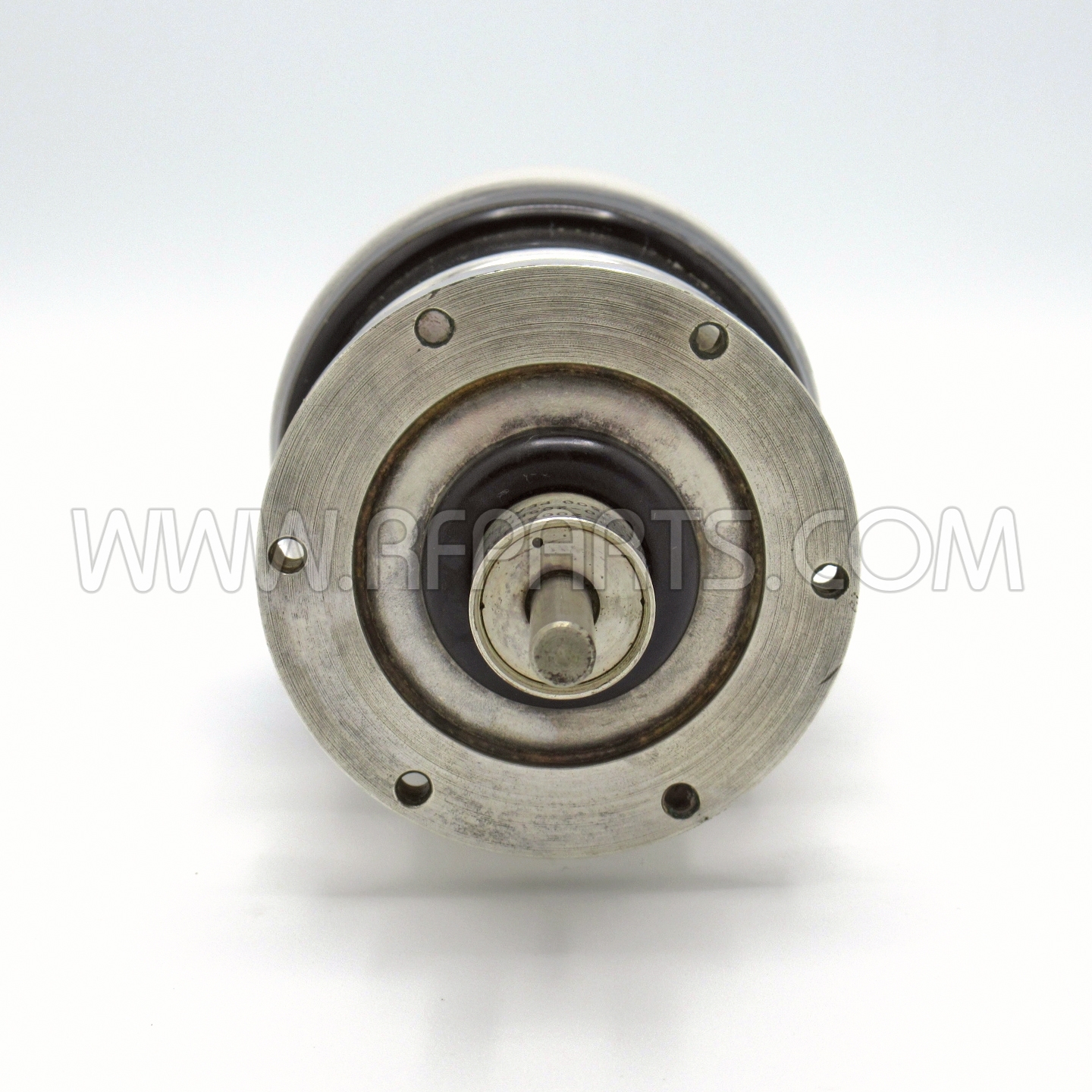

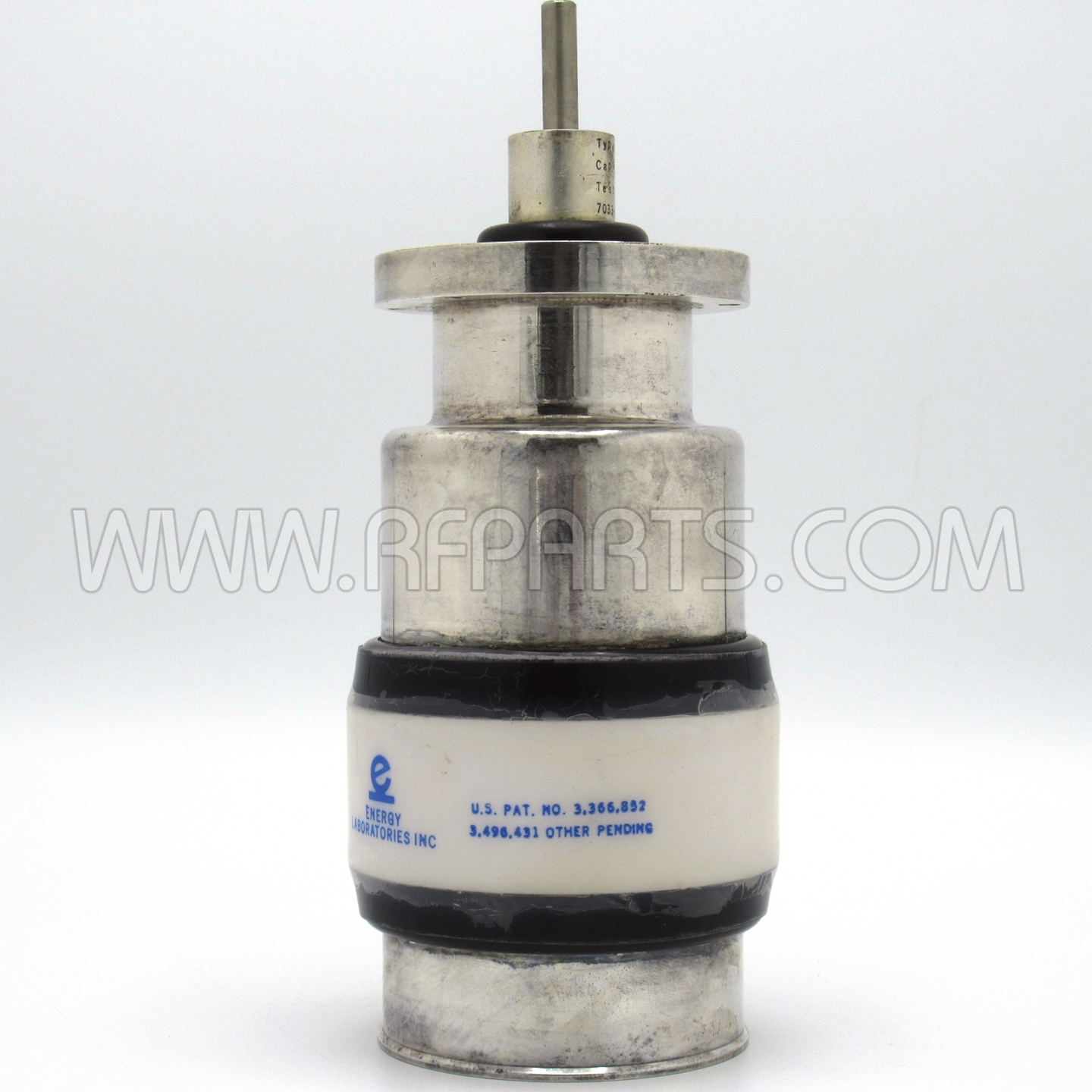

EL7.5-200S-333 Energy Labs Vacuum Variable Capacitor 10-205pf 7.5kv Peak (Pull)
This variable capacitor is identical to Jennings CHV1-200-7.
Capacitance: 10-205 pf
Voltage Rating: 7.5 KV
Current Rating: 57 Amps RMS
Max Length 7.25 in
Max Diameter 3.05 in
Weight 3.75 lbs

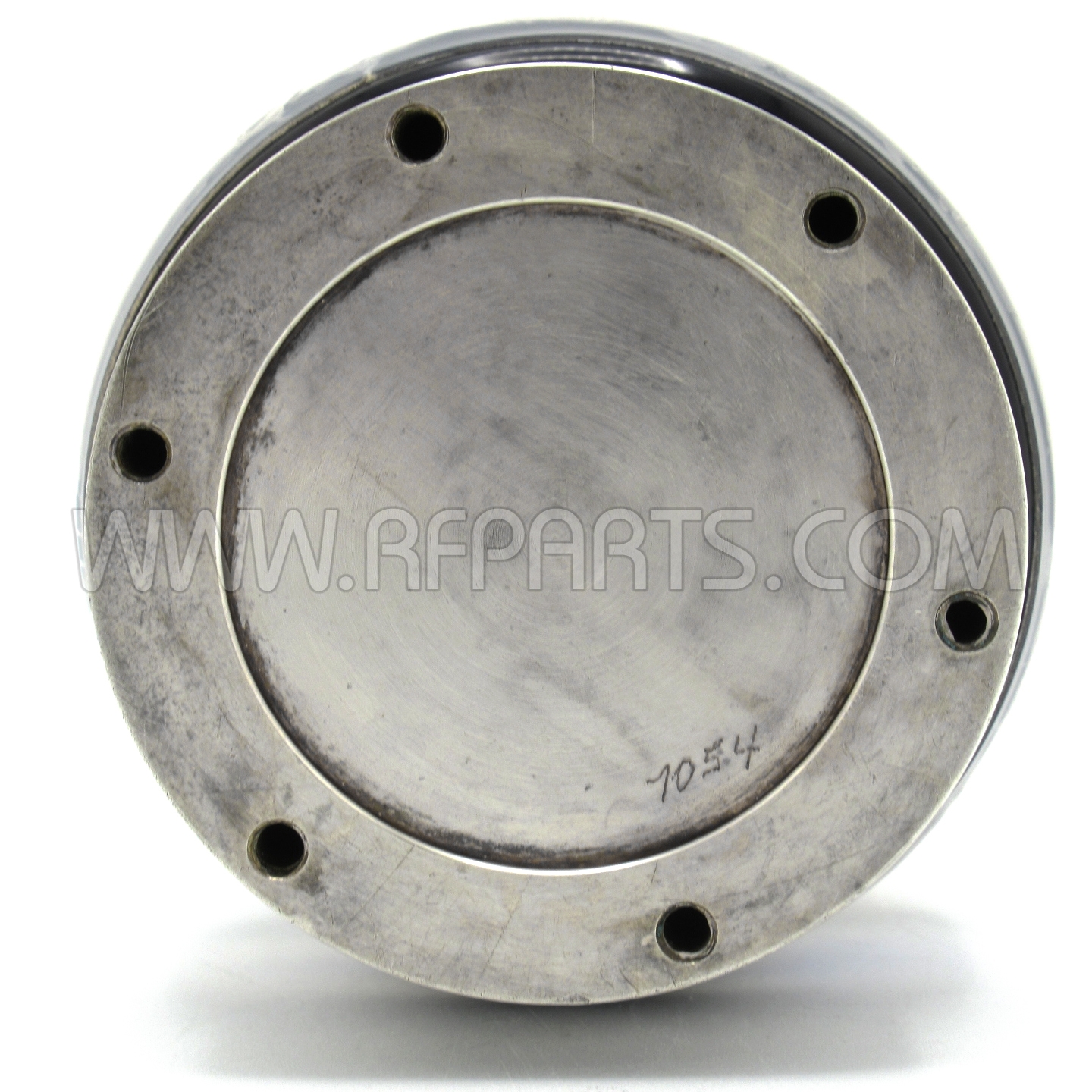

Mounting: Permanently attached flanges with 6 drilled and tapped holes for front and rear end mounting
Shaft Round - 1/4"
Clean Used * Removed from equipment * checked and guaranteed.
No longer available for export
MFR: Energy Laboratories inc.
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | No |
| Condition | No |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Energy Labs |
