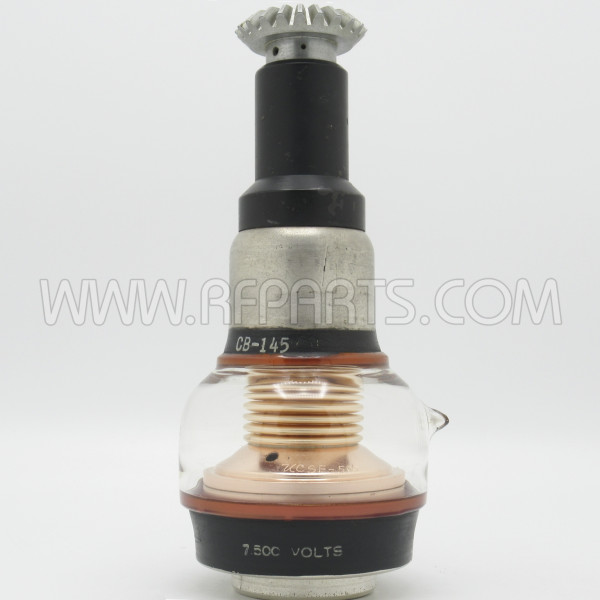

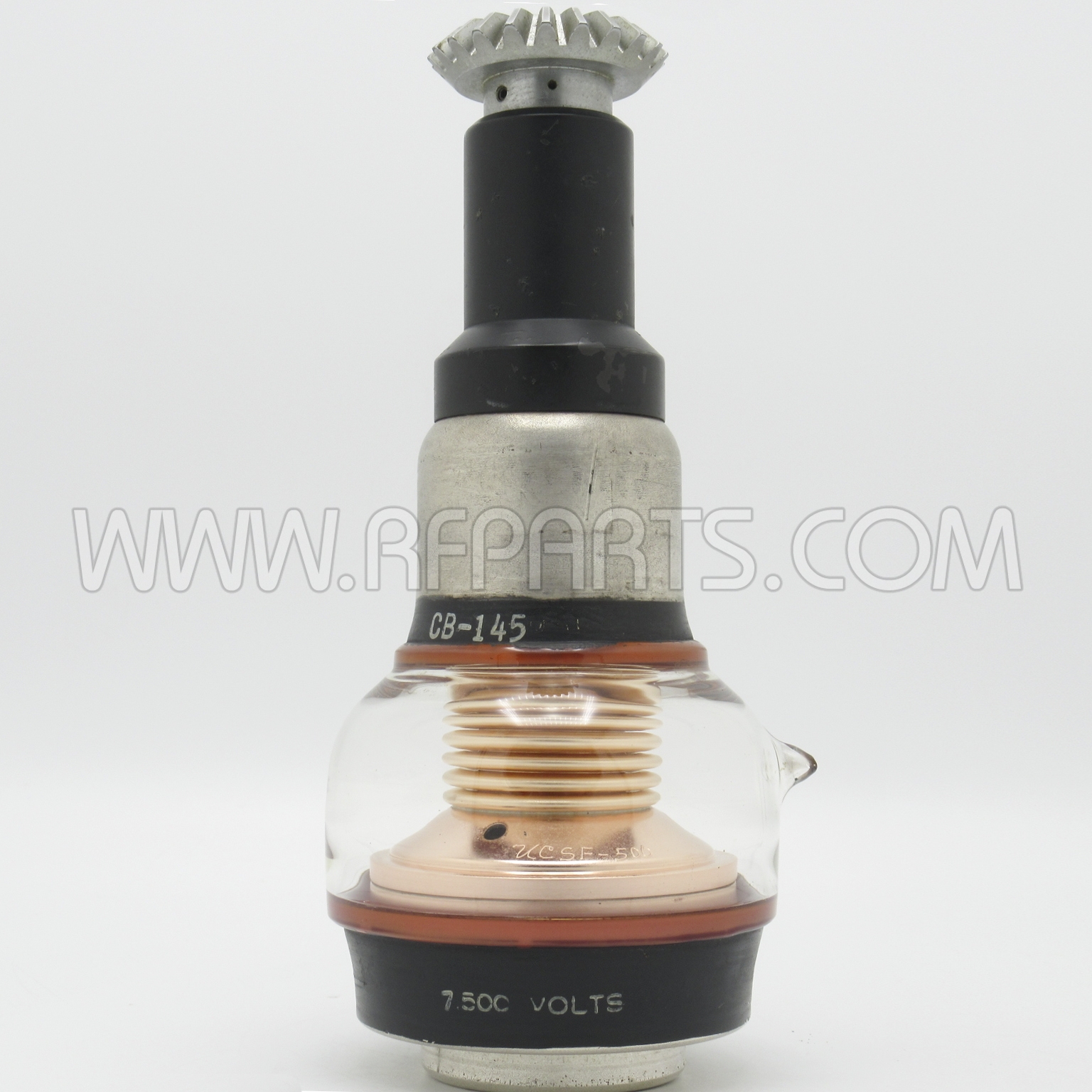

UCSF-500-7.5S Jennings 7.5KV 12-500pF Vacuum Variable Capacitor (Pull)
Made in the USAIn Stock
$212.91
Rated Capacitance: 12-500 pF
Peak Voltage: 7.5 KV
Current Amps (RMS) Maximum : 55 Amps (Estimated)
Used
MFR: Jennings
SKU: UCSF-500-7.5S-P
Details
UCSF-500-7.5S Jennings 7.5KV 12-500pF Vacuum Variable Capacitor (Pull)
Rated Capacitance: 12-500 pF
Peak Voltage: 7.5 KV
Current Amps (RMS) Maximum : 55 Amps (Estimated)
Shaft Diameter: 1/2 inch
Turns for Full Travel Max: 31
Max Length: 8.02 in / 203.71 mm (including shaft)
Max Diameter: 3.56 in / 90.49 mm
Weight: 32.23oz / 913.71g
Used
MFR: Jennings
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Jennings |
| Condition | Used |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Jennings |
