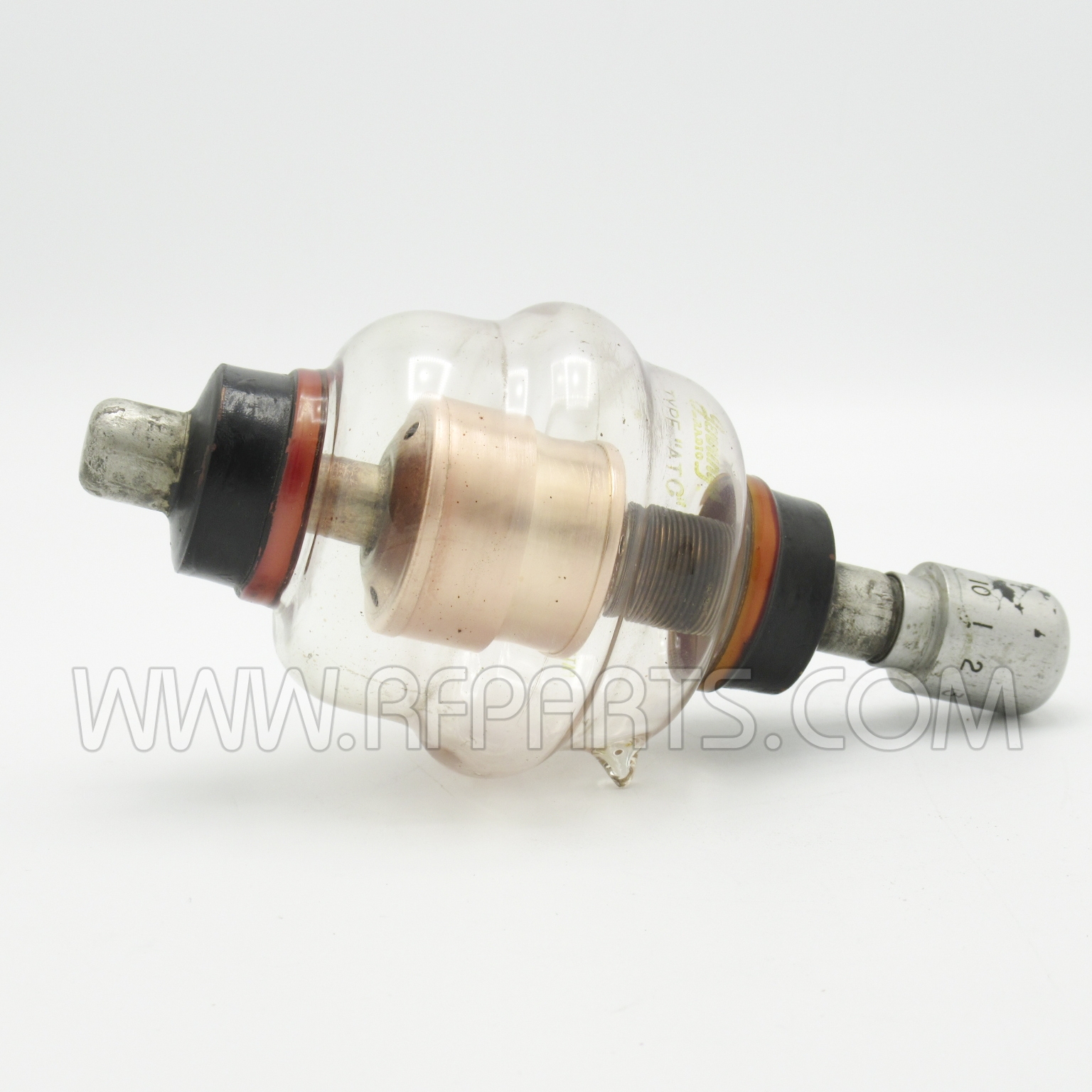

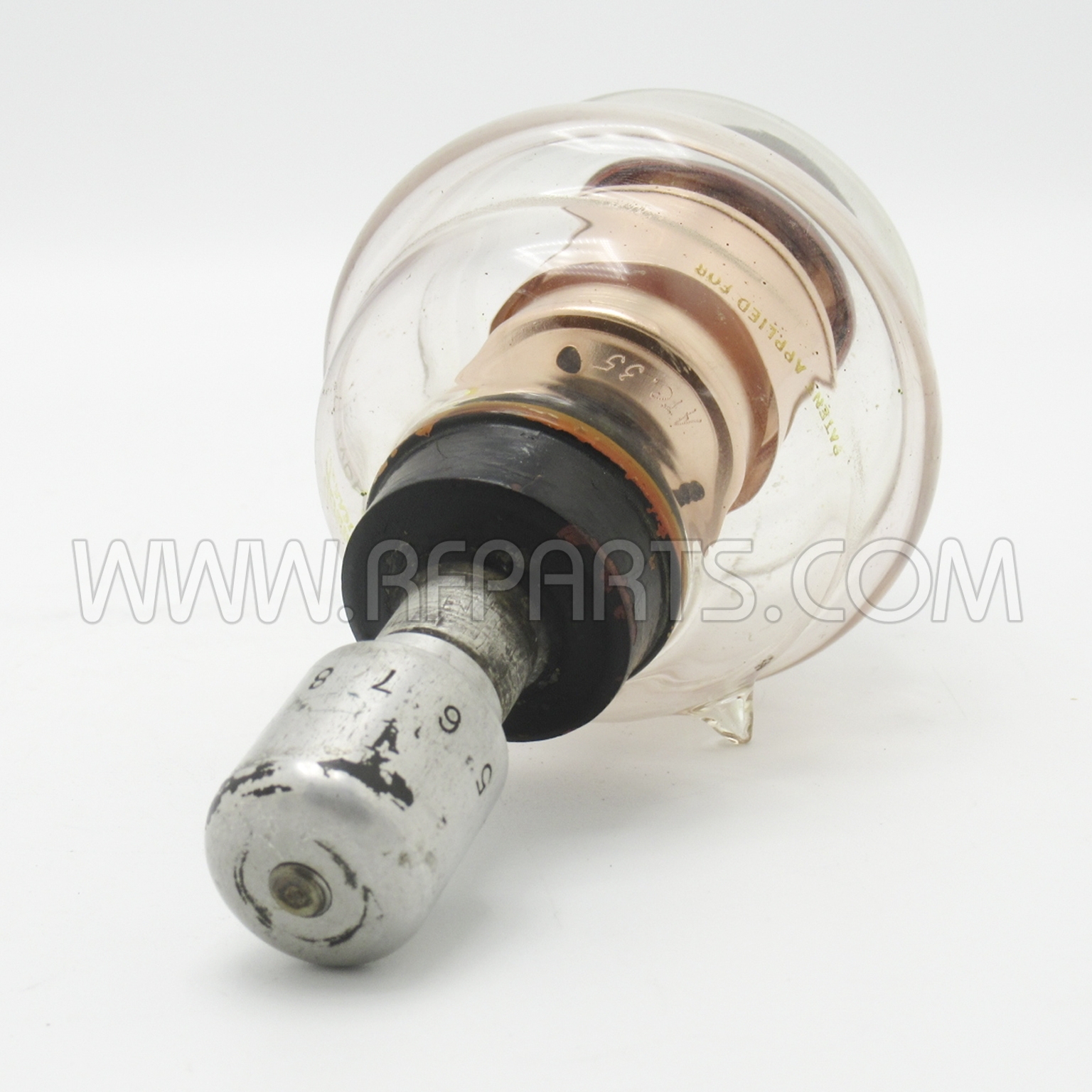

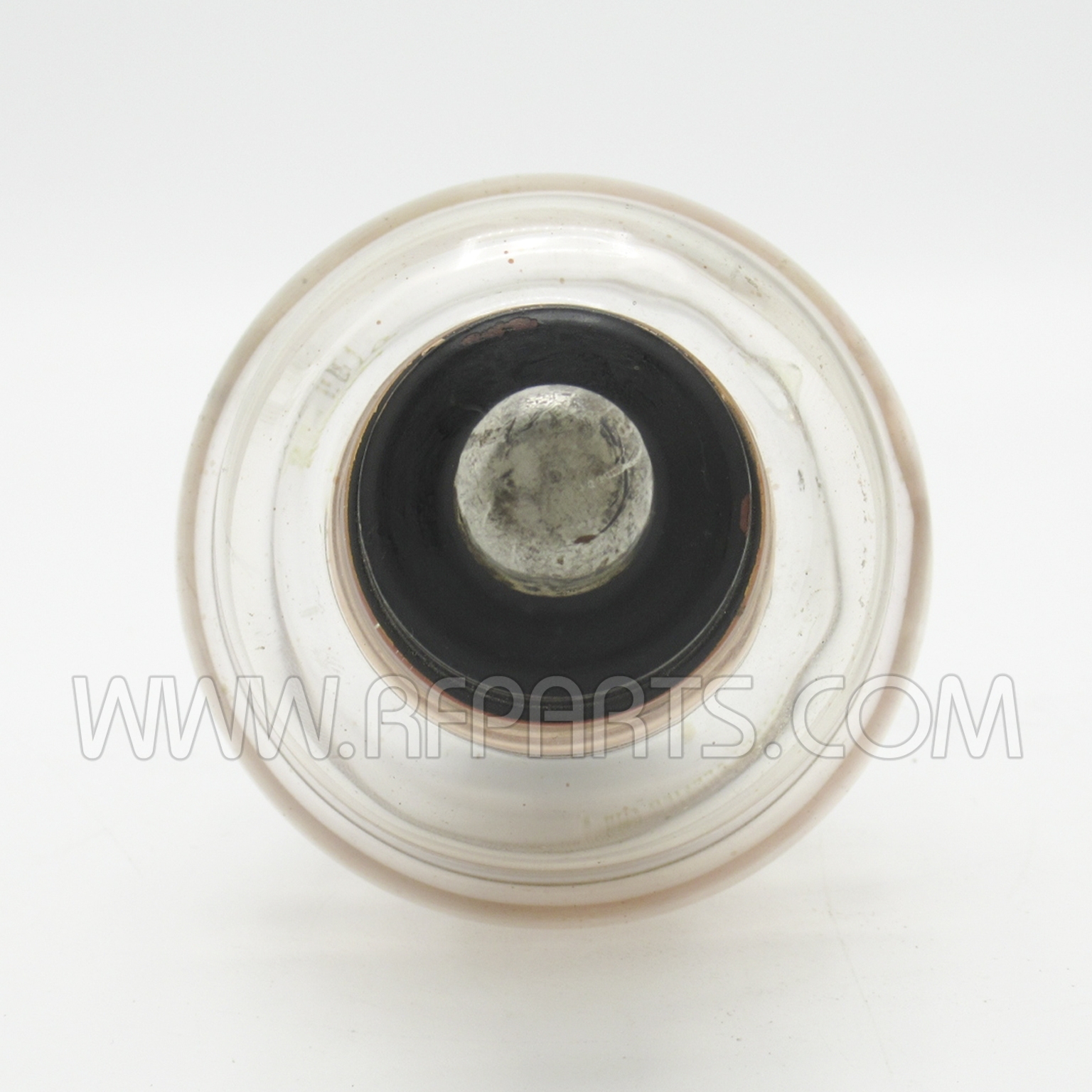

ATC-35-20 20KV 18-35pF Jennings Variable Vacuum Capacitor (Pull)
Made in the USAIn Stock
$50.91
Rated Capacitance:18-35 pF
Peak Voltage: 20 KV
Current Amps (RMS) Maximum : 20 Amps
Used
MFR: Jennings
SKU: ATC-35-20-P
Details
ATC-35-20 20KV 18-35pF Jennings Variable Vacuum Capacitor (Pull)
Rated Capacitance:18-35 pF
Peak Voltage: 20 KV
Current Amps (RMS) Maximum : 20 Amps
Shaft Diameter: 7/8 inch (knob style shaft)
Turns for Full Travel Max: 17
Max Length: 6.25 in / 158.75 mm (including shaft)
Max Diameter: 3.50 in / 88.90 mm
Weight: 8.32oz / 235.87g
Used
MFR: Jennings
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | Used |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Jennings |
