8322 Bird Electronics Tenuline® Oil Filled Fixed Attenuator 200 Watt 30dB Type-N Female (NOS)

Made in the USA

In Stock

$329.91

Bird Fixed Attenuator Oil Filled 200 Watt 30dB Type-N Female/Female (NOS)
MFR: Bird Electronics, USA
SKU: BIRD8322

Details

8322 Bird Electronics Tenuline^® Oil Filled Fixed Attenuator 200 Watt 30dB Type-N Female (NOS)

Oil Filled Fixed Attenuator. 200 watts with Type-N Female QC connectors on either side. Still in original packaging.
Power Rating: 200 watt
Frequency Range & VSWR: 1.1 max. dc to 500 MHz
Attenuation: 30dB
Accuracy: +/- .5dB
Ambient Temperature Range: -40°C to +45°C
Connectors: QC Type N Female
Coolant: 0.9 gal. Refined Mineral Oil
Nominal Size: (Includes Connectors) 17-1/2" x 8-1/2" x 5-15/16" (445 x 216 x 151mm)
Weight: 19lbs (9kg)

MFR: Bird Electronics

New Old Stock, Not for Export

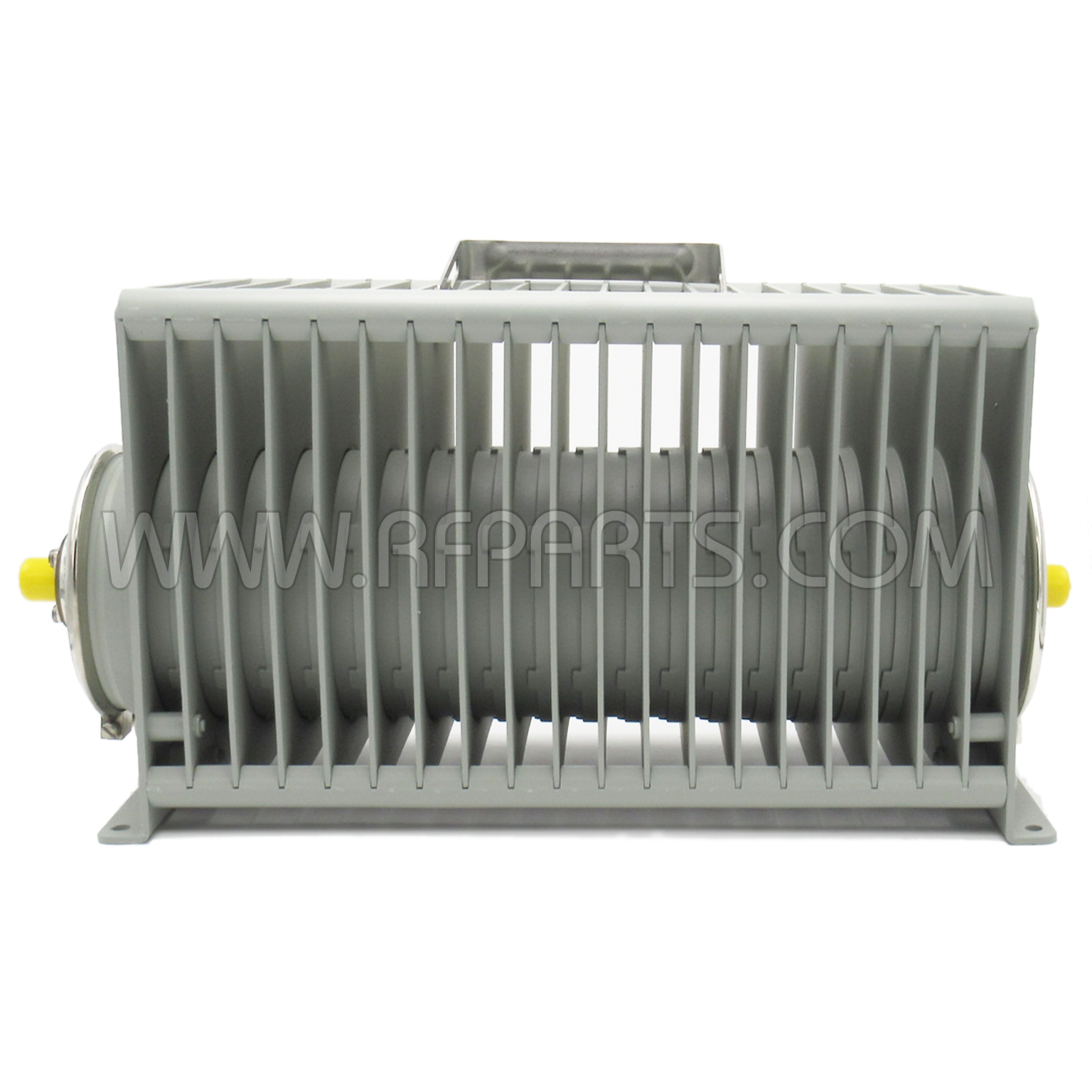

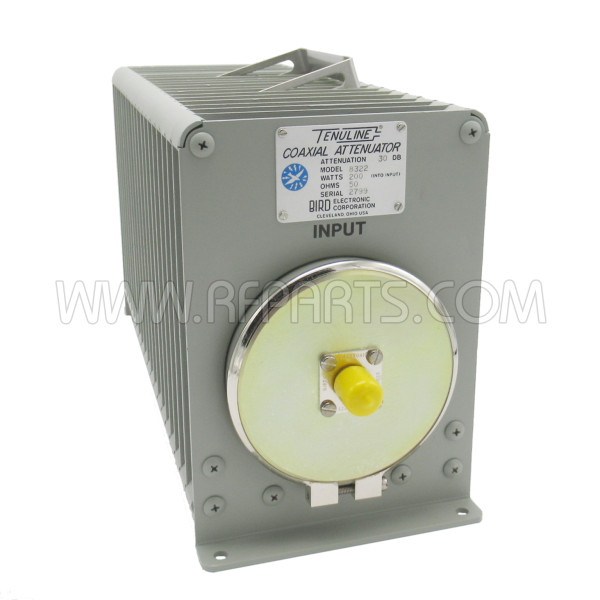

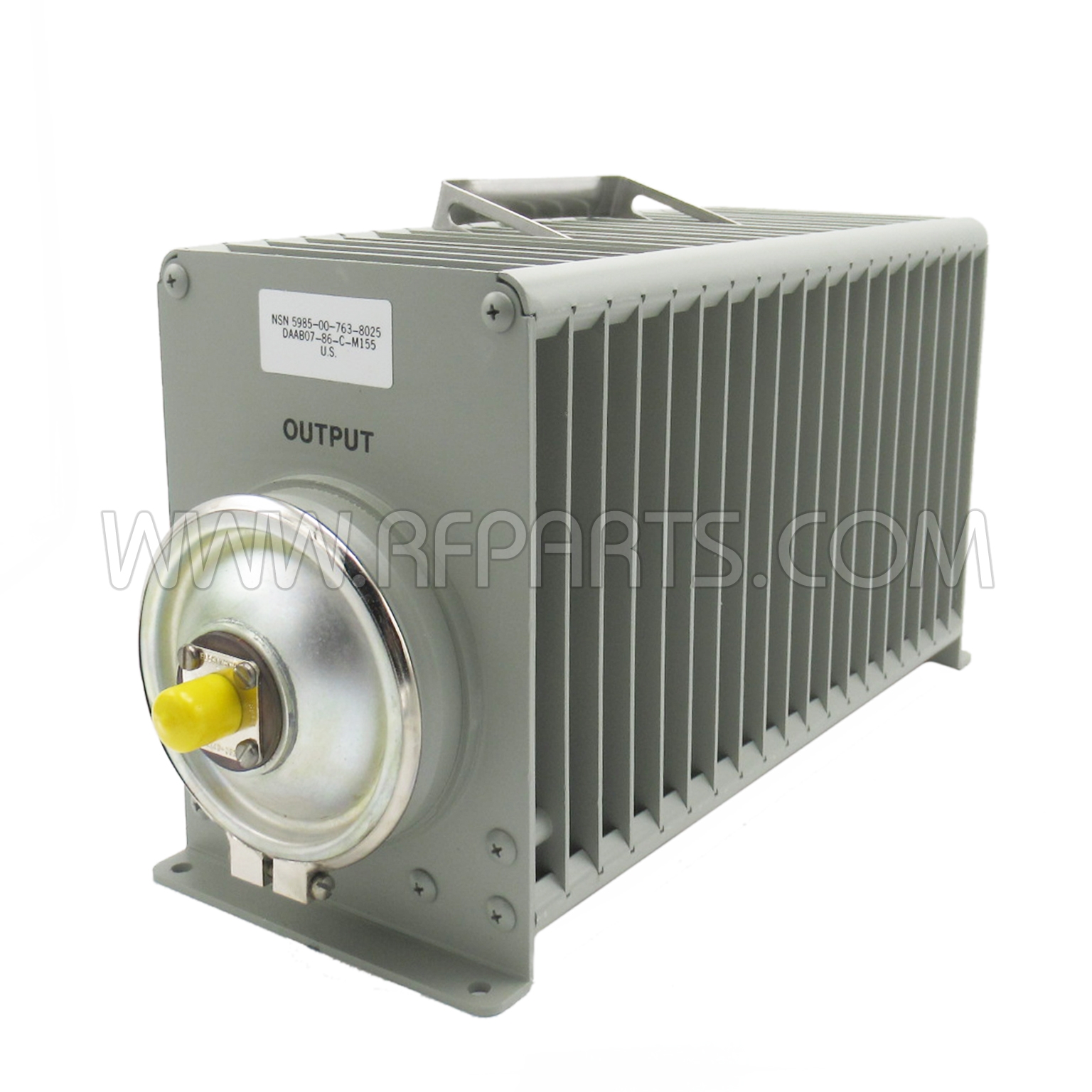

NOTE: Picture for reference only. This Attenuator is no longer produced by Bird Electronics.
