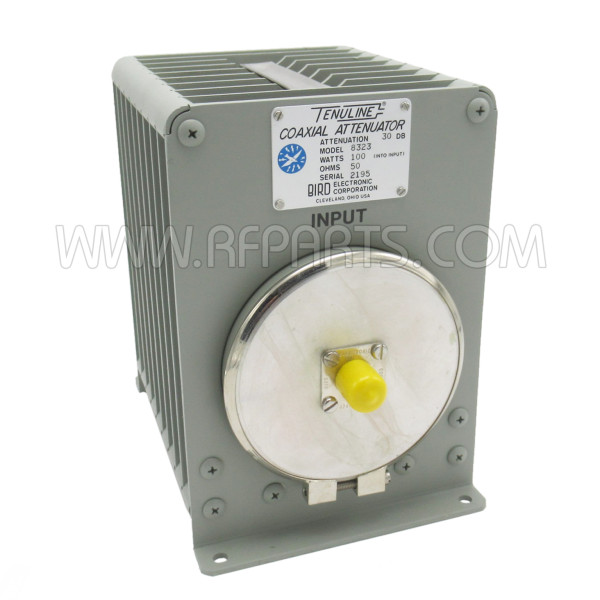

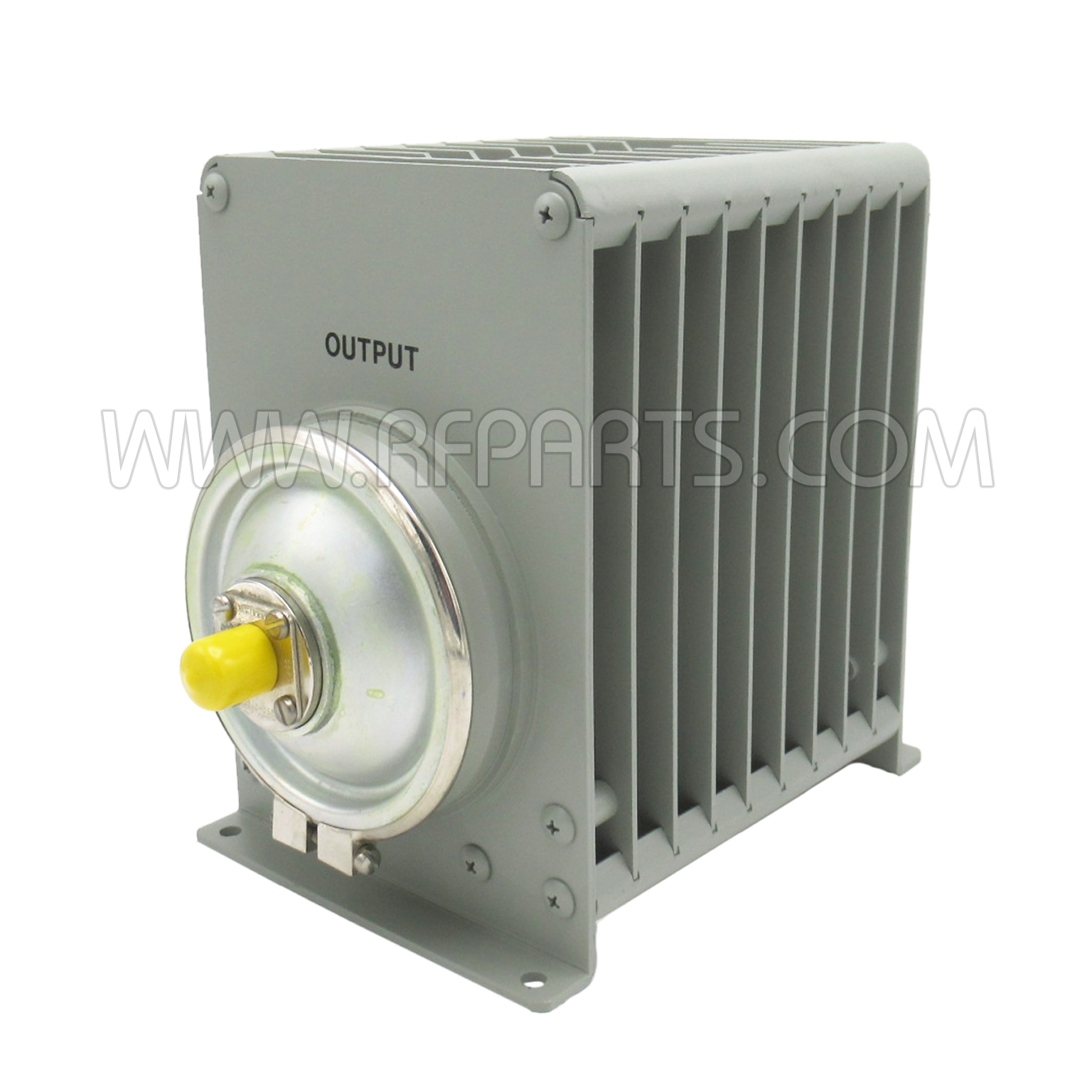

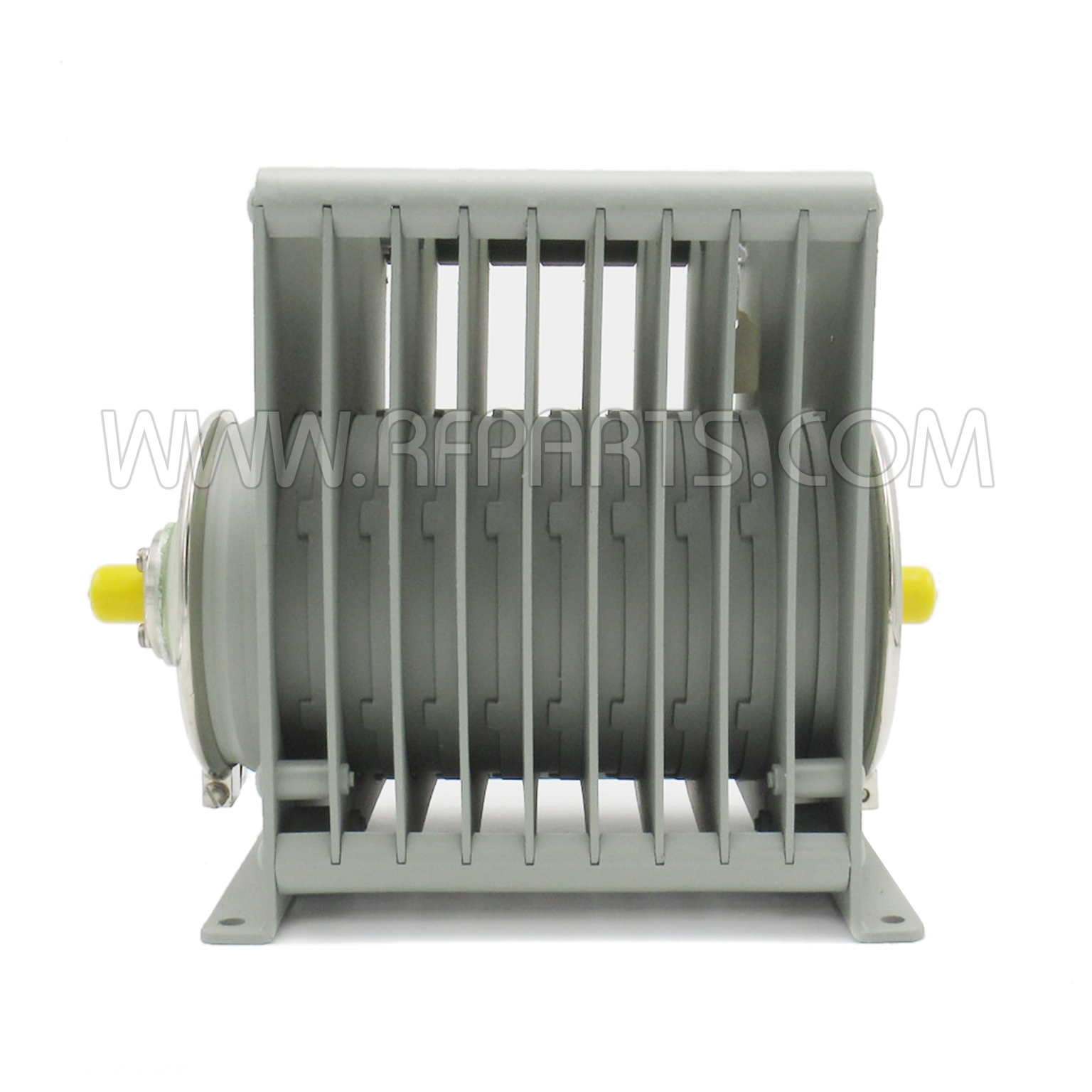

8323 Bird Tenuline® Oil Filled Attenuator 100 watts with QC Type-N Female Connectors (NOS/NIB)

8323 Bird Tenuline^® Oil Filled Attenuator 100 watts with QC Type-N Female Connectors (NOS/NIB)

• Power Rating: 100w continuous
• Frequency Range & VSWR: Input 1.1 max DC to 500 MHz
• Attenuation: 30 db
• Accuracy: ± .5 dB (±.2 dB at 30, 100, 200, 300, 400 & 500 MHz when using calibration data)
• Ambient Temperature Range: -40¡C to +45¡C
• Connectors: QC type (female N)
• Coolant: 0.35 ga. (1.3 liters) refined mineral oil
• Operating Position: Horizontal only
• Nominal Size: (includes connectors) 10-11/32" L x 8-1/2" H x 5-15/16" W

New Old Stock * New In Box * No longer vailable for export
MFR: Bird Electronics

NOTE: Picture for reference only.  This attenuator is no longer produced by Bird Electronics.
