CRS-4 Cushcraft Vintage Ringo Antenna 44-50 MHz (NOS)

CRS-4 Cushcraft Vintage Ringo Antenna 44-50 MHz (NOS)

This half-wave end-fed antenna assures better omnidirectional coverage and maximum radiated RF output. The adjustable element sections are secured with full compression stainless steel clamps. Rugged Ringos can be tower top or side mounted, and feature a direct DC ground which reduces static buildup and lightning exposure.

• Frequency Range: 44-50 MHz
• Gain: 2dB
• Power: 250 W
• Bandwidth @1.5:1 VSWR: 1.7 MHz
• Bandwidth E-plane: 73°
• Connector Type: UHF Female
• Height: 10.6ft (3.2m)
• Wind Surface Area: 0.50 ft²
• Wind Survival: 90 MPH
• Max Mast Diameter: 1-1/4 in.

New Old Stock * No loinger available for export
MFR: Cushcraft

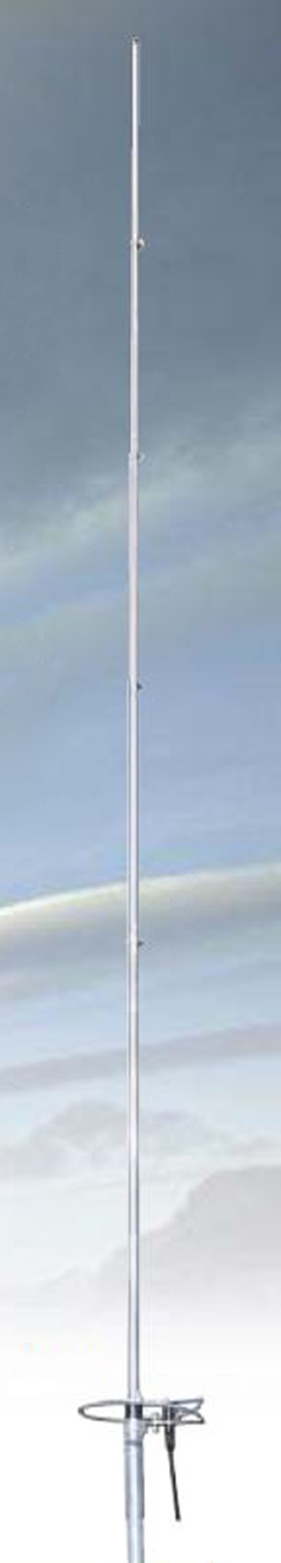

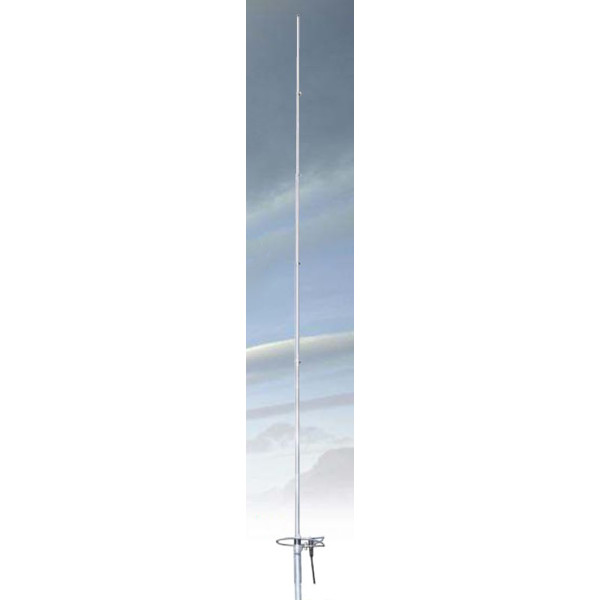

Photo for reference only

Data Sheet
