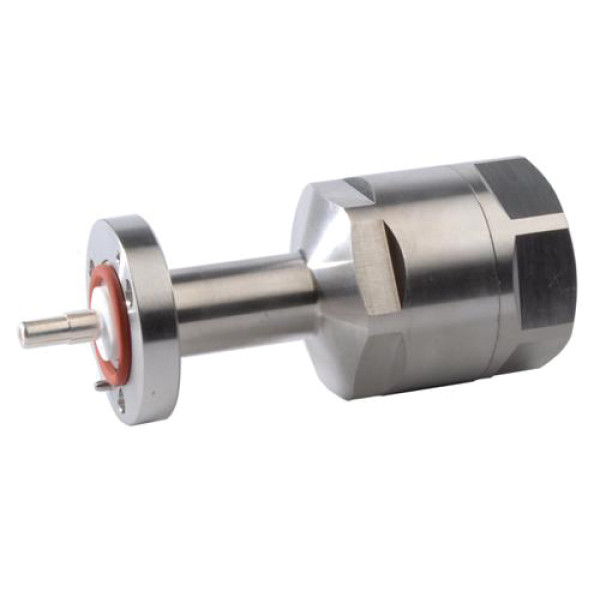

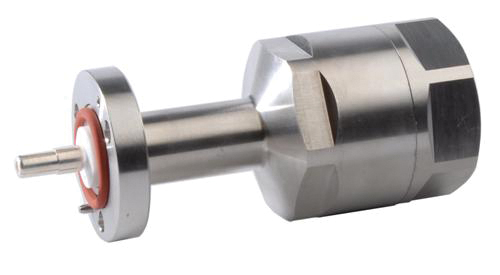

AL7E78-PS Andrew 7/8" EIA Flange Connector for AVA7-50 Cable
In Stock
$597.91
AL7E78-PS 7/8 in EIA Flange Positive Stop™ for 1-5/8 in AVA7-50, AL7-50 and LDF7-50A coaxial cable, MFR: Andrew / Commscope
Details
AL7E78-PS Andrew 7/8" EIA Flange Connector for AVA7-50 Cable
MFR: Andrew / Commscope
| General Specifications | |
| Interface | 7/8 in EIA Flange |
| Body Style | Straight |
| Brand | HELIAX® |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 2500 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -120 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 2120.00 V |
| dc Test Voltage | 6000 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 1.50 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 2.3 kW @ 900 MHz |
| Peak Power, maximum | 90.00 kW |
Insertion Loss, typical  |
0.05 dB |
| Shielding Effectiveness | -130 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Ring-flare |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 50 cycles |
| Connector Retention Tensile Force | 2224 N | 500 lbf |
| Connector Retention Torque | 13.56 N-m | 120.00 in lb |
| Pressurizable | No |
| Dimensions | |
| Nominal Size | 1-5/8 in |
| Diameter | 62.64 mm | 2.47 in |
| Length | 134.12 mm | 5.28 in |
| Weight | 1097.40 g | 2.42 lb |
| Environmental Specifications | |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Depth |
1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
| Moisture Resistance Test Method | MIL-STD-202, Method 106 |
| Mechanical Shock Test Method | MIL-STD-202, Method 213, Test Condition I |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | MIL-STD-202, Method 204, Test Condition B |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 45–1000 MHz | 1.04 | 35.00 |
| 1010–2200 MHz | 1.04 | 35.00 |
| 2210–2500 MHz | 1.07 | 30.00 |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Andrew / Commscope |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | ANDREW |
