A5TDF-PS Connector, 7/16 DIN Female for AVA5-50 Cable, MFR: Andrew

Details

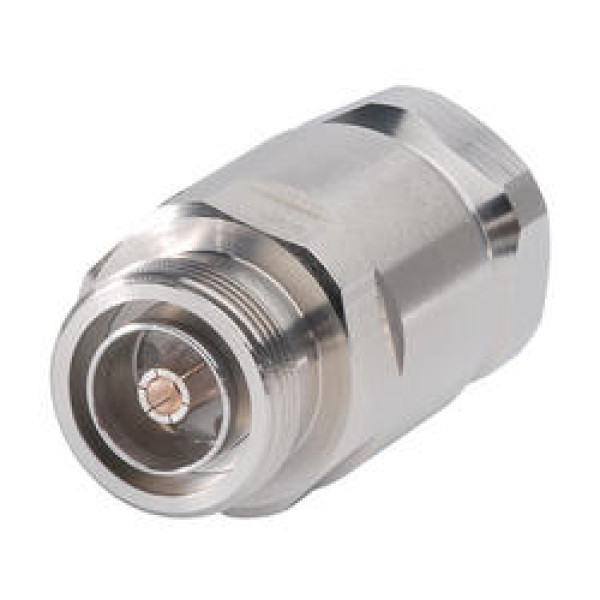

A5TDF-PS Connector, 7/16 DIN Female for AVA5-50 Cable

MFR: Andrew / Commscope

Limited Quantity Available

General Specifications
Interface	7-16 DIN Female
Body Style	Straight
Brand	HELIAX® \| Positive Stop™
Mounting Angle	Straight

Electrical Specifications
Connector Impedance	50 ohm
Operating Frequency Band	0 – 5200 MHz
Cable Impedance	50 ohm
3rd Order IMD, typical	-120 dBm @ 910 MHz
3rd Order IMD Test Method	Two +43 dBm carriers
RF Operating Voltage, maximum (vrms)	1415.00 V
dc Test Voltage	4000 V
Outer Contact Resistance, maximum	1.50 mOhm
Inner Contact Resistance, maximum	0.80 mOhm
Insulation Resistance, minimum	5000 MOhm
Average Power	3.0 kW @ 900 MHz
Peak Power, maximum	40.00 kW
Insertion Loss, typical	0.05 dB
Shielding Effectiveness	-130 dB

Outline Drawing

Click on image below to enlarge.



Mechanical Specifications
Outer Contact Attachment Method	Ring-flare
Inner Contact Attachment Method	Captivated
Outer Contact Plating	Trimetal
Inner Contact Plating	Silver
Attachment Durability	25 cycles
Interface Durability	500 cycles
Interface Durability Method	IEC 61169-4:9.5
Connector Retention Tensile Force	1334 N \| 300 lbf
Connector Retention Torque	8.13 N-m \| 72.00 in lb
Insertion Force	200.17 N \| 45.00 lbf
Insertion Force Method	IEC 61169-1:15.2.4
Pressurizable	No

Dimensions
Nominal Size	7/8 in
Diameter	37.21 mm \| 1.47 in
Length	67.01 mm \| 2.64 in
Weight	259.00 g \| 0.57 lb
