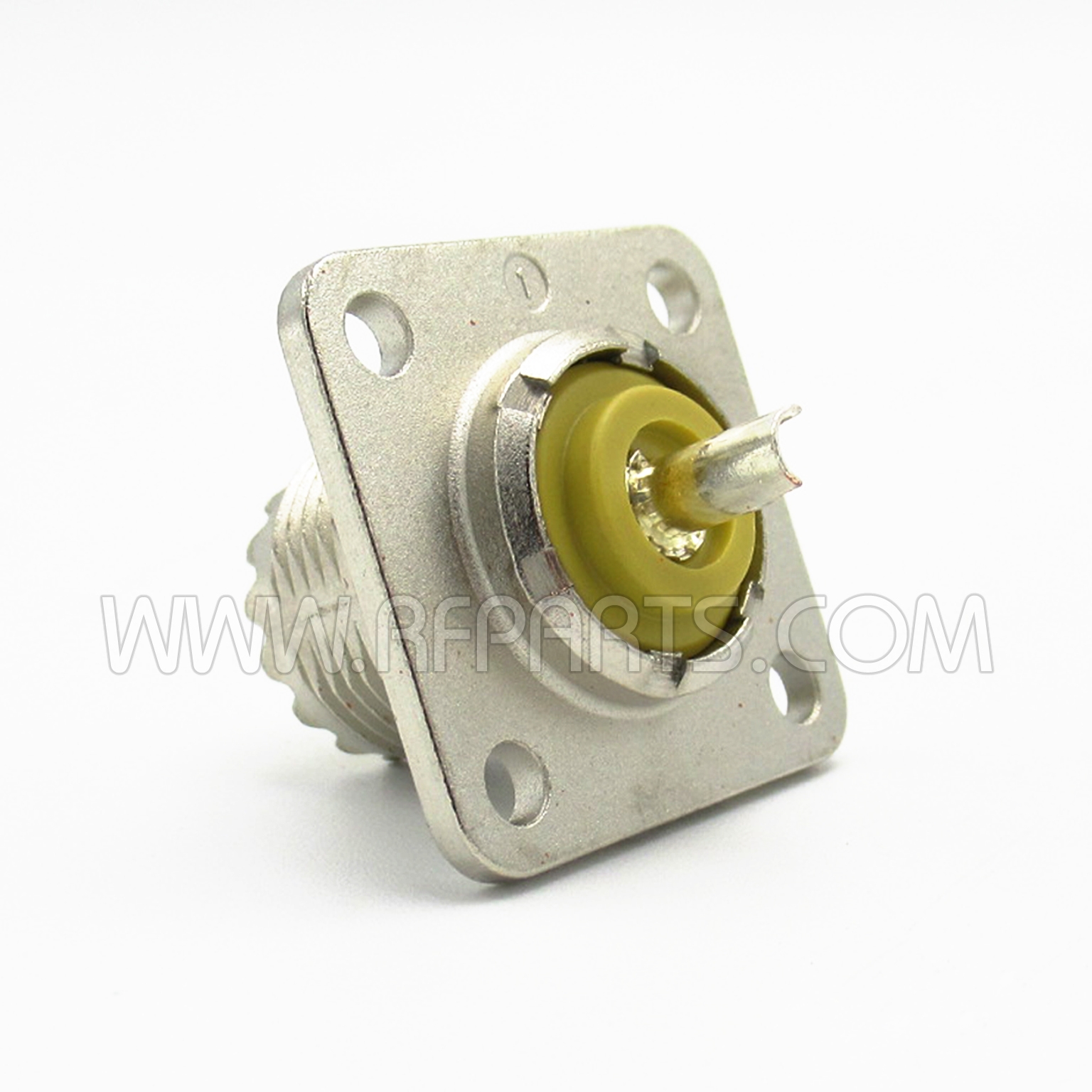

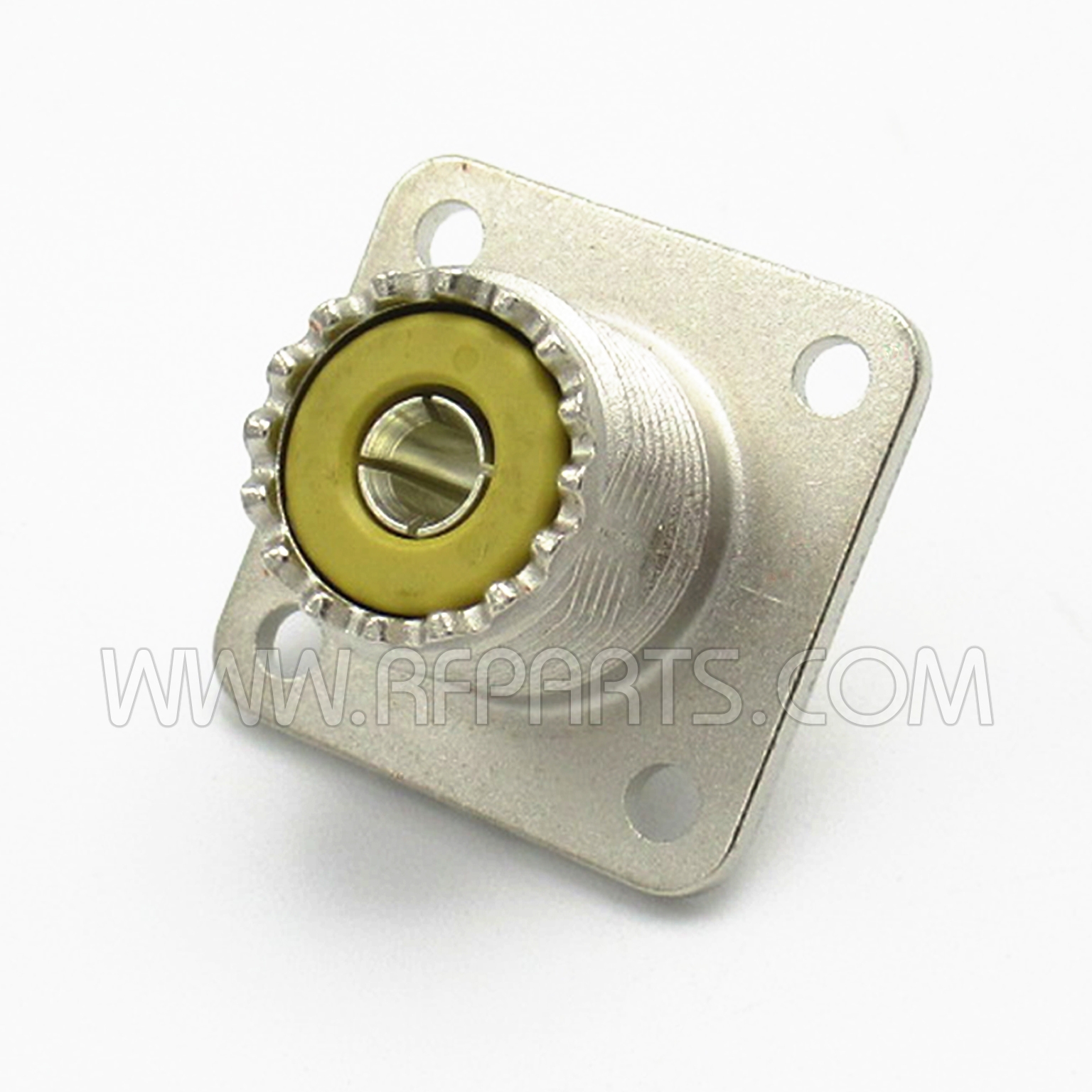

83-1R Amphenol UHF Female 4 Hole Flange Chassis Mount Connector with Solder Cup (SO239/A)
In Stock
$5.91
Body: Nickel Plated Zinc Die Cast
Center Pin: Silver Plated Brass
Dielectric: PBT Polyester
MFR: Amphenol
SKU: 83-1R
Details
83-1R Amphenol UHF Female 4 Hole Flange Chassis Mount Connector with Solder Cup (SO239/A)
MFR: Amphenol
| Body Finish | Nickel |
|---|---|
| Body Material | Zinc Die Cast |
| Cable Type (Terminates to) | Not Applicable |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Extended Dielectric Length | 0.019 Inches (0.48 mm) |
| Frequency (Max GHz) | 0.3 |
| Gender | Jack |
| IP Rating | Not Rated |
| Impedance (Ohms) | Non-Constant |
| Insulator Material | PBT |
| Isolated | No |
| Low PIM | No |
| Mil Qualified | No |
| Non Magnetic | No |
| Orientation | Straight |
| Panel Mounting Feature | 4-Hole Flange |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Termination Style | Solder Cup |
| Thread Direction | Standard |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Amphenol/RF |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | AMPHENOL |
