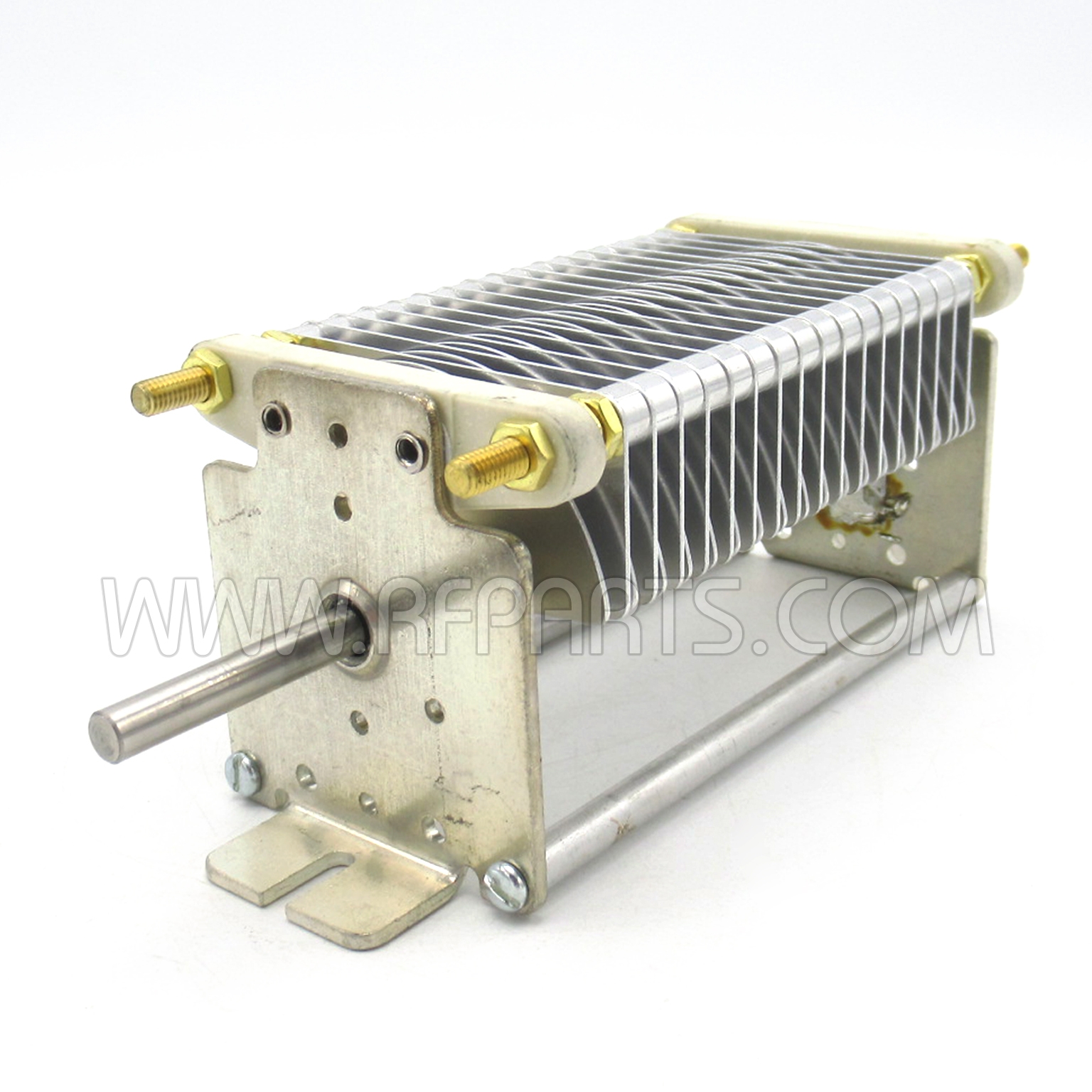

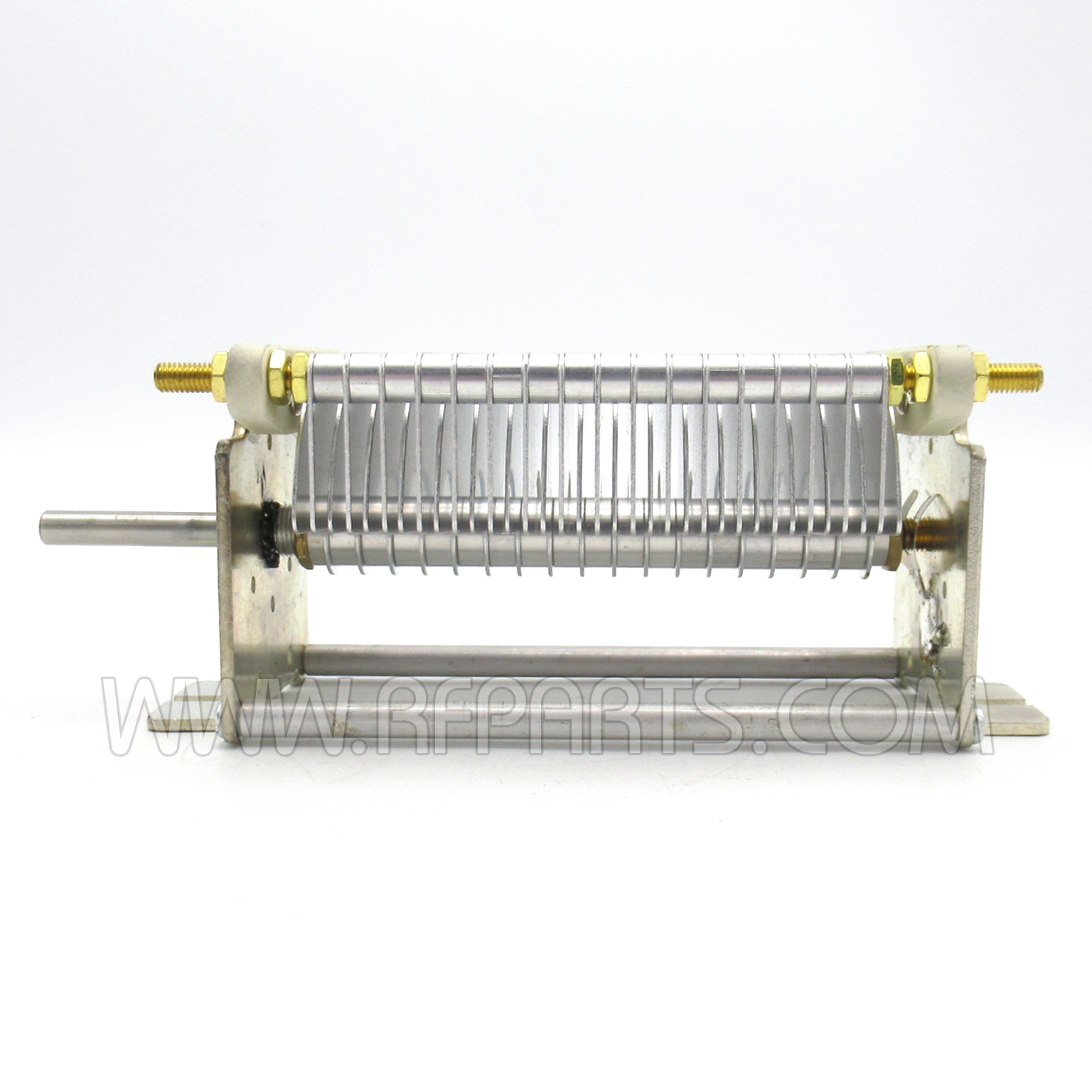

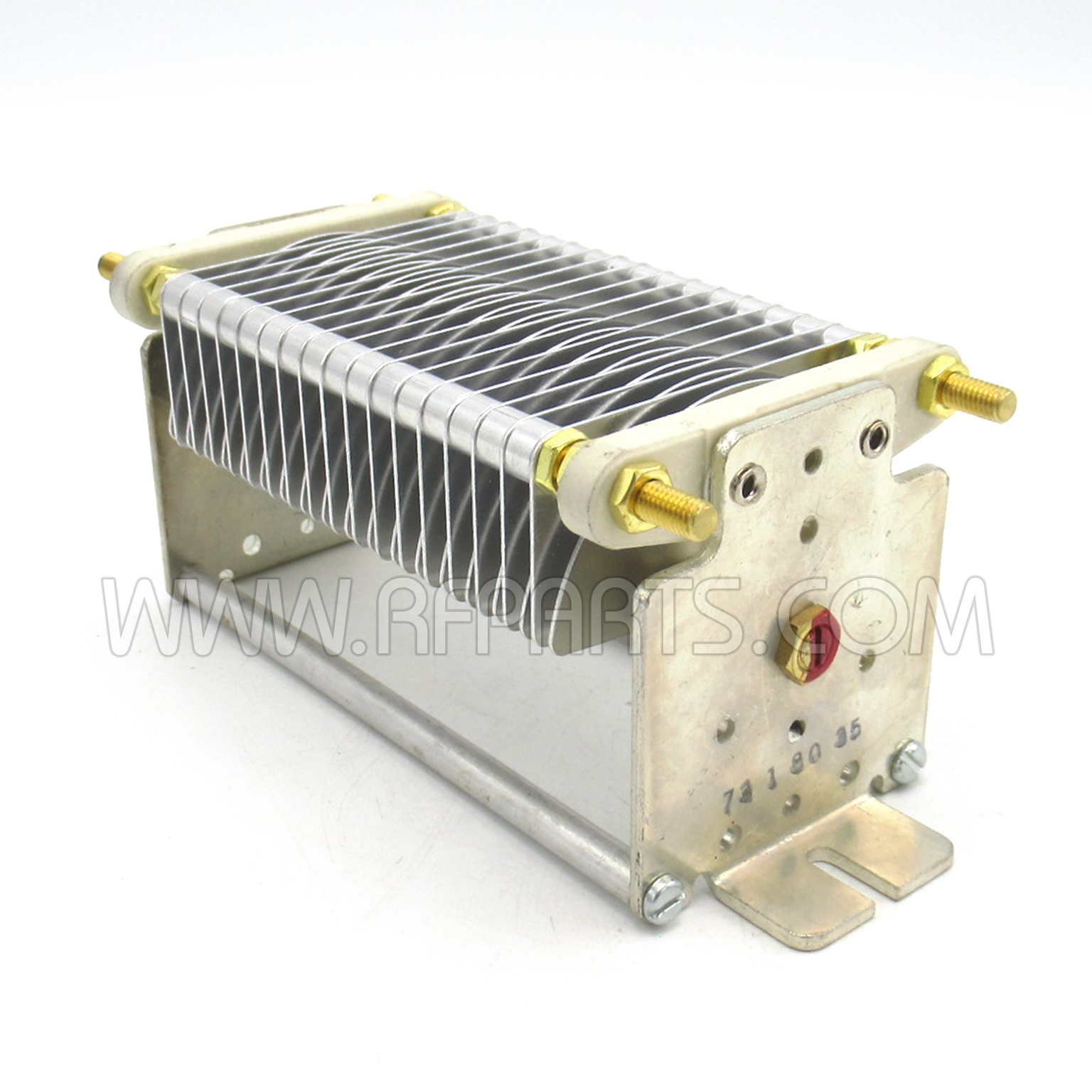

73-1-80-35 OEP Variable Capacitor 20-226pf 3.6kv (26-131)
Made in the USAIn Stock
Replacement for Heathkit SB220/SB221. Heath part number: 26-131 spacing 0.08". Tuning Capacitor
- Plates: 35, Spacing: 0.080"
- Volts: 3600 Peak
- Size: 6.2" Long x 2.665" wide x 2.6" High
- Shaft: 1/4" Round
MFR: OEP
SKU: 73-1-80-35
Details
73-1-80-35 OEP Variable Capacitor 20-226pf 3.6kv
Replacement for Heathkit SB220/SB221. Heath part number: 26-131 spacing 0.08".
The 73-1-80-35 is a high-voltage, heavy-wattage, continuous duty capacitor. Insulation between rotor and stator is achieved through 1/4" thick, high quality, military spec ceramics riveted to the plated steel end plates. These end plates are tied together by solid aluminum and brass bars, forming a rigid structure. The rotor rides on ball bearings housed between the front end plate and the stainless steel shaft. Blades are heavy .030" thick aluminum. Length dimension is measured from ends of mounting feet.
- Plates: 35, Spacing: 0.080"
- Volts: 3600 Peak
- Size: 6.2" Long x 2.665" wide x 2.6" High
- Shaft: 1/4" Round
MFR: OEP
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | OEP |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | OREN ELLIOTT |
