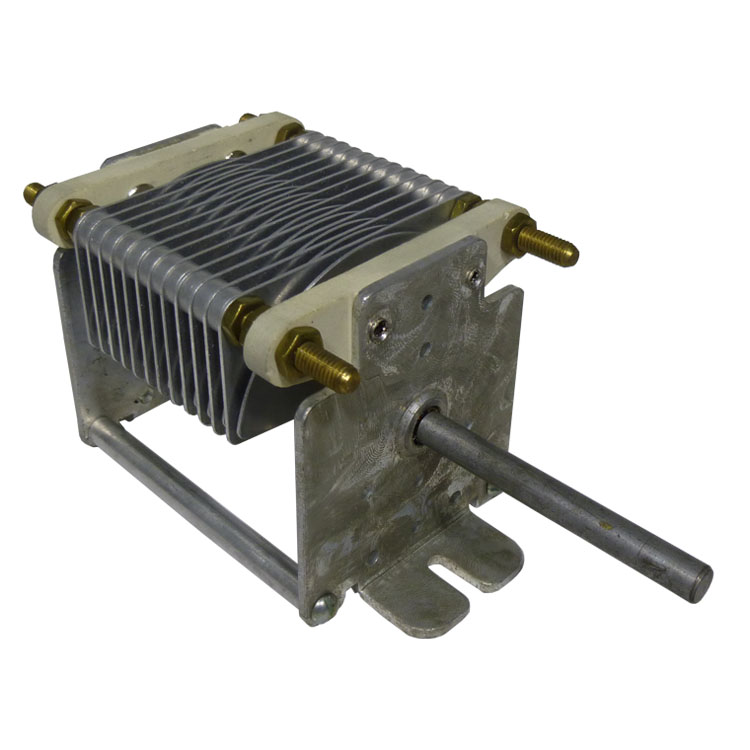

73-145-25 Variable Capacitor 20-240pf 2kv
Made in the USAIn Stock
73-145-25 Variable Capacitor, 20-240pf, 2kv, MFR: OEP
Details
73-145-25 Variable Capacitor 20-240pf 2kv
The M-73 is a high-voltage, heavy-wattage, continuous duty capacitor. Insulation between rotor and stator is achieved through 1/4" thick, high quality, military spec ceramics riveted to the plated steel end plates. These end plates are tied together by solid aluminum and brass bars, forming a rigid structure. The rotor rides on ball bearings housed between the front end plate and the stainless steel shaft. Blades are heavy .030" thick aluminum. Length dimension is measured from ends of mounting feet.
Plates: 27, Spacing: .045"
Voltage: 2000 peak volts
Size: 2.615" Wide x 2.6" High x 3.6" Long
Shaft: 1/4" Round
MFR: OEP
MFR Part #: 73-1-45-25
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | OEP |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | No |
