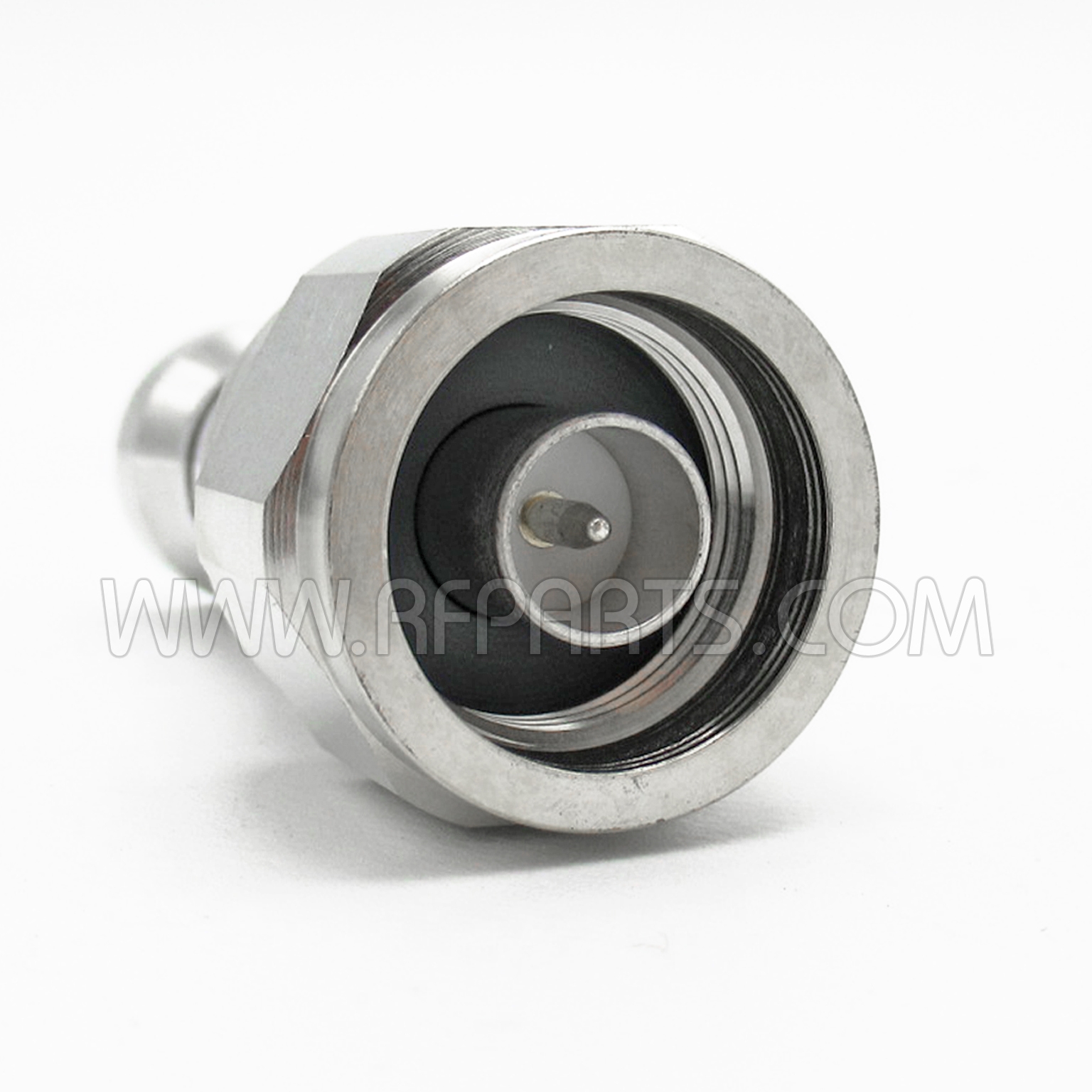

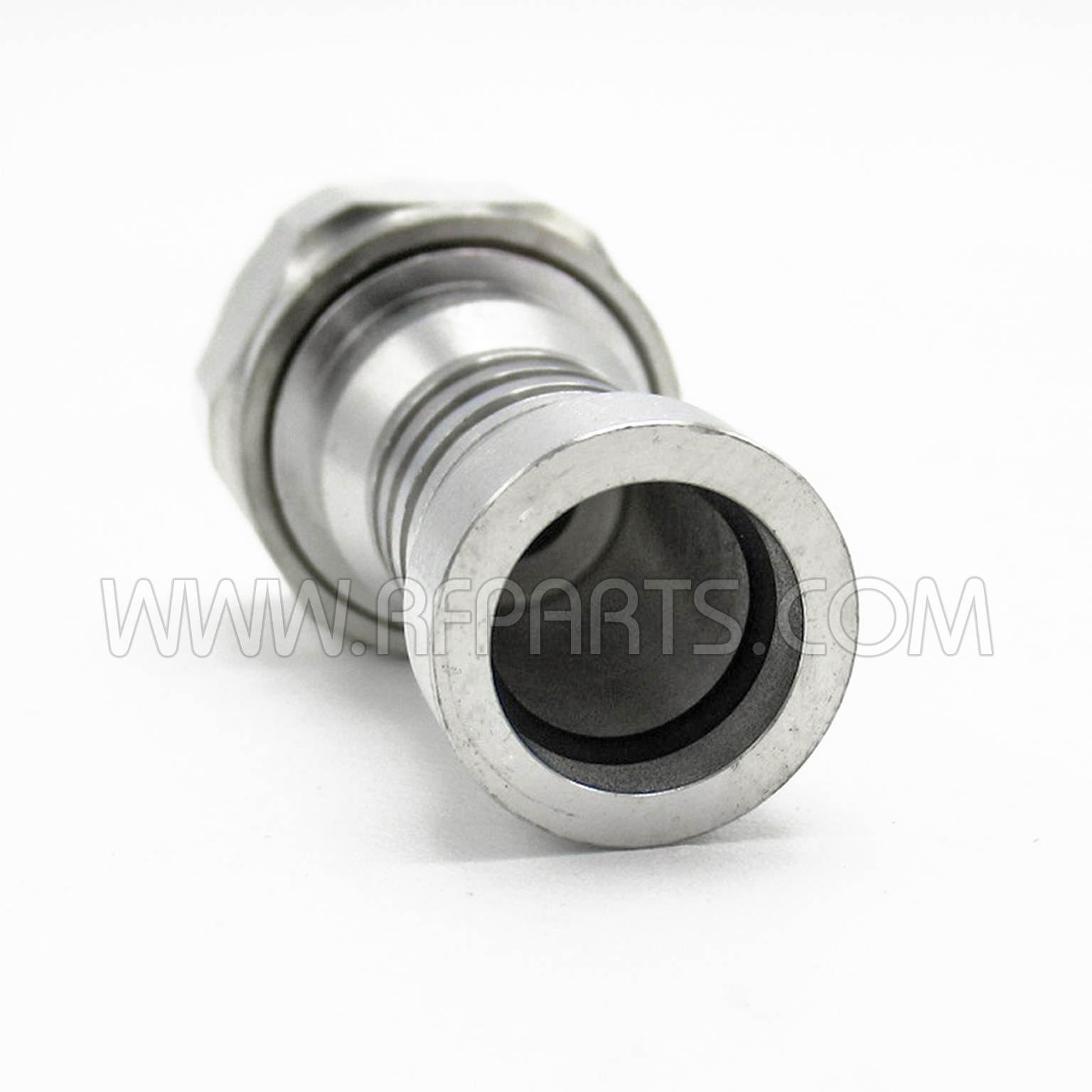

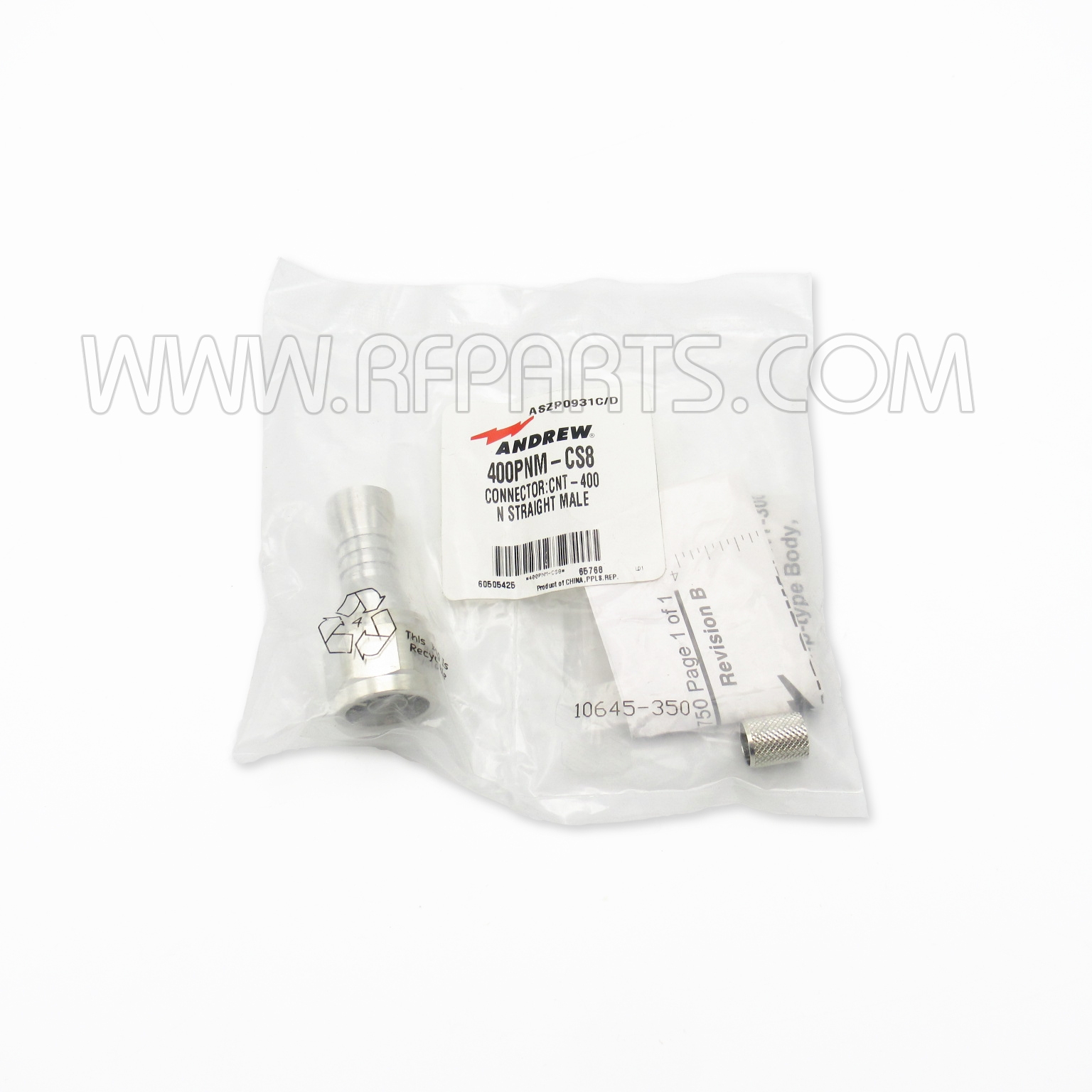

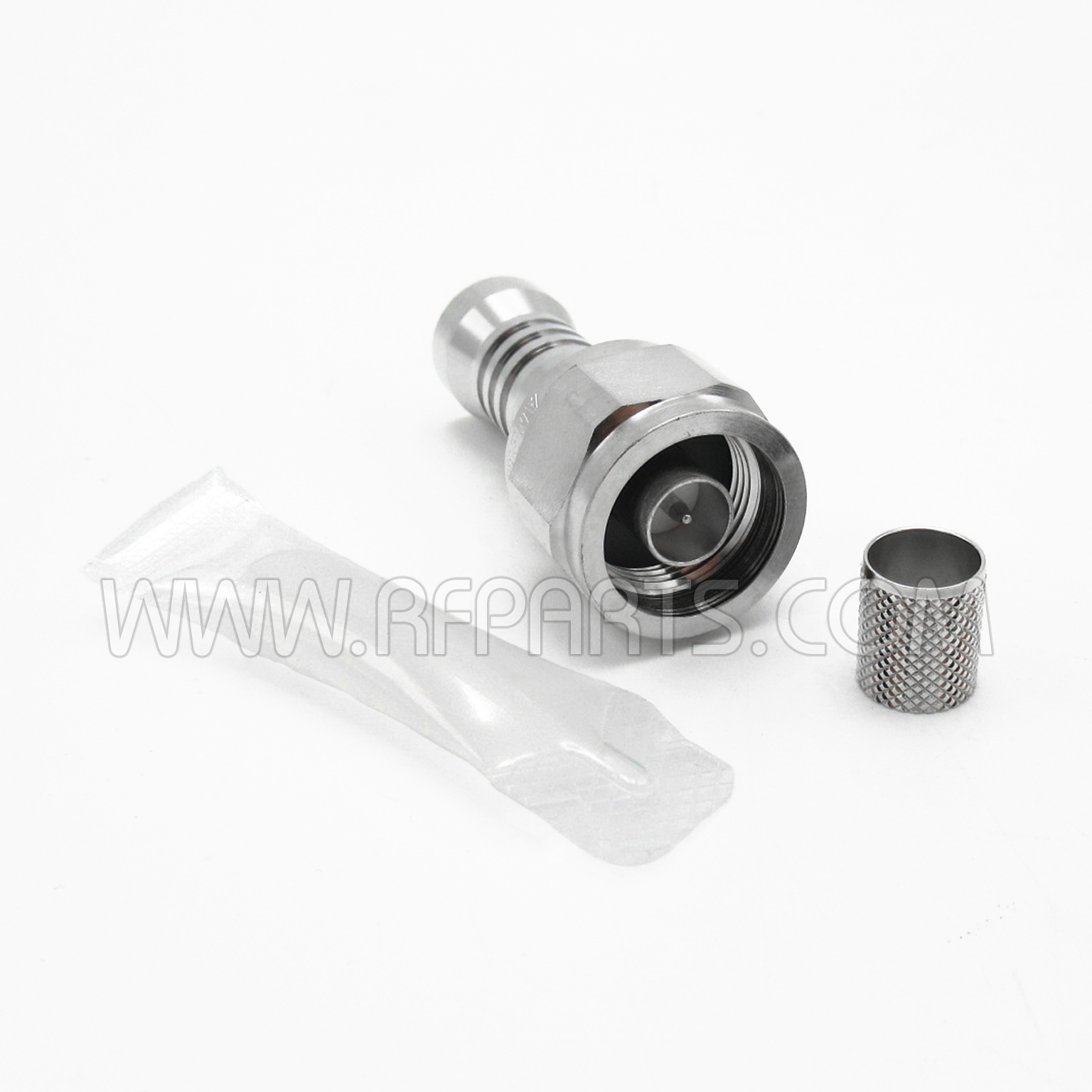

400PNM-CS8 Andrew Type-N Male Crimp Connector, CNT400
In Stock
$9.91
Type-N Male Crimp Connector, CNT400 (NOS)
MFR: Andrew
New Old Stock * No longer available for export
SKU: 400PNM-CS8
Details
400PNM-CS8 Andrew Type-N Male Crimp Connector CNT400 (NOS)
New Old Stock * No longer available for export
MFR: Andrew
Discontinued 2012
| Product Type | Braided cable connector |
| Product Brand | CNT® |
| Body Style | Straight |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | N Male |
| Outer Contact Attachment Method | Crimp |
| Outer Contact Plating | Trimetal |
| Width | 22.35 mm | 0.88 in |
| Length | 47.3 mm | 1.862 in |
| Diameter | 22.35 mm | 0.88 in |
| Nominal Size | 0.405 in |
| Insertion Loss, typical | 0.05 dB |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
| Frequency Band | VSWR | Return Loss (dB) |
| 0–3000 MHz | 1.065 | 30.05 |
| 3000–6000 MHz | 1.119 | 25.02 |
| Connector Retention Tensile Force | 330 N | 74.187 lbf |
| Connector Retention Torque | 0.56 N-m | 4.956 in lb |
| Coupling Nut Proof Torque | 1.7 N-m | 15.046 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-16:9.3.6 |
| Coupling Nut Retention Force | 450 N | 101.164 lbf |
| Coupling Nut Retention Force Method | IEC 61169-16:9.3.11 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
