4.3/10-LA-PJ TYC Right Angle 4.3/10 Male to Female Adapter DC-6GHz
In Stock
$38.91
- Impedance (Ohms): 50Ω
- Operating Temperature Range: -40 to +85°C
- Contact: Phosphor Bronze/Brass/Silver Plating
- Body: Brass/Ternary Plating
MFR: To-Conne Company, LTD.
Made in Taiwan
SKU: TYC9916
Details

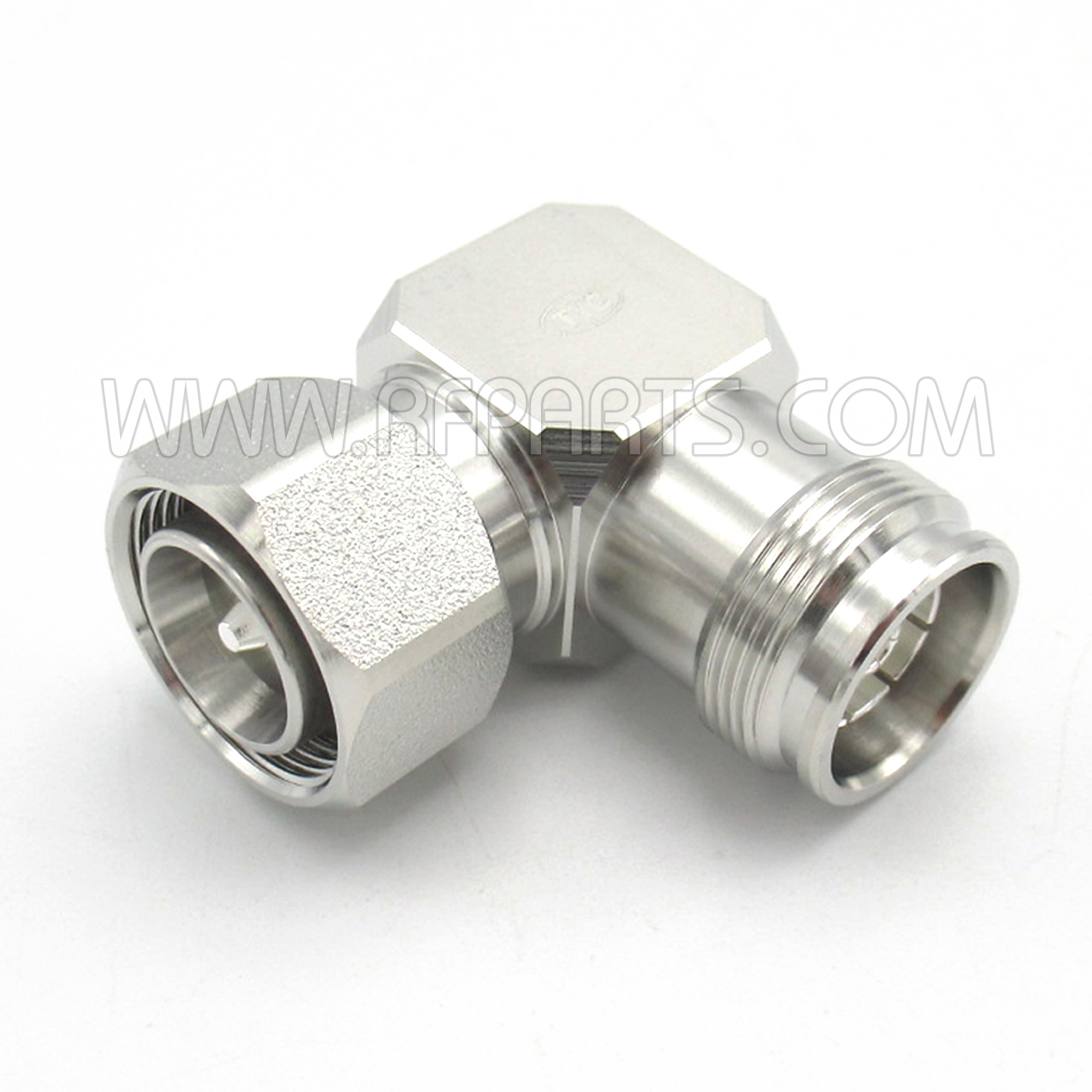

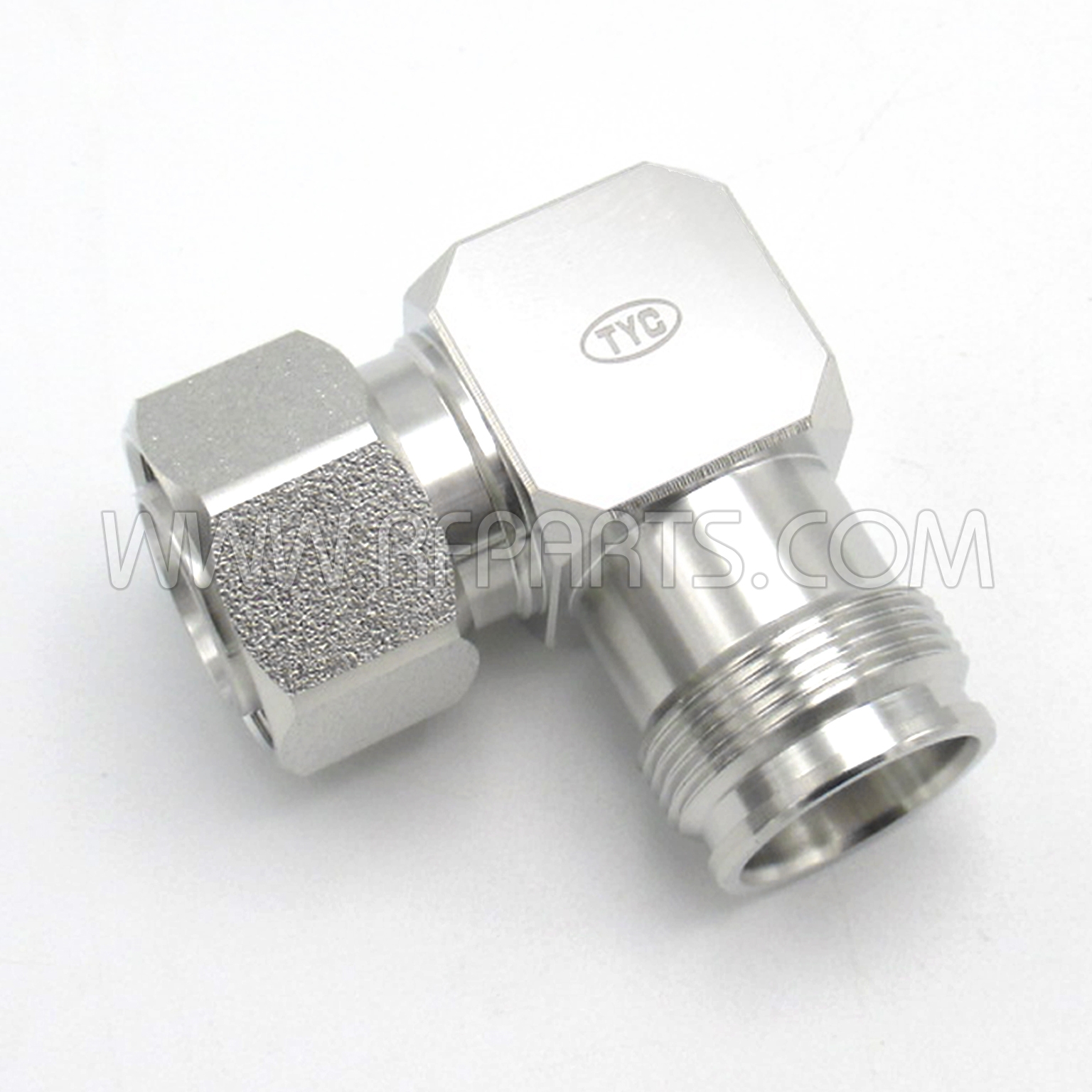

4.3/10-LA-PJ TYC Right Angle 4.3/10 Male to Female Adapter DC-6GHz
L-shaped (L-shaped, right angle) type 4.3/10 type relay adapter. The main body is ternary plating on brass. Plug-jack type.
- Connector Gender: Plug Jack
- Impedance (Ohms): 50Ω
- Rated Voltage AC: AC 1.8kV
- Operating Frequency Range: 6GHz
- Insulation Resistance: 5000MΩ or more at DC 500V
- Withstand Voltage: AC 2.5kV at 50Hz for 1 minute
- Contact Resistance: 1 mΩ or less
- V.S.W.R: 1.2 or less (DC to 6GHz)
- Operating Temperature Range: -40 to +85°C
- Contact: Phosphor Bronze/Brass/Silver Plating
- Body: Brass/Ternary Plating
MFR: To-Conne Company, LTD.
Made in Taiwan
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | To-Conne Company, LTD. |
