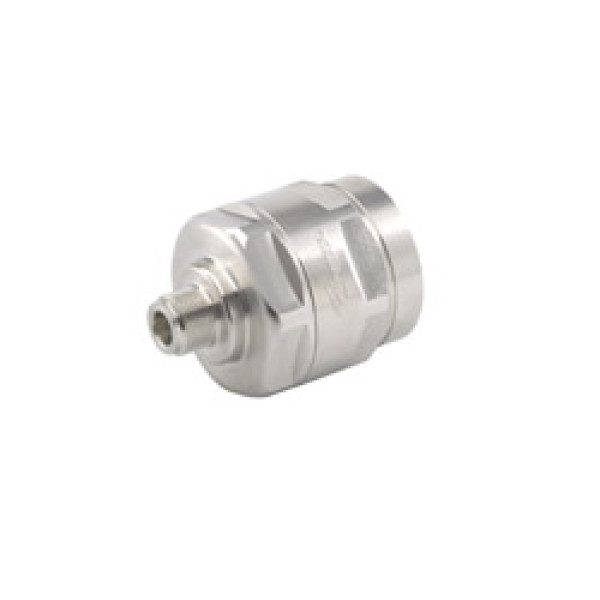

158EZNF Type N Female Connector, 1-5/8" for AVA7-50 cable, Andrew
In Stock
$172.95
158EZNF Type N Female EZfit® Connector for 1-5/8 in FXL-1873 and AVA7-50 cable, MFR: Andrew / Commscope
Details
158EZNF Type N Female EZfit® for 1-5/8 in FXL-1873 and AVA7-50 cable
MFR: Andrew / Commscope
NOTE: THIS IS SPECIAL ORDER. NORMAL DELIVERY IS 2-3 WEEKS ARO.
| General Specifications | |
| Interface | N Female |
| Body Style | Straight |
| Brand | EZfit® |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 2700 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 707.00 V |
| dc Test Voltage | 2000 V |
| Outer Contact Resistance, maximum | 0.30 mOhm |
| Inner Contact Resistance, maximum | 2.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 0.6 kW @ 900 MHz |
| Peak Power, maximum | 10.00 kW |
Insertion Loss, typical  |
0.05 dB |
| Shielding Effectiveness | -130 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Clamp |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Connector Retention Tensile Force | 2224 N | 500 lbf |
| Connector Retention Torque | 13.56 N-m | 120.00 in lb |
| Insertion Force | 66.72 N | 15.00 lbf |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 |
| Pressurizable | No |
| Dimensions | |
| Nominal Size | 1-5/8 in |
| Diameter | 63.10 mm | 2.48 in |
| Length | 70.00 mm | 2.76 in |
| Weight | 536.90 g | 1.18 lb |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Depth |
1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | IEC 60068-2-6 |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 45–400 MHz | 1.02 | 41.50 |
| 401–805 MHz | 1.03 | 37.60 |
| 806–960 MHz | 1.03 | 36.90 |
| 961–1709 MHz | 1.03 | 35.70 |
| 1710–2170 MHz | 1.04 | 33.50 |
| 2170–2399 MHz | 1.05 | 31.70 |
| 2400–2700 MHz | 1.06 | 30.80 |
